Toto MONO TX449SM Manual

SPECIFICATIONS

150±11
G½
291

OPERATING CONDITIONS

1. Hot & Cold Water supply pressure :
Minimum 0.05 MPa. - Maximum 0.75 MPa.
2. Hot water supply temperature shall be higher by 10
least, than desired temperature of mixed water.
(Recommendation: Hot water supply temperature = 60
3. Hot water supply pressure shall be the same or lower than
cold water supply .
Ensure that water supply is clean ( No Sand, Dirt, Etc.).
4.

MAINTENANCE

All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning

INSTALLATION

1 2
MOUNT CONNE CTORS
PARALLEL WITH THE WALL
Hot Cold
150±11
Water
Water
Supply Supply
150
Leg
Template
Check leg position with template
S060032R

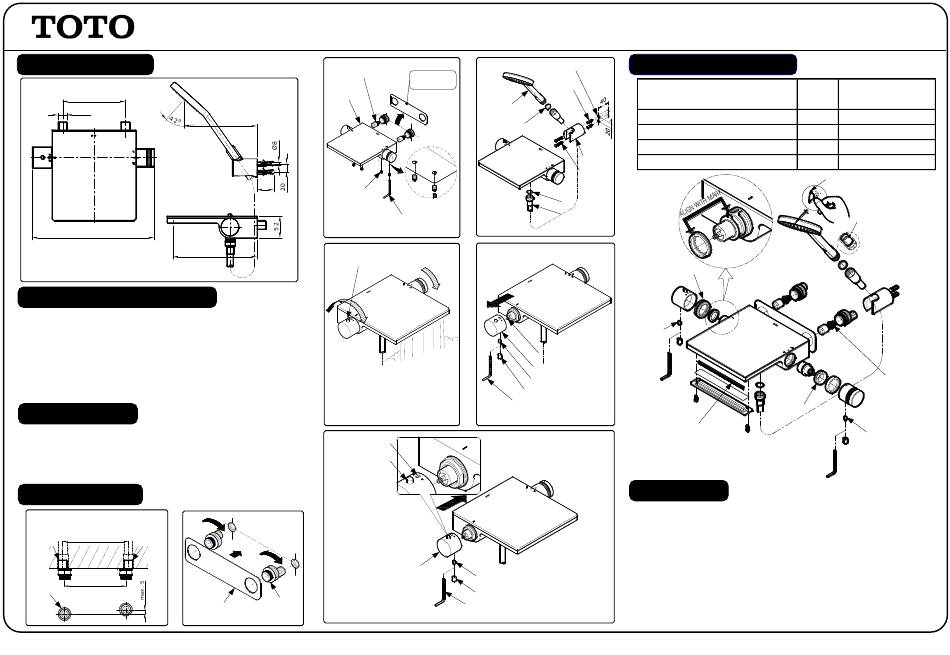

"MONO" THERMOSTAT BATH & SHOWER SET TX449SM
3
Fillter
Body
173
40
Bolt
5
201
Safety Knob
o
C. at
o
C)
Open full the stop valve and check the water
temperature 40ºC. When water temperature not
40ºC, set the water temperature until get 40ºC
then follow step 6 and 7.
7
40
Safety Knob
Leg
Adjust the safety knob on the handle with number 40 in the body, then install the handle
4
2 X Ø8
Holes
Remove the
Template
Sleeve
Anchor
Hand
Shower
Packing
Packing
Hex. Key
Fexible Hose
6
Spindle
o
40 C
Handle
Bolt
Cap
Hex. Key
If get the water temper ature at 40ºC, release the
handle. Make sure the spindle not rotated.
Handle
Bolt
Cap
Hex. Key

TROUBLESHOOTING

PROBLEM
Unsatisfactory spray
Flow rate unsatisfactory
Water leaks around the handle
Hanger
Handle is loose
Screw
4. NUT
7. BOLT
3. STRAINER
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. Press safety knob turn left to increase temperature over 40
3. Please don't open the thermostat cartridge, because it cause to
unstabilize temperature in this product.
4. Flow Regulator should not be remove because it could damage
the system
5. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the basic
installation principles are the same.
CHECK
SOLUTION
POINT
1
Clean
2 , 3 Remove and clean
4, 5 Tighten
6 , 7 Tighten
1. NOZZLES
Flow Regulator
Inside
(Don t Remove)
2. FILTER
5. NUT
6. BOLT
o
C.
R7
