Icron USB 3-2-1 Raven™ 3104 Pro
4-Port USB 3.2, 100m CAT 6a/7
Point-to-Point Extender System
Quick
Start
Guide
Package Contents:
ƒ Icron USB 3-2-1 Raven 3104 Pro LEX
ƒ Icron USB 3-2-1 Raven 3104 Pro REX
ƒ USB 3.2 Gen 1 Cable
ƒ 24V 1A AC Adapter
ƒ 24V 2.71A AC Adapter
ƒ 2x Country Specific Power Cords
ƒ Quick Start Guide
For additional details about
configuring and operating your
Raven 3104 Pro, refer to the complete
online user guide at:
www.icron.com/3104pro
For technical support visit:
www.icron.com/support
Before you get started, ensure that all the drivers required for your USB device(s) are installed.
LEX = Local Extender, REX = Remote Extender
1

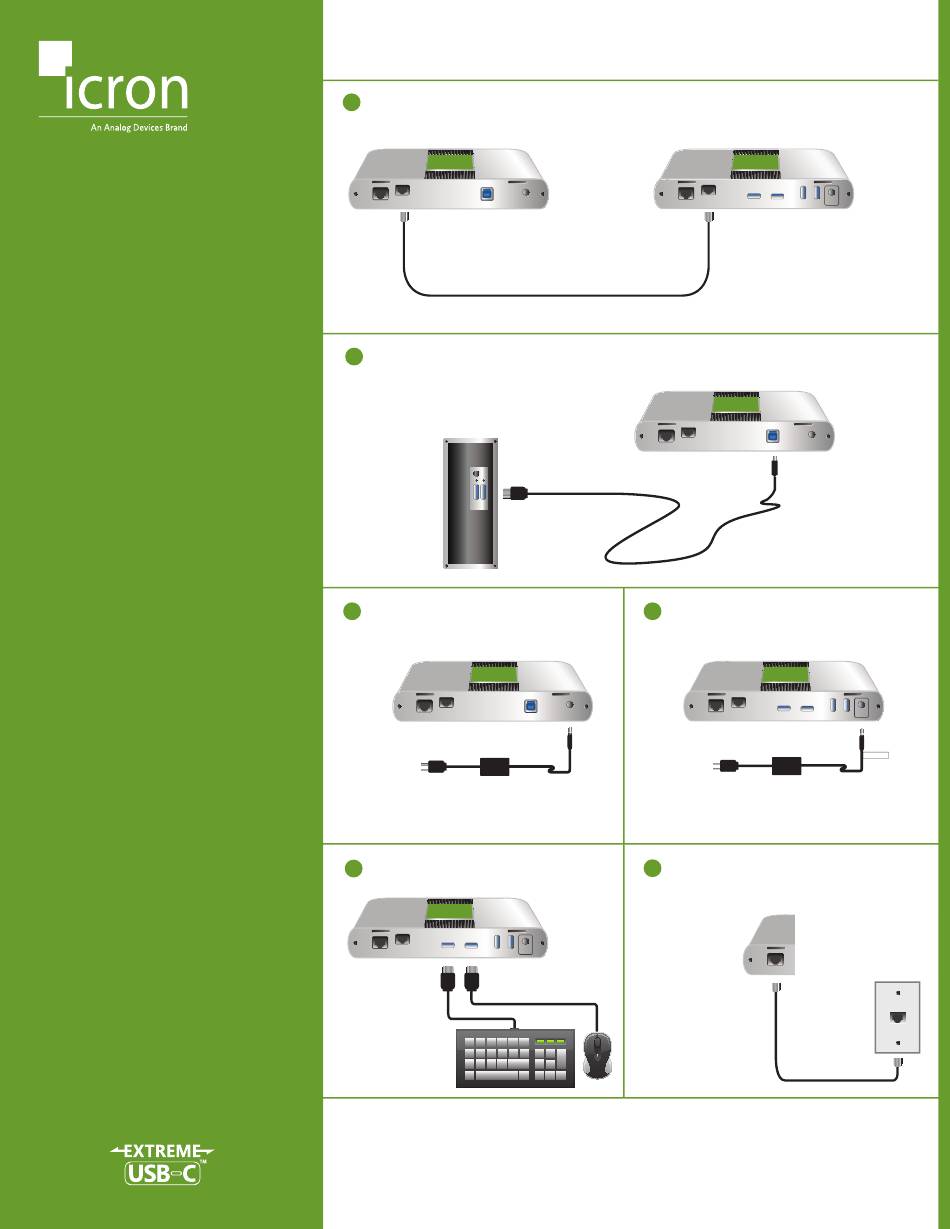

Place extenders where desired and connect the CAT 6a/7 cable to the Link ports on the
1
1
LEX and REX.
LEX (back view)
Link
LAN
USB
(CAT Cable not included)
Max 100m CAT 6a/7 Cable
Connect the LEX to the computer's USB 3 port using the included USB cable.
2
Computer
3 3
Power the LEX with the included 24V 1A
AC adapter and tighten the locking ring.
LEX (back view)
Link
LAN
24V 1A AC adapter
Attach USB device(s) to the REX.
5
REX (back view)
Link
LAN
USB
USB
USB
USB
Includes the ExtremeUSB-C™ suite of features:
▪ Transparent USB extension supporting USB 3, 2 and 1
▪ True plug and play; no software drivers required
▪ Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
24V 1A
LAN
Link
LAN
3 4
4
Power the REX with the included 24V 2.71A
AC adapter and tighten the locking ring.
USB
24V 1A
Optional: Connect LEX and REX LAN ports
6
to a network or device as necessary.
24V 2.71A
REX (back view)
Link
USB
USB
USB
USB
24V 2.71A
LEX (back view)
USB
24V 1A
REX (back view)
Link
LAN
USB
USB
USB
USB
24V 2.71A
DC 24V / 2.71A
24V 2.71A AC adapter
LEX/REX LAN Port
LAN
