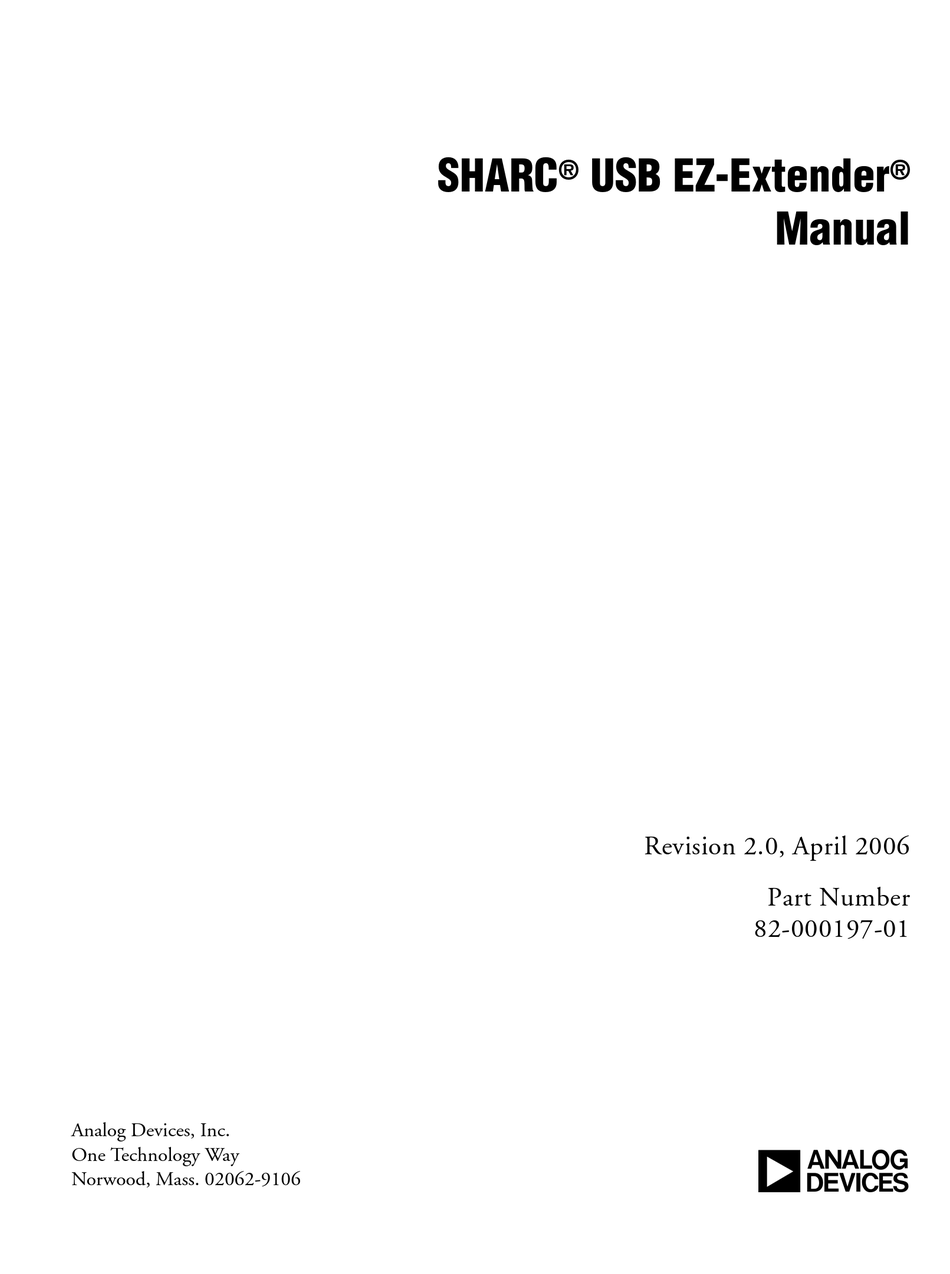

SHARC
USB EZ-Extender
®
®
Manual
Revision 2.0, April 2006
Part Number
82-000197-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHARC 82-000197-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices SHARC 82-000197-01

Summary of Contents for Analog Devices SHARC 82-000197-01

  • Page 1 SHARC USB EZ-Extender ® ® Manual Revision 2.0, April 2006 Part Number 82-000197-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...

  • Page 2: Limited Warranty

    Analog Devices or from an authorized dealer. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...

  • Page 3: Regulatory Compliance

    European EMC directive 89/336/EEC (inclusive 93/68/EEC) and, therefore, carries the “CE” mark. The SHARC USB EZ-Extender had been appended to Analog Devices Development Tools Technical Construction File referenced “DSPTOOLS1” dated December 21, 1997 and was awarded CE Certifi- cation by an appointed European Competent Body and is on file.

  • Page 5: Table Of Contents

    CONTENTS PREFACE Product Overview ... viii Purpose of This Manual ... ix Intended Audience ... ix Manual Contents ... ix What’s New in This Manual ... x Technical or Customer Support ... x Supported Products ... xi Product Information ... xi Related Documents ...
  • Page 6 CONTENTS USB EZ-EXTENDER BILL OF MATERIALS USB EZ-EXTENDER SCHEMATIC Title Page ... B-1 Expansion Interface ... B-2 Bus Switches ... B-3 USB Interface ... B-4 INDEX SHARC USB EZ-Extender Manual...

  • Page 7: Preface

    Visu- alDSP++ offers a powerful programming tool with new flexibility that significantly decreases time required to port software code to a processor, reducing time-to-market. To learn more about Analog Devices development software, go to http://www.analog.com/processors/tools/ SHARC USB EZ-Extender Manual...

  • Page 8: Product Overview

    Product Overview Product Overview The SHARC USB EZ-Extender is a separately sold extension board that plugs onto the expansion interface of the ADSP-21262, ADSP-21364, or ADSP-21369 EZ-KIT Lite evaluation system. The extension board aids the design and prototyping phases of ADSP-21262, ADSP-21364, or ADSP-21369 processor targeted applications.

  • Page 9: Purpose Of This Manual

    Intended Audience This manual is a user’s guide and reference to the SHARC USB EZ-Extender. Programmers who are familiar with the Analog Devices SHARC processor architecture, operation, and development tools are the primary audience for this manual. Programmers who are unfamiliar with VisualDSP++ or EZ-KIT Lite eval-...

  • Page 10: What's New In This Manual

    Appendix B now is part of the online Help. The PDF version of the SHARC USB EZ-Extender Manual is located in the Docs\EZ-KIT Lite Manuals tively, the book can be found on the Analog Devices Web site: www.analog.com/processors What’s New in This Manual This edition of the SHARC USB EZ-Extender Manual has been updated for the latest revision of VisualDSP++.

  • Page 11: Supported Products

    • Contact your Analog Devices, Inc. local sales office or authorized distributor • Send questions by mail to: Analog Devices, Inc. One Technology Way P.O. Box 9106 Norwood, MA 02062-9106 Supported Products The SHARC USB EZ-Extender is designed as an extension board to the ADSP-21262, ADSP-21364, and ADSP-21369 EZ-KIT Lite evaluation systems.
  • Page 12 Product Information Table 1. Related Processor Publications Title ADSP-21262 SHARC Microprocessor Datasheet ADSP-21364 SHARC Microprocessor Datasheet ADSP-21369 SHARC Processor Datasheet ADSP-2126x SHARC DSP Core Manual ADSP-2126x SHARC DSP Peripherals Manual ADSP-2136x SHARC Processor Hardware Refer- ence for the ADSP-21363/4/5/6 Processors ADSP-2136x SHARC Processor Hardware Refer- ence for ADSP-21367/8/9 Processors ADSP-21160 SHARC DSP Instruction Set Ref-...
  • Page 13 Table 2. Related VisualDSP++ Publications (Cont’d) Title VisualDSP++ Linker and Utilities Manual VisualDSP++ Loader and Utilities Manual Visit the Technical Library Web site to access all processor and tools man- uals and datasheets: http://www.analog.com/processors/resources/technicalLibrary SHARC USB EZ-Extender Manual Description Description of the linker function and com- mands Description of the loader function and com- mands...

  • Page 14: Notation Conventions

    Notation Conventions Notation Conventions Text conventions used in this manual are identified and described as follows. Example Description Alternative required items in syntax descriptions appear within curly {this | that} brackets and separated by vertical bars; read the example as that Optional items in syntax descriptions appear within brackets and sepa- [this | that]...

  • Page 15: System Architecture

    1 USB EZ-EXTENDER INTERFACE This chapter provides the setup procedures for both the SHARC USB EZ-Extender and EZ-KIT Lite (ADSP-21262, ADSP-21364, or ADSP-21369) and describes the USB interface the extender supports. USB EZ-Extender Setup It is very important to set up all of the components of the system contain- ing the USB EZ-Extender before applying power to that system.

  • Page 16: Usb Software Documentation

    USB 2.0 Interface 4. Set the jumper on the USB EZ-Extender board. Use the block dia- gram in Figure 2-1 on page 2-1 Select Jumper (JP1)” on page 5. Set the switches on the EZ-KIT Lite board. If not already, familiar- ize yourself with the documentation and schematics of the EZ-KIT Lite (see “Related...
  • Page 17 You can reset the NetChip 2272 device by asserting • on the ADSP-21262 and ADSP-21364 processors FLAG2 • on the ADSP-21369 processor FLAG0 The USB interrupt request pin (IRQ) line of the extender connects to on the ADSP-21262, ADSP-21364, and ADSP-21369 processors. FLAG1 This flag pin may be used for push buttons or LEDs on the respective EZ-KIT Lites;...
  • Page 18 USB 2.0 Interface SHARC USB EZ-Extender Manual...

  • Page 19: Usb Ez-Extender Hardware Reference

    2 USB EZ-EXTENDER HARDWARE REFERENCE This chapter describes the hardware design of the USB EZ-Extender. The following topics are covered. • “System Architecture” on page 2-1 Describes the extension board’s configuration. • “Processor Select Jumper (JP1)” on page 2-2 Describes the configuration jumper’s functionality. System Architecture A block diagram of the SHARC USB EZ-Extender is shown in Figure 2-1.

  • Page 20: Processor Select Jumper (Jp1)

    Processor Select Jumper (JP1) Processor Select Jumper (JP1) Before using the SHARC USB EZ-Extender, follow the steps in EZ-Extender Setup” on page Figure 2-2 shows the location of the processor select jumper two-pin jumper can be placed on the respective jumper header for differ- ent functionality.
  • Page 21 Table 2-1 describes the jumper settings and functionality. The jumper, by default, must have no jumpers on any of its pins. Table 2-1. JP1 Settings EZ-KIT Lite ADSP-21262/ADSP-21364 ADSP-21369 When using the extender with an ADSP-21262 or ADSP-21364 EZ-KIT Lite, you must not place any jumpers on jumper on Lite.
  • Page 22 Processor Select Jumper (JP1) SHARC USB EZ-Extender Manual...
  • Page 23 A USB EZ-EXTENDER BILL OF MATERIALS The bill of materials corresponds to page B-1. Please check the latest schematic on the Analog Devices Web site: http://www.analog.com/Processors/Processors/DevelopmentTools/tec hnicalLibrary/manuals/DevToolsIndex.html#Evalua- tion%20Kit%20Manuals Ref. Qty. Description SN74LVC1G32 SOT23-5 SN74LVC1G08 SOT23-5 NET2272 TQFP64 PI3B16234 TSSOP56 30MHZ OSC010...
  • Page 24 Ref. Qty. Description 0.05 45x2 CON018 IDC 2X1 IDC2X1 600 100MHZ 500MA 1206 47.0K 1/10W 1% 0805 42 100MHZ 4A 0805 0.47UF 16V 10% 0805 10UF 6.3V 10% 0805 0.01UF 16V 10% 0402 10K 1/16W 5% 0402 10PF 50V 5% 0805 1.5K 1/10W 5% 0603...
  • Page 25 Ref. Qty. Description 1M 1/10W 5% 0603 GREEN-SMT LED001 SHARC USB EZ-Extender Manual USB EZ-Extender Bill Of Materials Reference Manufacturer Designators VISHAY LED1 PANASONIC Part Number CRCW06031M00FNEA LN1361CTR...
  • Page 26 SHARC USB EZ-Extender Manual...
  • Page 27 SHARC USB EZ-EXTENDER Schematic ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD SHARC USB EZ-EXTENDER Title TITLE Size Board No. A0197-2005 1.1B Date 4-24-2006_10:01 Sheet...

  • Page 28: Expansion Interface

    DSP_A0 DSP_A1 DSP_A2 DSP_A3 DSP_A4 DSP_A5 DSP_A6 DSP_A7 DSP_A8 DSP_A9 DSP_A10 DSP_A11 DSP_A12 DSP_A13 DSP_A14 DSP_A15 DSP_D0 DSP_D1 DSP_D2 DSP_D3 DSP_D4 DSP_D5 DSP_D6 DSP_D7 DSP_D8 DSP_D9 DSP_D10 DSP_D11 DSP_D12 DSP_D13 DSP_D14 DSP_D15 CON018 EXPANSION INTERFACE (TYPE A) 3.3V DSP_D[0:15] DSP_A[0:15] 0402 0402 0402...

  • Page 29: Bus Switches

    DSP_A[0:15] ADDRESS AND DATA ARE MULTIPLEXED ON THE 262/364 DSP_A0 DSP_A1 DSP_A2 DSP_A3 DSP_A4 DSP_A5 DSP_A6 DSP_A7 DSP_A8 USB_D0 DSP_A9 10B1 USB_D1 DSP_A10 11B1 USB_D2 DSP_A11 12B1 USB_D3 DSP_A12 13B1 USB_D4 DSP_A13 14B1 USB_D5 DSP_A14 15B1 USB_D6 DSP_A15 16B1 USB_D7 USB_D8 DSP_D[0:15] DSP_D0...

  • Page 30: Usb Interface

    USB_A[0:4] USB_A0 USB_A1 USB_A2 USB_A3 USB_A4 RESET USB_SOFT_RESET SN74LVC1G08 USB_ALE SOT23-5 USB_CS USB_DMARD USB_DMAWR USB_DACK USB_EOT 30MHZ OSC010 10PF 10PF 0805 0805 USB_VBUS 2.43K 47.0K 0805 0805 AGND 3.3V AVCC 2.5V VDDC1 VSSC1 VDDC2 VSSC2 VSSIO1 VDD25 VSSIO2 USB 2.0 AVDD VSSIO3 PVDD...
  • Page 31 INDEX architecture, of this EZ-Extender, bill of materials, board schematic, connectors, J1-3 (expansion), customer support, dimensions, of this EZ-Extender, expansion interface, 1-1, FLAG0 (USB reset) pin, ADSP-21369 processors, FLAG1 (USB IRQ) pin, ADSP-21262/364/369 processors, FLAG2 (USB reset) pin, ADSP-21262/364 processors, interrupt request line (IRQ), SHARC USB EZ-Extender Manual JP1 (processor select) jumper, 1-2,...
  • Page 32 INDEX SHARC USB EZ-Extender Manual...
