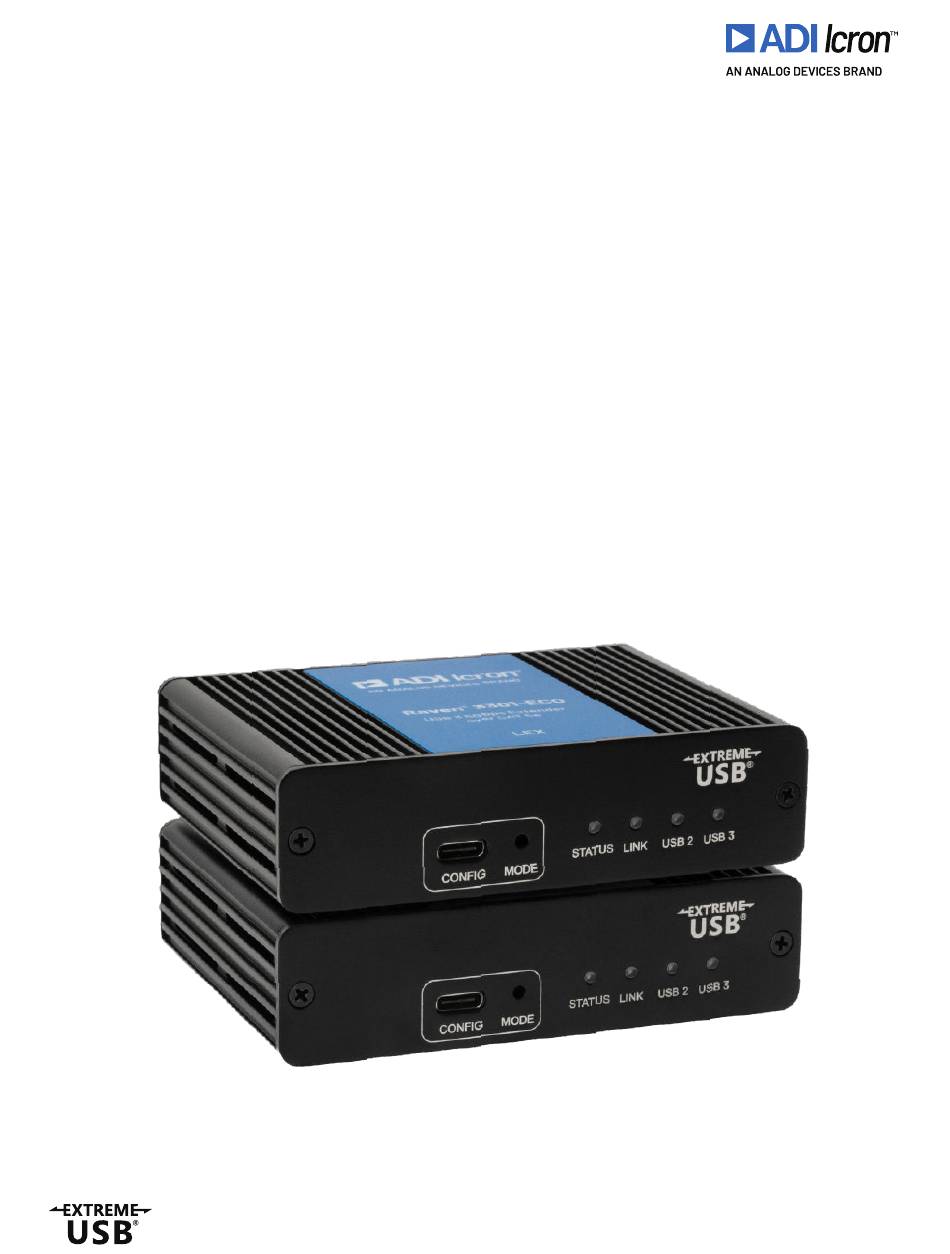

- Page 1 USER GUIDE Raven ™ 3301-ECO 1-Port USB 3 5Gbps, 100m CAT 5e Extender System icron.com...
- Page 2 CE Statement We, Icron, an Analog Devices brand, declare under our sole responsibility that the Raven 3301- ECO, to which this declaration relates, is in conformity with European Standards EN 55032, EN 55035, EMC Directive: 2014/30/EU, EN 62368-1, RoHS Directive 2011/65/EU + 2015/863/EU, EMC Directive 2014/30/EU, LVD Directive 2014/35/EU, and ErP Directive 2009/125/EC.
-
Page 3: Table Of Contents
............Raven 3301-ECO Category Cabling Guidelines ......8 Installing the Raven 3301-ECO . -
Page 4: Introduction
Transparent USB extension y True plug and play; no software drivers required y Works with all major operating systems; Windows®, macOS™, Linux® and ChromeOS™ NOTE: For best performance install the Raven 3301-ECO using shielded or foiled CAT 5e cable. icron.com... -
Page 5: Quick Start Guide
USER GUIDE Quick Start Guide Before you get started, ensure that all the drivers required for your USB device(s) are installed. LEX (back view) Place extenders where desired and connect the CAT 5e extension link cabling to the REX (back view) LINK Link ports (RJ45) on the LEX and REX. -
Page 6: The Lex Unit
USER GUIDE The LEX Unit The LEX (Local Extender) is powered by the USB connection to the host computer and uses a standard USB-C cable (not included). Front Faceplate STATUS LINK USB 2 USB 3 CONFIG MODE 3 4 5 6 Back Faceplate LINK... -
Page 7: The Rex Unit
USER GUIDE The REX Unit The (REX) Remote Extender unit provides a single USB-C receptacle for standard USB devices up to 5Gbps. Up to 31 devices may be connected by attaching USB hubs to the REX. Powered by an external 5V DC 4A adapter, the REX supplies 3A at the USB-C port. Front Faceplate STATUS LINK... -
Page 8: Installation Guide
Installation Guide Raven 3301-ECO Category Cabling Guidelines The Raven 3301-ECO requires a minimum grade of Category 5e cabling to be used in order to reach 100m (330 ft) of extension distance. NOTE: The total distance of 100m also includes the length of the patch cable should one be required. -
Page 9: Installing The Raven 3301-Eco
NOTE: If you are using surface cabling, the Raven 3301-ECO supports a maximum distance of 100m. Install the CAT 5e cabling as desired and terminate it with the appropriate RJ45 ends. -
Page 10: Installing The Lex Unit
USER GUIDE Installing the LEX Unit 1. Place the LEX unit near the computer. 2. Connect a USB-C cable between the LEX host port and to a USB port on your host computer. Installing the REX Unit 1. Place the REX near the USB device(s). 2. -
Page 11: Checking The Installation
If the Link LEDs are permanently off, then the cabling between the LEX and REX units may not be installed properly or is defective. 2. If the Raven 3301-ECO is not detected correctly or fails to detect, please consult the Troubleshooting section in this guide. -
Page 12: Optional 1Gb Ethernet Pass-Through Connection
USER GUIDE USB Extender Mounting Options The bottom of the Raven 3301-ECO enclosure features four convenient pre-drilled holes for optional mounting. Based on your requirements, choose from two available mounting options: 1. USB Extender Mounting Kit (purchased separately) Order Part #10-00536 USB Mounting Kit - Black 2. -
Page 13: Option 1: Usb Extender Mounting Kit
USER GUIDE Option 2: USB Extender Direct Surface Mounting The bottom of the Raven enclosure features four pre-drilled holes for optional surface mounting. Distance between the enclosure mounting holes: 42.0mm x 88.5mm mounting hole 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or printing the full-size stencil found in the Appendix on page 21. -
Page 14: Troubleshooting
USER GUIDE Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problems after following these instructions, please contact Icron Technical Support by visiting icron.com/support to create an online Support Ticket for further assistance. - Page 15 USER GUIDE Problem Cause Solution On the LEX, if The USB cable connecting the 1. Ensure that the included USB 3 cable is being LEX to the host computer is used between the host computer and LEX. USB 3 LED is defective.
- Page 16 USER GUIDE Problem Cause Solution A USB 3 device is The USB device is malfunctioning. 1. Disconnect the extender from the computer. not enumerating 2. Connect the USB 3 device directly to the host The computer does not recognize as USB 3, or the computer.
-
Page 17: Specifications
USER GUIDE Specifications Range Point-to-Point 100m (330 ft) over CAT 5e UTP Cable or better USB Device Support USB Bandwidth Up to 5Gbps Device Compatibility All Device Types and Classes (Control, Interrupt, Bulk, and Isochronous) Host Compatibility OHCI, UHCI, EHCI, xHCI Available Current at REX Supplies 3A (5V, 15W) Maximum Devices... -
Page 18: Warranty Information
Warranty Information Limited Hardware Warranty Icron, an Analog Devices brand, warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period of two years from the date of purchase. Icron’ s hardware warranty extends to Licensee, its customers and end users. -
Page 19: Contacting Technical Support
The repaired or replaced item will be shipped to you, at Icron’ s expense, not later than thirty days after Icron receives the defective product. Address to Return Product: RMA Coordinator Icron | An Analog Devices Brand 4664 Lougheed Hwy., Suite 221 Burnaby, BC, V5C 5T5, Canada icron.com... -
Page 20: Technical Glossary
USER GUIDE Technical Glossary Category 5e (CAT 5e) Network Cabling Technical Glossary Category 5e cable is commonly also referred to as CAT 5e. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Category 6a/7 (CAT 6a/7) Network Cabling Pair) or STP (Shielded Twisted Pair). -
Page 21: 3301-Eco Direct Surface Mounting Stencil
USER GUIDE Appendix A 3301-ECO Direct Surface Mounting Stencil Use your own hardware. The bottom of the enclosure has four pre-drilled holes for surface mounting. Distance between the enclosure mounting holes: 42.0mm x 88.5mm mounting hole 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or using this stencil. - Page 22 For sales/general inquiries, visit icron.com/contact. For technical support, visit icron.com/support. Copyright © 2025 Analog Devices, Inc. All Rights Reserved. Trademarks and registered trademarks are the property of their respective holders. ADI/Icron assumes no responsibility for errors that may appear in this document. Information contained herein is subject to change without notice.
