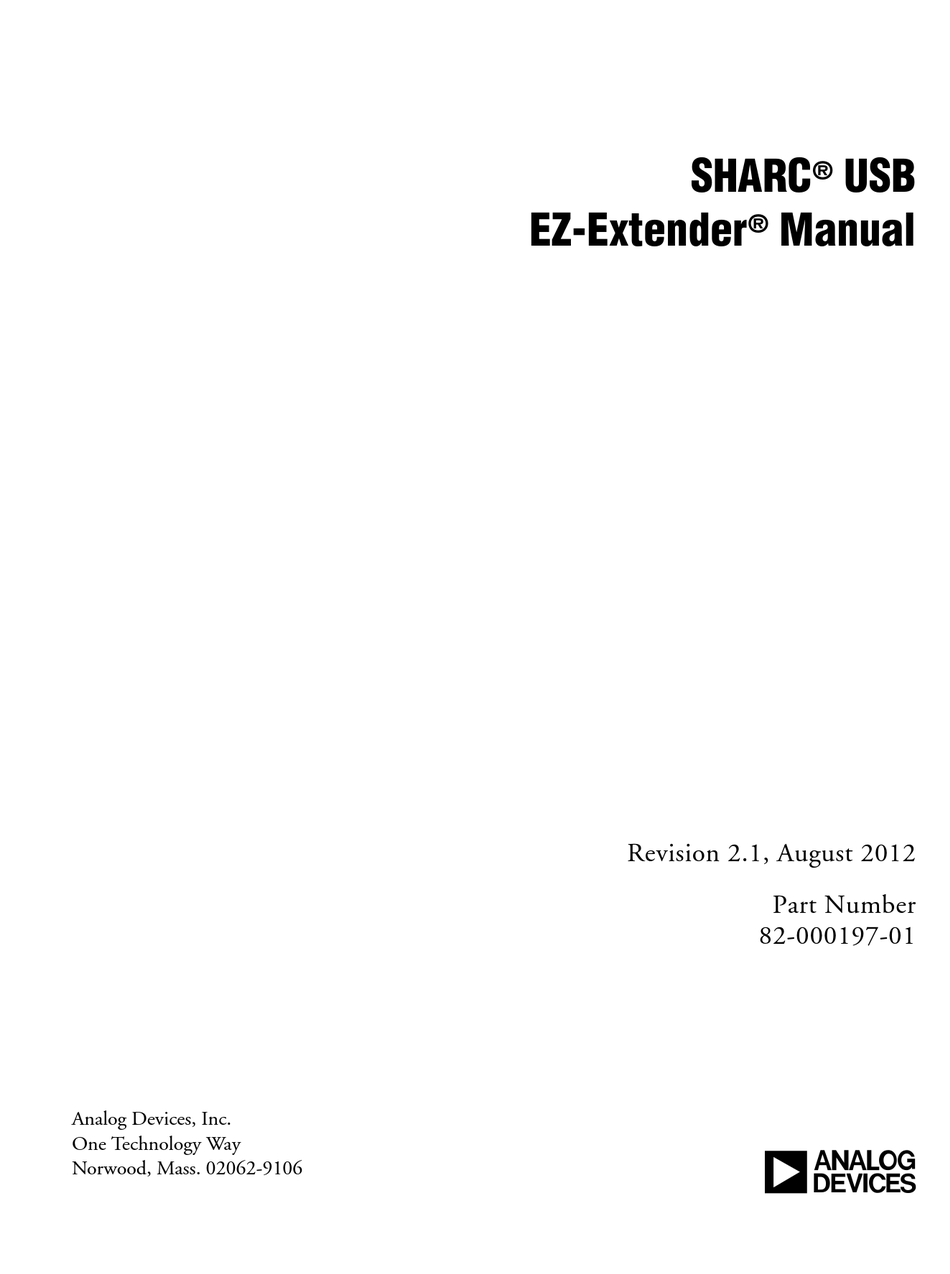

SHARC
USB
®
EZ-Extender
Manual
®
Revision 2.1, August 2012
Part Number
82-000197-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHARC USB EZ-Extender and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog Devices SHARC USB EZ-Extender

  • Page 1 SHARC ® EZ-Extender Manual ® Revision 2.1, August 2012 Part Number 82-000197-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
  • Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The SHARC USB EZ-Extender is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.
  • Page 5: Table Of Contents

    What’s New in This Manual ............x Technical Support ................x Supported Products ............... xi Product Information ..............xii Analog Devices Web Site ............xii EngineerZone ................. xii Related Documents ..............xiii USB EZ-EXTENDER INTERFACE USB EZ-Extender Setup ............... 1-1 USB Software Documentation ..........
  • Page 6 Contents USB EZ-EXTENDER HARDWARE REFERENCE System Architecture ..............2-1 Processor Select Jumper (JP1) ............2-2 USB EZ-EXTENDER BILL OF MATERIALS USB EZ-EXTENDER SCHEMATIC INDEX SHARC USB EZ-Extender Manual...
  • Page 7: Preface

    SHARC processor the bandwidth for sustained high-speed computations. SHARC processors represents today’s de facto standard for floating-point processor targeted for premium audio applications. The EZ-KIT Lites and SHARC USB EZ-Extender are designed to be used ® in conjunction with the CrossCore Embedded Studio (CCES) and ®...
  • Page 8: Product Overview

    To learn more about Analog Devices development software, go to http://www.analog.com/dsp/tools Product Overview The SHARC USB EZ-Extender is a separately sold extension board that plugs onto the expansion interface of the ADSP-21262, ADSP-21364, or ADSP-21369 EZ-KIT Lite evaluation system. The extension board aids the design and prototyping phases of ADSP-21262, ADSP-21364, or ADSP-21369 processor targeted applications.
  • Page 9: Purpose Of This Manual

    Preface Purpose of This Manual The SHARC USB EZ-Extender Manual describes the operation and con- figuration of the components on the extension board. A schematic and a bill of materials are provided as a reference for future SHARC processor board designs.
  • Page 10: What's New In This Manual

    Appendix B is part of the online help. What’s New in This Manual This is revision 2.1 of the SHARC USB EZ-Extender Manual. The manual has been updated to include CCES information. In addition, modifica- tions and corrections based on errata reports against the previous manual revision have been made.
  • Page 11: Supported Products

    Processors and DSP Technical Support Analog Devices, Inc. Three Technology Way P.O. Box 9106 Norwood, MA 02062-9106 Supported Products The SHARC USB EZ-Extender is designed as an extension board to the ADSP-21262, ADSP-21364, and ADSP-21369 EZ-KIT Lite evaluation systems. SHARC USB EZ-Extender Manual...
  • Page 12: Product Information

    Product Information Product Information Product information can be obtained from the Analog Devices Web site and the online help. Analog Devices Web Site The Analog Devices Web site, , provides information www.analog.com about a broad range of products—analog integrated circuits, amplifiers, converters, and digital signal processors.
  • Page 13: Related Documents

    • ADSP-2136x SHARC Processor Hardware Reference (Includes ADSP-21364) • ADSP-2137x SHARC Processor Hardware Reference (Includes ADSP-21369) • ADSP-21160 SHARC DSP Instruction Set Description of all allowed processor assembly Reference instructions • SHARC Processor Programming Reference SHARC USB EZ-Extender Manual xiii...
  • Page 14 Related Documents SHARC USB EZ-Extender Manual...
  • Page 15: Usb Ez-Extender Interface

    USB EZ-Extender. Install the nylon feet in the mounting holes of the EZ-KIT Lite’s printed circuit board (PCB). Flip the EZ-KIT Lite upside down so that the three expansion headers ( ) are facing up. J1–3 SHARC USB EZ-Extender Manual...
  • Page 16: Usb Software Documentation

    USB 2.0 controller by directly addressing the named memory bank. You can reset the NetChip 2272 device by asserting these flag pins: • on the ADSP-21262 and ADSP-21364 processors FLAG2 • on the ADSP-21369 processor FLAG0 SHARC USB EZ-Extender Manual...
  • Page 17 When writing to and reading from the USB device using the EZ-KIT Lites, use memory addresses listed in Table 1-1. Table 1-1. USB Device Memory EZ-KIT Lite Starting Address Ending Address ADSP-21262 0x0100 6C00 0x0100 6FE0 ADSP-21364 0x0100 6C00 0x0100 6FE0 ADSP-21369 0x0C00 0000 0x0C00 03E0 SHARC USB EZ-Extender Manual...
  • Page 18 USB 2.0 Interface SHARC USB EZ-Extender Manual...
  • Page 19: Usb Ez-Extender Hardware Reference

    Describes the extension board’s configuration. • “Processor Select Jumper (JP1)” on page 2-2 Describes the configuration jumper’s functionality. System Architecture A block diagram of the SHARC USB EZ-Extender is shown in Figure 2-1. Figure 2-1. Block Diagram SHARC USB EZ-Extender Manual...
  • Page 20: Processor Select Jumper (Jp1)

    Processor Select Jumper (JP1) Processor Select Jumper (JP1) Before using the SHARC USB EZ-Extender, follow the steps in “USB EZ-Extender Setup” on page 1-1. Figure 2-2 shows the location of the processor select jumper two-pin jumper can be placed on the respective jumper header for differ- ent functionality.
  • Page 21 EZ-KIT Lite, you must not place any jumpers on . Placing a jumper on can damage the extender card and/or the EZ-KIT Lite. When using the extender with an ADSP-21369 EZ-KIT Lite, you must place the jumper on SHARC USB EZ-Extender Manual...
  • Page 22 Processor Select Jumper (JP1) SHARC USB EZ-Extender Manual...
  • Page 23: Usb Ez-Extender Bill Of Materials

    PI3B16226 PERICOM PI3B16226BE BQSOP40 SEMI SN74ALVCH16373 SN74ALVCH16373DGGRG4 TSSOP48 ADP3330ARTZ-25 ANALOG ADP3330ARTZ-2.5-R7 SOT23-6 DEVICES USB 4PIN MILL MAX 897-43-004-90-000 CON009 0.05 45x2 CON018 P1-3 SAMTEC TFC-145-32-F-D IDC 2X1 IDC2X1 90726-402HLF 600 100MHZ FER3-4 STEWARD HZ1206B601R-10 500MA 1206 SHARC USB EZ-Extender Manual...
  • Page 24 1.5K 1/10W 5% PANASONIC ERAV15J152V 0603 39.0 1/10W 1% R6-7 VISHAY CRCW-060339R0FKEA 0603 2.43K 1/10W 1% DIGI-KEY 311-2.43KCRTR-ND 0805 330 1/10W 5% VISHAY CRCW0603330RJNEA 0603 1M 1/10W 5% VISHAY CRCW06031M00FNEA 0603 GREEN-SMT LED1 PANASONIC LN1361CTR LED001 SHARC USB EZ-Extender Manual...
  • Page 25 SHARC USB EZ-EXTENDER Schematic ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD SHARC USB EZ-EXTENDER Title TITLE Size Board No. A0197-2005 1.1B Date 4-24-2006_10:01 Sheet...
  • Page 26 DSP_D6 DSP_D7 DSP_D8 DSP_D9 EXP_CS1 DSP_D10 DSP_D11 DSP_D12 DSP_D13 DSP_D14 DSP_D15 0402 0402 CON018 CON018 CON018 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD SHARC USB EZ-EXTENDER Title EXPANSION INTERFACE Size Board No. A0197-2005 1.1B Date 4-24-2006_10:01 Sheet...
  • Page 27 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0402 0402 0402 0402 0402 0402 0402 0402 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD SHARC USB EZ-EXTENDER Title BUS SWITCHES Size Board No. A0197-2005 1.1B Date 4-24-2006_10:01 Sheet...
  • Page 28 0805 0.01UF 0402 VDDIO2 AVSS1 VDDIO3 AVSS2 0402 0402 0402 0402 VDD33 NET2272 AGND TQFP64 AGND ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD SHARC USB EZ-EXTENDER Title USB INTERFACE Size Board No. A0197-2005 1.1B Date 4-24-2006_10:01 Sheet...
  • Page 29: Index

    1-1, technical support, FLAG0 (USB reset) pin, ADSP-21369 processors, FLAG1 (USB IRQ) pin, controller, ADSP-21262/364/369 processors, device memory map, documentation, FLAG2 (USB reset) pin, ADSP-21262/364 IRQ line, processors, reset, interrupt request line (IRQ), SHARC USB EZ-Extender Manual...
  • Page 30 Index SHARC USB EZ-Extender Manual...
