Analog Devices Icron Ranger RG2324 Quick Start Manual

USB 2.0 Ranger® 2324/
USB 2.0 Ranger® 2344
4-Port USB Fiber Extender System
Quick
Start
Guide
Package Contents:

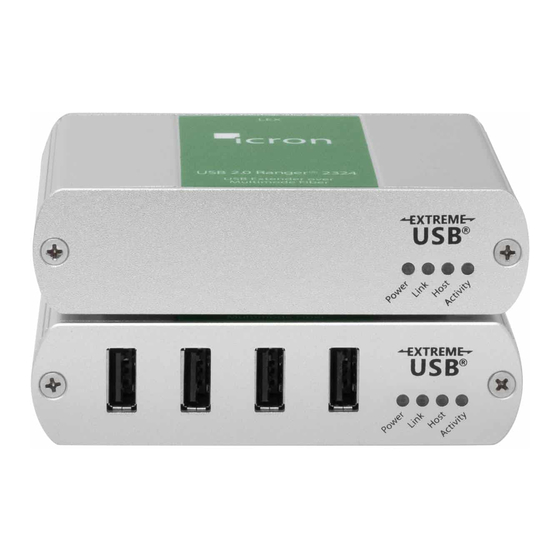

ƒ USB 2.0 Ranger 2324/2344 LEX
ƒ USB 2.0 Ranger 2324/2344 REX
ƒ USB 2.0 Cable
ƒ AC Power Adapter
ƒ Country Specific Power Cord
ƒ Quick Start Guide/Warranty Info
Refer to the complete user guide
online at:
www.icron.com/2324
www.icron.com/2344
For technical support with this
product, contact:
www.icron.com/support
www.icron.com
Before you get started, ensure that all the drivers required for your USB device(s) are installed.
LEX = Local Extender, REX = Remote Extender

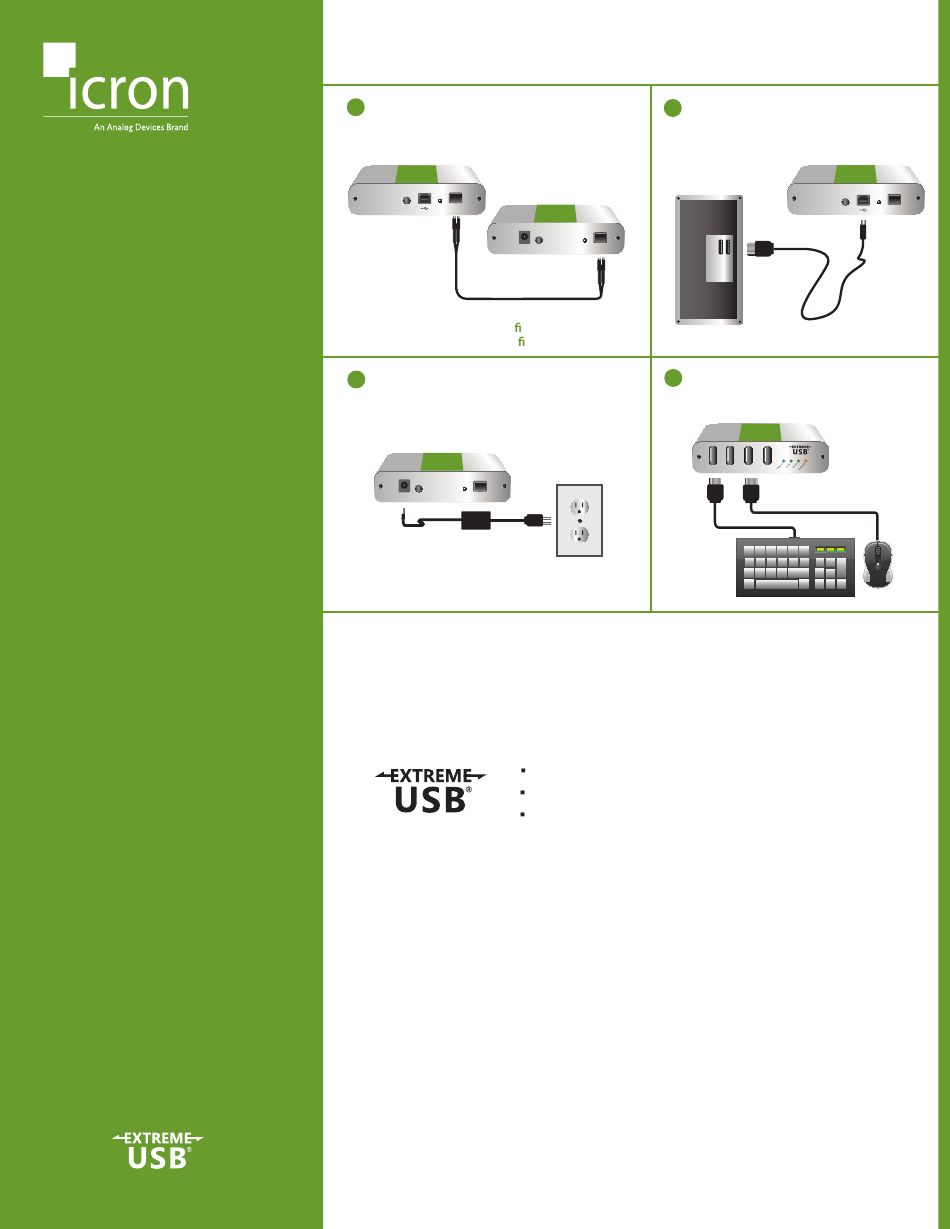

1 Place extenders where desired and connect
1
1
the fiber cable to the Link ports (SFP) on the
LEX and REX.
LEX (back view)
REX (back view)
Config Mode Link
24V 1A
(LC-LC crossover duplex cable not included)
Max 500m multimode ber for RG2324
Max 10km singlemode ber for RG2344
3
Connect the REX to the AC adapter and
3
plug it into a power source.
REX (back view)
24V 1A Config Mode Link
Includes the ExtremeUSB® suite of features:
Connect the LEX to the computer
2
using the included USB cable.
Computer
Config Mode Link
4 Attach USB device(s) to the REX.
4
Transparent USB extension
True plug and play; no software drivers required
Works with all major operating systems: Windows®,
macOS™, Linux® and Chrome OS™
LEX (back view)
Mode Link
Config
REX (front view)
