Analog Devices Icron Raven 3204C Quick Start Manual

Quick Start Guide
USB 3-2-1 Raven
™
4-Port USB 3 (5Gbps), 100m CAT 6a/7
Point-to-Point USB-C Extender System
Package Contents:

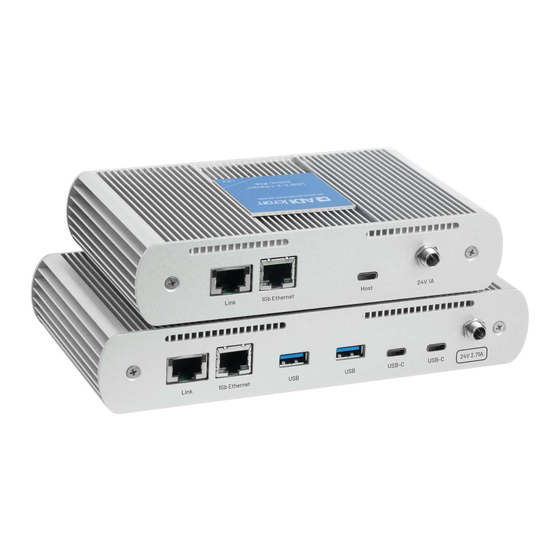

USB 3-2-1 Raven 3204C LEX

USB 3-2-1 Raven 3204C REX

USB-C Cable

24V 1A AC Adapter

24V 2.71A AC Adapter

2x Country Specific Power Cords

Quick Start Guide

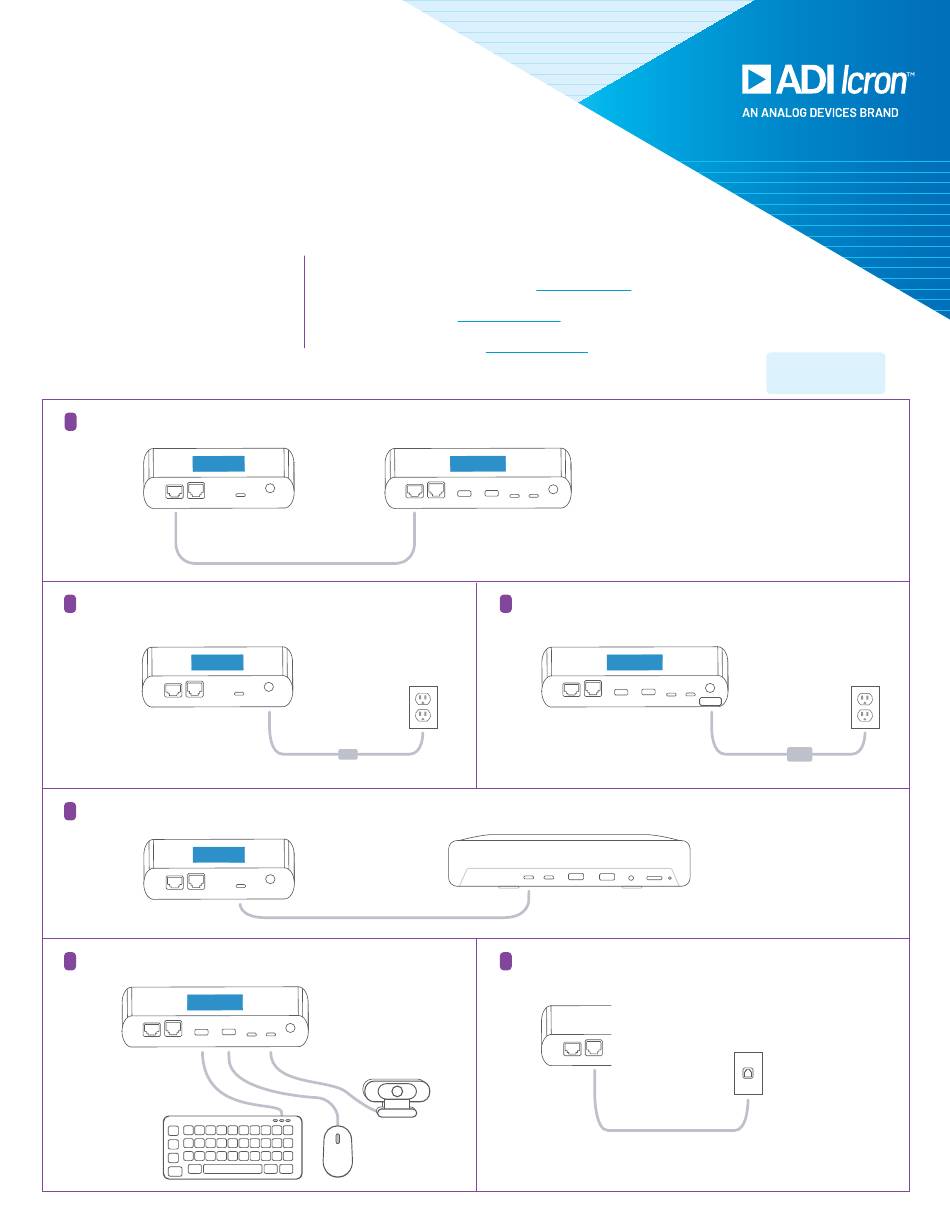

1
Place extenders where desired and connect a CAT 6a/7 cable to the Link ports (outermost RJ45 connector) on the LEX and REX.
LEX
Link
Max 100m CAT 6a/7 Cable (not included)
2 Power the LEX with the included 24V 1A AC adapter and tighten the
locking ring.
LEX
Note: If an outlet is unavailable,
refer to the online user guide for
an alternate LEX powering option.
4 Connect the LEX to the host computer's USB-C port using the included USB-C cable.
LEX
5
Attach the USB device(s) to the REX.
REX
USB
3204C
For more information about configuring and operating this product,
refer to the complete online user guide at
For technical support, visit icron.com/support.
For sales/general inquiries, visit icron.com/contact.
Before starting, install any required drivers for your USB device(s).
Back View
24V 1A
24V 1A AC Adapter
Host
USB-C Cable
USB-C USB-C
USB
USB Devices
cron.com/3204C.
i
REX
Link
3 Power the REX with the included 24V 2.71A AC adapter and tighten the
locking ring.
Host
6
Optional: Connect the LEX and REX 1Gb Ethernet ports (inner RJ45
connector) to a network or device as necessary for pass-through LAN.
1Gb Ethernet
LEX = Local Extender
REX = Remote Extender
REX
24V 2.71A
24V 2.71A AC Adapter
Max 100m
(CAT cable not included)
