USB 2.0 Ranger® 2324/
USB 2.0 Ranger® 2344

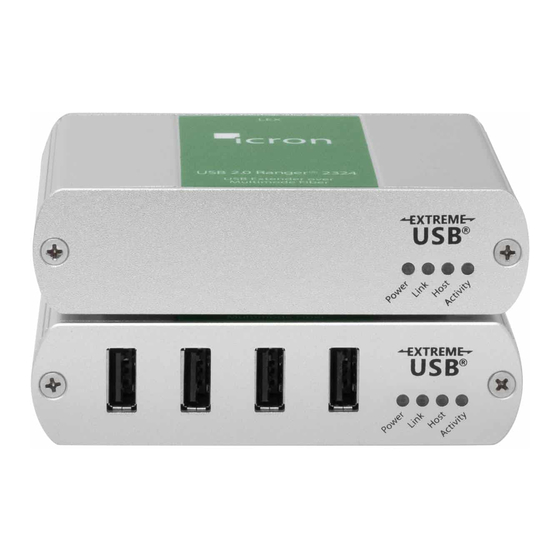

4-Port USB Fiber Extender System
Quick
Start
Guide
Package Contents:
ƒ USB 2.0 Ranger 2324/2344 LEX
ƒ USB 2.0 Ranger 2324/2344 REX
ƒ USB 2.0 Cable
ƒ AC Power Adapter
ƒ Country Specific Power Cord
ƒ Quick Start Guide/Warranty Info
Refer to the complete user guide
online at:
www.icron.com/2324
www.icron.com/2344
For technical support with this
product, contact:
www.icron.com/support
www.icron.com

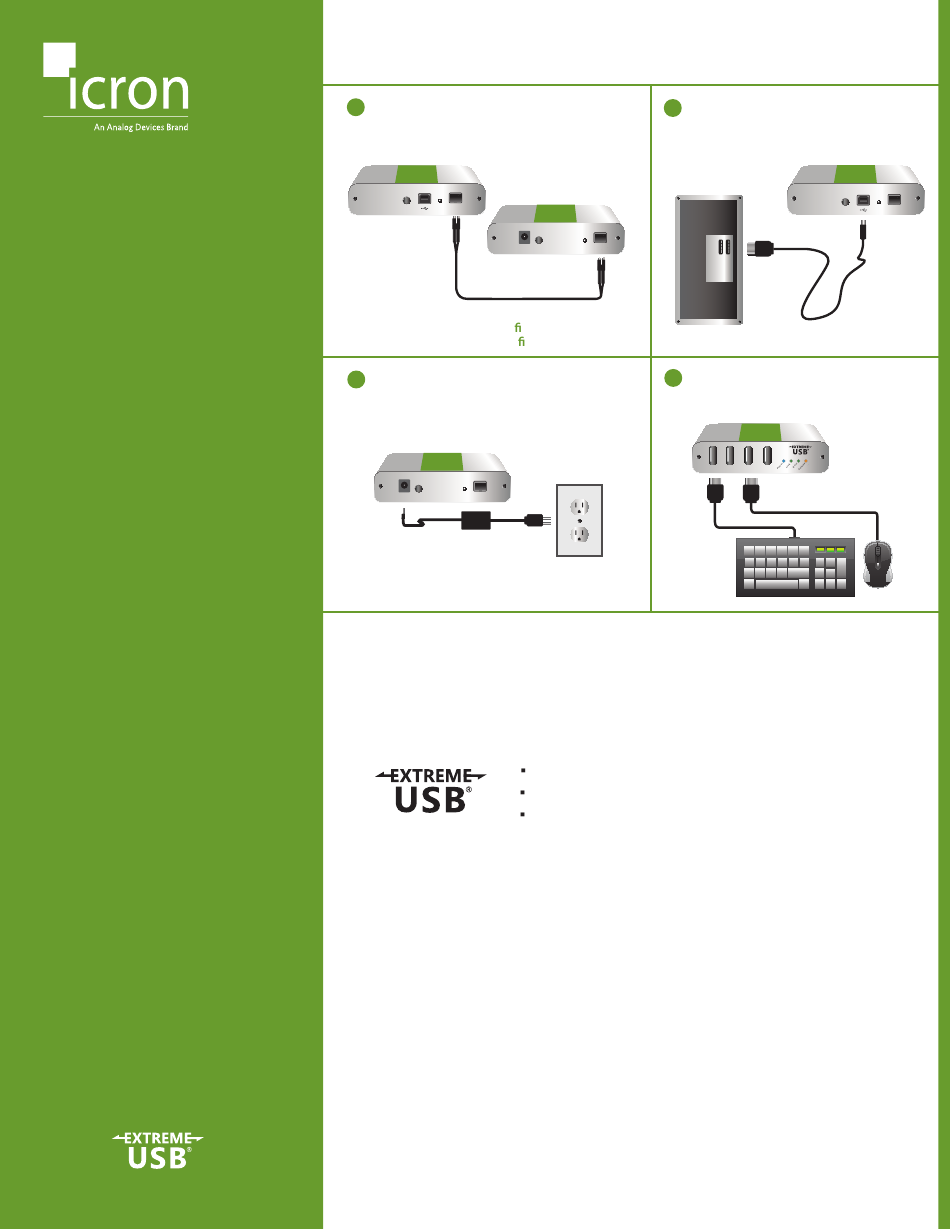

Before you get started, ensure that all the drivers required for your USB device(s) are installed.
LEX = Local Extender, REX = Remote Extender
1
Place extenders where desired and connect
1
1
the fiber cable to the Link ports (SFP) on the
LEX and REX.
LEX (back view)
REX (back view)
Config
Mode
Link
24V 1A
(LC-LC crossover duplex cable not included)
Max 500m multimode ber for RG2324
Max 10km singlemode ber for RG2344
3
Connect the REX to the AC adapter and
3
plug it into a power source.
REX (back view)
24V 1A
Config
Mode
Link
Includes the ExtremeUSB® suite of features:
Connect the LEX to the computer
2
using the included USB cable.
Computer
Config
Mode
Link
4
Attach USB device(s) to the REX.
4
Transparent USB extension
True plug and play; no software drivers required
Works with all major operating systems: Windows®,
macOS™, Linux® and Chrome OS™
LEX (back view)
Mode
Link
Config
REX (front view)

Advertisement

loading
Need help?

Need help?

Do you have a question about the icron Ranger 2324 and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog Devices icron Ranger 2324

  • Page 1 Before you get started, ensure that all the drivers required for your USB device(s) are installed. LEX = Local Extender, REX = Remote Extender Place extenders where desired and connect Connect the LEX to the computer the fiber cable to the Link ports (SFP) on the using the included USB cable.
  • Page 2 CE Statement We, Icron Technologies Corporation, an Analog Devices brand, declare under our sole responsibility that the USB 2.0 Ranger® 2324/2344, to which this declaration relates, is in conformity with European Standards EN 55024, EN 55032, EN 61000, EN 62368-1 and RoHS Directive 2011/65/EU + 2015/863/EU.
