Kobold DAG-M35 Series Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
for
Digital Indicating Unit
Pt100 3-/4-wire -200°C...850°C / -328°F...1562°F
Model: DAG-M35..., 96 x 24 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG-M35 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold DAG-M35 Series

Summary of Contents for Kobold DAG-M35 Series

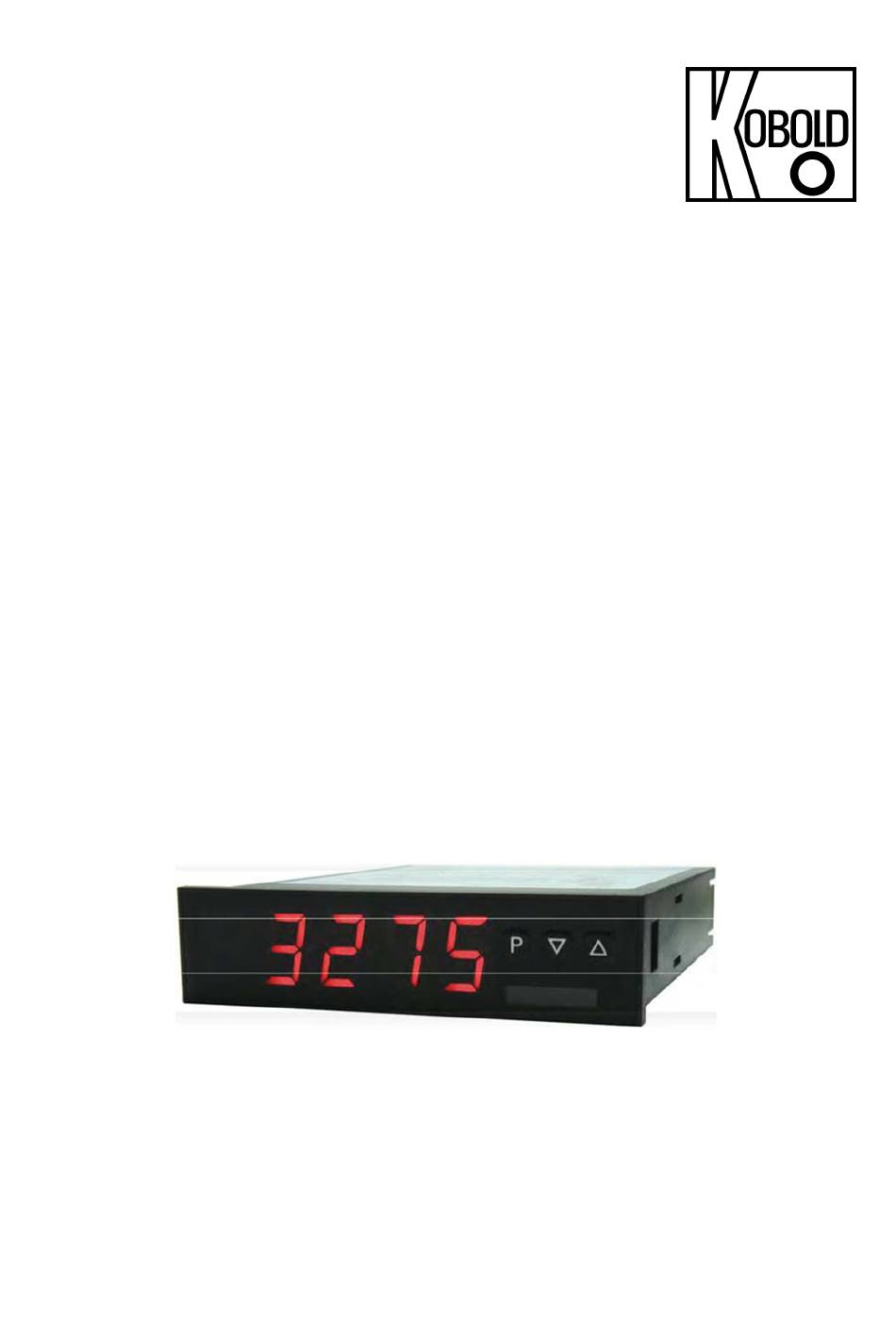

  • Page 1 Operating Instructions Digital Indicating Unit Pt100 3-/4-wire -200°C…850°C / -328°F…1562°F Model: DAG-M35…, 96 x 24 mm...

  • Page 2: Table Of Contents

    DAG-M35 We don’t accept warranty and liability claims neither upon this publication nor in case of improper treatment of the described products. The document may contain technical inaccuracies and typographical errors. The content will be revised on a regular basis. These changes will be implemented in later versions.
  • Page 3 DAG-M35 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com DAG-M35 K08/0623 page 3...

  • Page 4: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.

  • Page 5: Brief Description

    DAG-M35 5. Brief description The panel meter instrument DAG-M35 is a 5-digit device for Pt100 sensors and a visual threshold value monitoring via the display. The configuration happens via four keys at the front. The integrated programming interlock prevents unrequested changes of parameters and can be unlocked again with an individual code.

  • Page 6: Assembly

    DAG-M35 6. Assembly Please read the Safety advices on page 27 before installation and keep this user manual for future reference. 1. After removing the fixing elements, insert the device. 2. Check the seal to make sure it fits securely. 3.

  • Page 7: Electrical Connection

    DAG-M35 7. Electrical connection Type M358 supply 100-240 VAC 50/60Hz, DC ± 10% Type M357 supply 10-40 VDC galv. isolated, 18-30 VAC 50/60Hz DAG-M35 K08/0623 page 7...

  • Page 8: Function Description And Operation

    DAG-M35 8. Function description and operation Operation The operation is divided into three different levels. Menu level (delivery status) This level is for the standard settings of the device. Only menu items which are sufficient to set the device into operation are displayed. To get into the professional level, run through the menu level and parameterize prof under menu item run.
  • Page 9 DAG-M35 Function chart DAG-M35 K08/0623 page 9...

  • Page 10: Setting Up The Device

    DAG-M35 9. Setting up the device 9.1 Switching on Once the installation is complete, you can start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 seconds during the switching-on process, the segment test (8 8 8 8 8) is displayed followed by an indication of the software type and after that, also for 1 second, the software version.
  • Page 11 DAG-M35 DAG-M35 K08/0623 page 11...

  • Page 12: Programming Interlock Run

    DAG-M35 9.3 Programming interlock RUN page 12 DAG-M35 K08/0623...

  • Page 13: Extended Parameterization (Professional Operation Level)

    DAG-M35 9.4 Extended parameterization (Professional operation level) 9.4.1 Signal input parameters DAG-M35 K08/0623 page 13...
  • Page 14 DAG-M35 9.4.2 General device parameters page 14 DAG-M35 K08/0623...
  • Page 15 DAG-M35 DAG-M35 K08/0623 page 15...
  • Page 16 DAG-M35 page 16 DAG-M35 K08/0623...
  • Page 17 DAG-M35 9.4.3 Safety parameters DAG-M35 K08/0623 page 17...
  • Page 18 DAG-M35 9.4.4 Serial parameters page 18 DAG-M35 K08/0623...
  • Page 19 DAG-M35 9.4.5 Analogue output parameters DAG-M35 K08/0623 page 19...
  • Page 20 DAG-M35 page 20 DAG-M35 K08/0623...
  • Page 21 DAG-M35 9.4.6 Relay functions DAG-M35 K08/0623 page 21...
  • Page 22 DAG-M35 9.4.7 Alarm parameters page 22 DAG-M35 K08/0623...
  • Page 23 DAG-M35 9.4.8 Programming interlock run Description see page 12 menu level RUN DAG-M35 K08/0623 page 23...

  • Page 24: Reset To Default Values

    DAG-M35 10. Reset to default values To return the unit to a defined basic state, a reset can be carried out to the default values. The following procedure should be used:  Switch off the power supply.  Press button [P] “- - - -“...
  • Page 25 DAG-M35 Operating current By operating current, the alarm S1-S2 is off below the threshold and on on reaching the threshold. Quiescent current By quiescent current the alarm S1-S2 is on below the threshold and switched off on reaching the threshold. Switching-on delay The switching-on delay is activated via an alarm and e.g.

  • Page 26: Interfaces

    DAG-M35 12. Interfaces The interface RS485 is connected via a screened data line with twisted wires (Twisted-Pair). On each end of the bus segment a termination of the bus lines needs to be connected. This is necessary to ensure a secure data transfer to the bus.

  • Page 27: Technical Information

    DAG-M35 13. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 14. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 15.
  • Page 28 DAG-M35 Installation The DAG-device must be installed by a suitably qualified specialist (e.g. with a qualification in industrial electronics) Notes on installation  There must be no magnetic or electric fields in the vicinity of the device, e.g. due to transformers, mobile phones or electrostatic discharge. ...

  • Page 29: Error Elimination

    DAG-M35 17. Error elimination DAG-M35 K08/0623 page 29...

  • Page 30: Disposal

    DAG-M35 18. Disposal Note!  Avoid environmental damage caused by media-contaminated parts  Dispose of the device and packaging in an environmentally friendly manner  Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1.

  • Page 31: Eu Declaration Of Conformance

    DAG-M35 19. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit model: DAG-M35 to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010+A1:2019+A1:2019/AC:2019...

  • Page 32: Declaration Of Conformity

    DAG-M35 20. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit model: DAG-M35 to which this declaration relates is in conformity with the standards noted below: BS EN 61010-1:2010+A1:2019 Safety requirements for electrical equipment for measurement, control, and laboratory use.

  • Page 33: Appendix Modbus Device Interface

    DAG-M35 21. Appendix MODBUS Device Interface DAG-M35 K08/0623 page 33...
  • Page 34 DAG-M35 page 34 DAG-M35 K08/0623...
  • Page 35 DAG-M35 DAG-M35 K08/0623 page 35...
  • Page 36 DAG-M35 page 36 DAG-M35 K08/0623...
  • Page 37 DAG-M35 DAG-M35 K08/0623 page 37...
  • Page 38 DAG-M35 page 38 DAG-M35 K08/0623...
  • Page 39 DAG-M35 DAG-M35 K08/0623 page 39...
  • Page 40 DAG-M35 page 40 DAG-M35 K08/0623...
  • Page 41 DAG-M35 DAG-M35 K08/0623 page 41...
  • Page 42 DAG-M35 page 42 DAG-M35 K08/0623...
