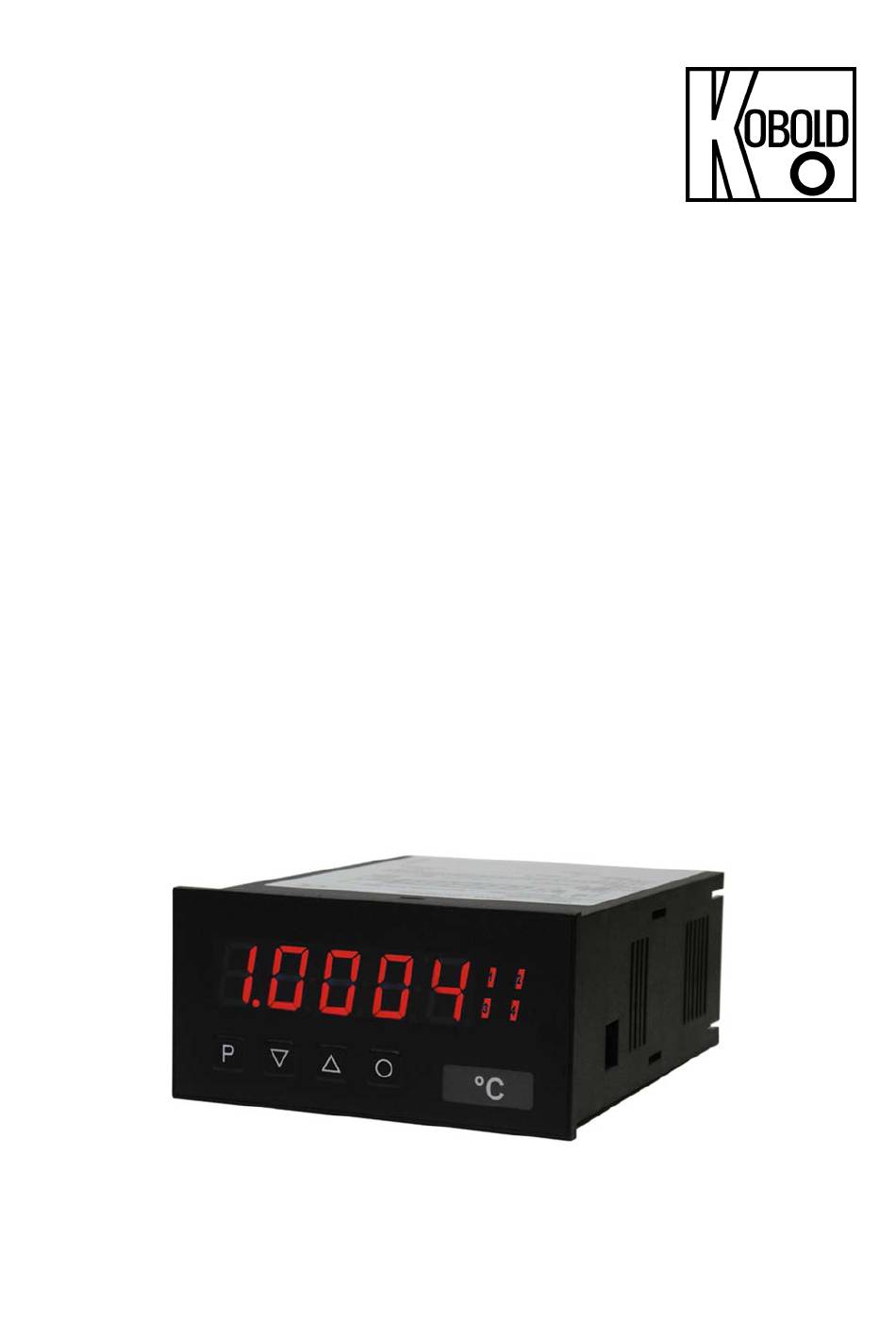

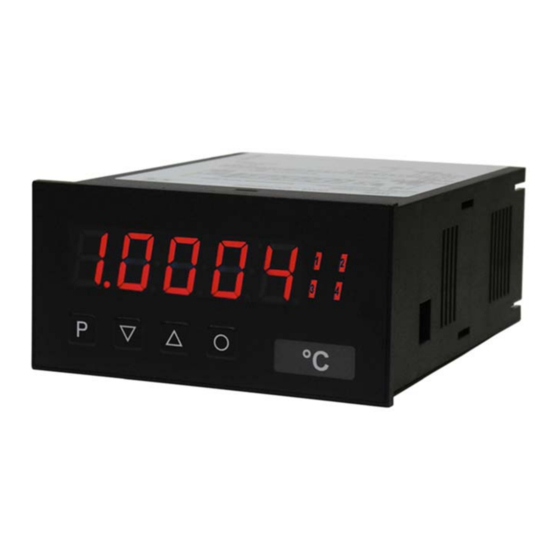

Operating Instructions
for
Digital Indicating Unit
Frequency input: 0,01 Hz to 999,99 Hz
Connection for Namur-, NPN-, PNP- and TTL-sensors
Model: DAG-M4F..., 96 x 48 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG-M4F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold DAG-M4F Series

Summary of Contents for Kobold DAG-M4F Series

  • Page 1 Operating Instructions Digital Indicating Unit Frequency input: 0,01 Hz to 999,99 Hz Connection for Namur-, NPN-, PNP- and TTL-sensors Model: DAG-M4F…, 96 x 48 mm...

  • Page 2: Table Of Contents

    DAG-M4F We don’t accept warranty and liability claims neither upon this publication nor in case of improper treatment of the described products. The document may contain technical inaccuracies and typographical errors. The content will be revised on a regular basis. These changes will be implemented in later versions.
  • Page 3 DAG-M4F Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com DAG-M4F K08/0623 page 3...

  • Page 4: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.

  • Page 5: Brief Description

    DAG-M4F 5. Brief description The panel meter DAG-M4F evaluates pulses in many different ways and shows the result in the 5-digit LED-display. Available options are: frequency coverage with optional filters, summate of pulses or display values via time, detection of a rotational speed or collection of a position via an incremental encoder.

  • Page 6: Assembly

    DAG-M4F 6. Assembly Please read the following Safety advices on page 25 before installation and keep this user manual for future reference. 1. After removing the fixing elements, insert the device. 2. Check the seal to make sure it fits securely. 3.

  • Page 7: Electrical Connection

    DAG-M4F 7. Electrical connection Type DAG-M4F8 supply 100-240 VAC, DC ± 10% Type DAG-M4F7 supply 10-40 VDC, galv. Isolated, 18-30 VAC Advice If Namur sensors with a nominal voltage of approx. 8 V are used, then a sensor supply of 12 VDC is needed.

  • Page 8: Function And Operation Description

    DAG-M4F 8. Function and operation description Operation The operation is divided into three different levels. Menu level (delivery status) This level was designed for the standard settings of the device. Only menu items which are sufficent to set the device into operation are displayed. To get into the professional level, run through the menu level and parameterize prof under menu item RUN.

  • Page 9: Setting Up The Device

    DAG-M4F Function chart 9. Setting up the device 9.1 Switching-on Once the installation is complete, start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8 8) is displayed, followed by an indication of the software type and, after that, also for 1 second, the software version.

  • Page 10: Standard Parameterization (Flat Operation Level)

    DAG-M4F 9.2 Standard parameterization (Flat operation level) To parameterize the display, press the [P]-key in operating mode for 1 second. The display then changes to the menu level with the first menu item TYPE. page 10 DAG-M4F K08/0623...
  • Page 11 DAG-M4F DAG-M4F K08/0623 page 11...
  • Page 12 DAG-M4F page 12 DAG-M4F K08/0623...
  • Page 13 DAG-M4F DAG-M4F K08/0623 page 13...

  • Page 14: Programming Interlock Run

    DAG-M4F 9.3 Programming interlock RUN page 14 DAG-M4F K08/0623...

  • Page 15: Extended Parameterization (Professional Operation Level)

    DAG-M4F 9.4 Extended parameterization (Professional operation level) 9.4.1 Signal input parameters DAG-M4F K08/0623 page 15...
  • Page 16 DAG-M4F page 16 DAG-M4F K08/0623...
  • Page 17 DAG-M4F DAG-M4F K08/0623 page 17...
  • Page 18 DAG-M4F page 18 DAG-M4F K08/0623...
  • Page 19 DAG-M4F 9.4.2 General parameters DAG-M4F K08/0623 page 19...
  • Page 20 DAG-M4F page 20 DAG-M4F K08/0623...
  • Page 21 DAG-M4F DAG-M4F K08/0623 page 21...
  • Page 22 DAG-M4F page 22 DAG-M4F K08/0623...
  • Page 23 DAG-M4F 9.4.3 Safety parameters DAG-M4F K08/0623 page 23...
  • Page 24 DAG-M4F 9.4.4 Serial parameters page 24 DAG-M4F K08/0623...
  • Page 25 DAG-M4F 9.4.5 Analogue output parameters 1 DAG-M4F K08/0623 page 25...
  • Page 26 DAG-M4F 9.4.6 Analogue output parameters 2 page 26 DAG-M4F K08/0623...
  • Page 27 DAG-M4F DAG-M4F K08/0623 page 27...
  • Page 28 DAG-M4F 9.4.7 Relay functions page 28 DAG-M4F K08/0623...
  • Page 29 DAG-M4F DAG-M4F K08/0623 page 29...
  • Page 30 DAG-M4F 9.4.8 Alarm parameters page 30 DAG-M4F K08/0623...
  • Page 31 DAG-M4F DAG-M4F K08/0623 page 31...
  • Page 32 DAG-M4F 9.4.9 Totalizer (Volume measurement) page 32 DAG-M4F K08/0623...

  • Page 33: Reset To Factory Settings

    DAG-M4F Programming interlock RUN Description see page 12, menu level RUN 10. Reset to factory settings To return the unit to a defined basic state, a reset can be carried out to the default values. The following procedure should be used: ...

  • Page 34: Alarms / Relays

    DAG-M4F 11. Alarms / Relays This device has 4 virtual alarms that can monitor one limit value in regard of an undercut or exceedance. Each alarm can be allocated to an optional relay output S1- S4; furthermore, alarms can be controlled by events like e.g. hold or min/max-value. page 34 DAG-M4F K08/0623...
  • Page 35 DAG-M4F Operating current By operating current, the alarm S1-S2 is off below the threshold and on on reaching the threshold. Quiescent current By quiescent current the alarm S1-S2 is on below the threshold and switched off on reaching the threshold. Switching-on delay The switching-on delay is activated via an alarm and e.g.

  • Page 36: Interfaces Rs232 And Rs485

    DAG-M4F 12. Interfaces RS232 and RS485 The interface RS485 is connected via a screened data line with twisted wires (Twisted-Pair). On each end of the bus segment a termination of the bus lines needs to be connected. This is necessary to ensure a secure data transfer to the bus.

  • Page 37: Programmer Examples

    DAG-M4F 13. Programmer examples Example for the rotation speed adjustment In this application the rotation speed of an axis shall be collected via a toothed wheel with 30 sprockets, per Namur sensor. It is then displayed with one position after decimal point and the dimension rpm.
  • Page 38 DAG-M4F Example for angle coverage: On a manually operated bender for sheet metal the bending angle shall be displayed in degree. The device is in zero state (0°) during switching on of the display. An incremental encoder with 360 pulses/rotation is used. Examples: Adjustment according to number of sprockets at unknown rotation speed.
  • Page 39 DAG-M4F If the frequency needs to be displayed with a position after decimal point, then a 60 has to be selected as final value for this adjustment. Example: Rotation speed of a machine shaft There are 4 sprockets on one machine shaft. Applied in an angle of 90° to each other and to the rotation speed measurement.

  • Page 40: Technical Information

    14. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 15. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 16.

  • Page 41: Safety Advices

    DAG-M4F 17. Safety advices Please read the following safety advices and the assembly chapter 6 before installation and keep it for future reference. Proper use The DAG-M4F device is designed for the evaluation and display of sensor signals. DANGER! Careless use or improper operation can result injury personal injury and / or can damage the equipment.
  • Page 42 DAG-M4F  Screen off and twist sensor lines. Do not lay current-carrying lines in the vicinity. Connect the screening on one side on a suitable potential equalizer (normally signal ground).    The device is not suitable for installation in areas where there is a risk of explosion.

  • Page 43: Error Elimination

    DAG-M4F 18. Error elimination DAG-M4F K08/0623 page 43...

  • Page 44: Disposal

    DAG-M4F 19. Disposal Note!  Avoid environmental damage caused by media-contaminated parts  Dispose of the device and packaging in an environmentally friendly manner  Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1.

  • Page 45: Eu Declaration Of Conformance

    DAG-M4F 20. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicator and Controller Model: DAG-M4F to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010+A1:2019+A1:2019/AC:2019...

  • Page 46: Declaration Of Conformity

    DAG-M4F 21. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicator and Controller Model: DAG-M4F to which this declaration relates is in conformity with the standards noted below: BS EN 61010-1:2010+A1:2019 Safety requirements for electrical equipment for measurement, control, and laboratory use.

  • Page 47: Appendix Modbus Device Interface

    DAG-M4F 22. Appendix MODBUS Device Interface DAG-M4F K08/0623 page 47...
  • Page 48 DAG-M4F page 48 DAG-M4F K08/0623...
  • Page 49 DAG-M4F DAG-M4F K08/0623 page 49...
  • Page 50 DAG-M4F page 50 DAG-M4F K08/0623...
  • Page 51 DAG-M4F DAG-M4F K08/0623 page 51...
  • Page 52 DAG-M4F page 52 DAG-M4F K08/0623...
  • Page 53 DAG-M4F DAG-M4F K08/0623 page 53...
  • Page 54 DAG-M4F page 54 DAG-M4F K08/0623...
  • Page 55 DAG-M4F DAG-M4F K08/0623 page 55...
  • Page 56 DAG-M4F page 56 DAG-M4F K08/0623...
