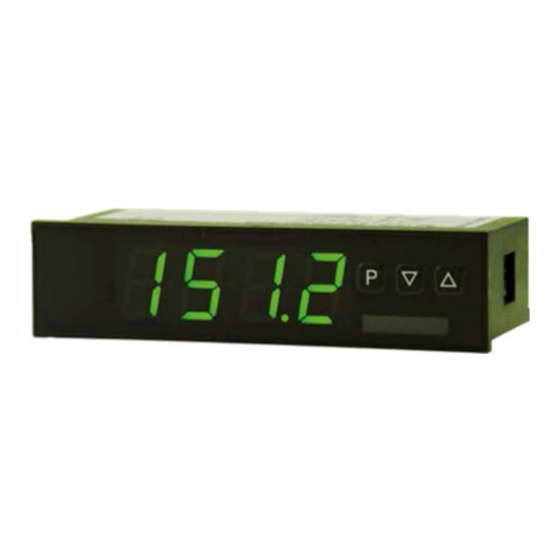

Digital indicating unit for panel mounting

Advertisement

Quick Links

Operating Instructions
for
Digital Indicating Unit
for Panel Mounting
Model: DAG-A3V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG-A3V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kobold DAG-A3V

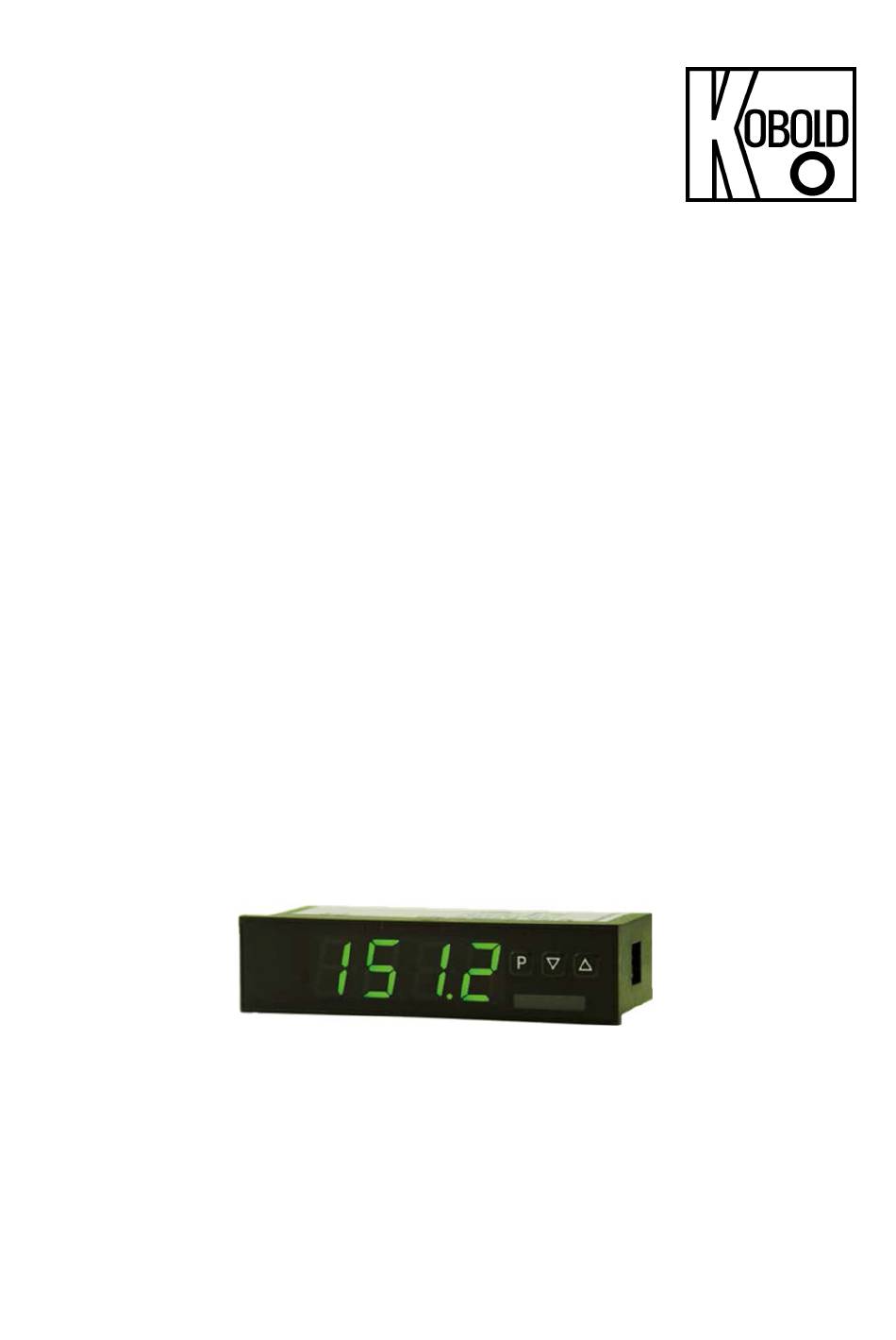

  • Page 1 Operating Instructions Digital Indicating Unit for Panel Mounting Model: DAG-A3V...
  • Page 2: Table Of Contents

      EU Declaration of Conformance ..............19     UK Declaration of Conformity ..............20     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 DAG-A3V K06/1222...
  • Page 3: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
  • Page 4: Assembly

    Check the seal to make sure it fits securely. Click the fixing elements back into place and tighten the clamping screws by hand. Then use a screwdriver to tighten them another half a turn. CAUTION! The torque should not exceed 0.1 Nm! page 4 DAG-A3V K06/1222...
  • Page 5: Electrical Connection

    DAG-A3V 6. Electrical Connection Type DAG-A3V0 Type DAG-A3V3 supply 230 VAC supply 24 VDC galv. isolated Connection examples: Below you find some connection examples, which demonstrate some practical applications: DAG-A3V K06/1222 page 5...
  • Page 6: Function Description And Operation

    Adjustments made at the parameterization level should be always confirmed by pressing the [P] key to save them. However, the display automatically saves all adjustments and then switches to operation mode if no further keys are pressed within 10 seconds. page 6 DAG-A3V K06/1222...
  • Page 7: Setting Up The Device

    8.2 Standard parameterization: To be able to parameterize the display, press the [P] key in operating mode for 1 second. The display then changes to the menu level with the first menu item TYPE. DAG-A3V K06/1222 page 7...
  • Page 8: Programming Interlock Run

    8.3 Programming interlock RUN 8.4 Extended parameterization By pressing the [▲] & [▼] buttons during standard parameterization for one second, the display switches to the extended parameterization mode. Operation is the same as in standard parameterization. page 8 DAG-A3V K06/1222...
  • Page 9 DAG-A3V DAG-A3V K06/1222 page 9...
  • Page 10 DAG-A3V page 10 DAG-A3V K06/1222...
  • Page 11 DAG-A3V DAG-A3V K06/1222 page 11...
  • Page 12: Reset To Default Values

    • With reset, the default values of the program table are loaded and used for subsequent operation. This puts the unit back to the state in which it was supplied. Caution! All application-related data are lost page 12 DAG-A3V K06/1222...
  • Page 13: Functional Principle Of The Switching Points

    “low” The setpoint S1-S2 is “on” below the threshold and switched “off” on reaching the threshold. Alarms / optical switching point display An activated switching point can be optically indicated by flashing of the 7-segment display. DAG-A3V K06/1222 page 13...
  • Page 14: Technical Information

    DAG-A3V 11. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com...
  • Page 15: Safety Advice

    Please read the following safety advice and the assembly chapter 2 before installation and keep it for future reference. Proper use The DAG-A3V-device is designed for the evaluation and display of sensor signals. Danger! Careless use or improper operation can result in personal injury and/or damage to the equipment.
  • Page 16 • Galvanic insulated potentials within one complex need to be placed on a appropriate point (normally earth or machines ground). So, a lower disturbance sensibility against impacted energy can be reached and dangerous potentials, that can occur on long lines or due to faulty wiring, can be avoided page 16 DAG-A3V K06/1222...
  • Page 17: Error Elimination

    The device does not react as expected. • If you are not sure if the device has been parameterised before, then follow the steps as written in chapter 6 and set it back to its delivery status. DAG-A3V K06/1222 page 17...
  • Page 18: Disposal

    (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 18 DAG-A3V K06/1222...
  • Page 19: Eu Declaration Of Conformance

    DAG-A3V 16. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit for Panel Mounting Model: DAG-A3V to which this declaration relates is in conformity with the standards noted below:...
  • Page 20: Declaration Of Conformity

    DAG-A3V 17. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Indicating Unit for Panel Mounting Model: DAG-A3V to which this declaration relates is in conformity with the standards noted below:...
