DVC7K Digital Valve Controllers
October 2023
2. Attach the magnet assembly to the actuator shaft. At mid‐travel, the flats on the magnet assembly should be
approximately parallel to the channel on the back of the DVC7K housing, as shown in figure 14.
3. Install the mounting bracket on the actuator.
4. Attach the digital valve controller to the mounting bracket using the 4 mounting bolts, as shown in figure 13.
5. Check for clearance between the magnet assembly and the DVC7K feedback slot.
6. Proceed to Step 2—Connect the Pneumatic Tubing on page 17.

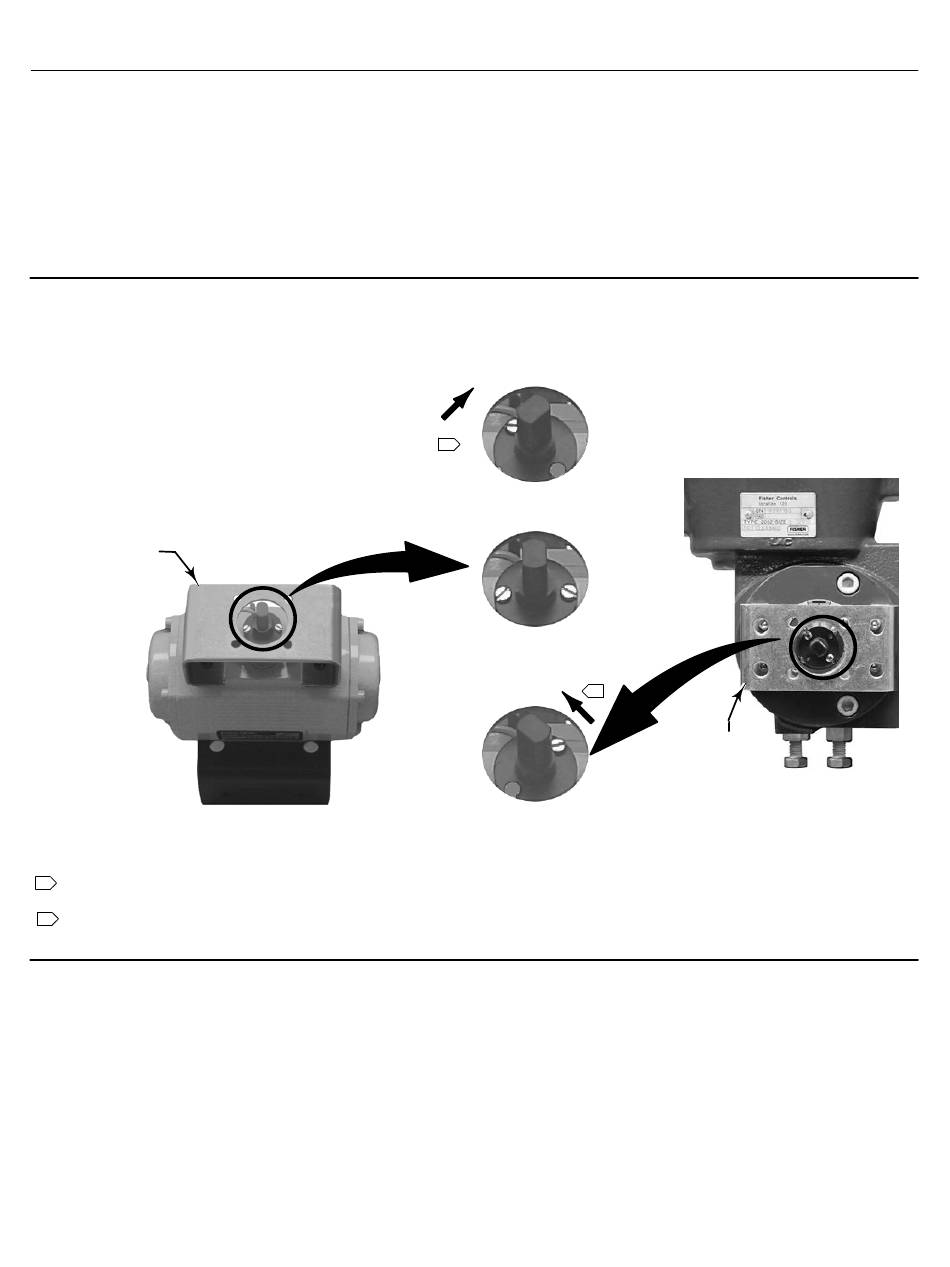

Figure 14. Magnet Assembly Orientation
MOUNTING
BRACKET
NOTES:
1 IF THE ACTUATOR IS STROKED ALL THE WAY TO THE RIGHT OR CLOCKWISE, ATTACH THE
MAGNET ASSEMBLY SO IT POINTS TO THE UPPER RIGHT CORNER OF THE INSTRUMENT.
2 IF THE ACTUATOR IS STROKED ALL THE WAY TO THE LEFT OR COUNTERCLOCKWISE, ATTACH
THE MAGNET ASSEMBLY SO IT POINTS TO THE UPPER LEFT CORNER OF THE INSTRUMENT.
16
1
ORIENTATION AT ONE
TRAVEL EXTREME
ORIENTATION AT MID‐TRAVEL
(FLATS PARALLEL TO 4400
HOUSING CHANNEL)
2
W8836‐1A
W8836‐1B
ORIENTATION AT THE
OTHER TRAVEL EXTREME
Quick Start Guide
D104766X012
MOUNTING
BRACKET
