PRECISION ANALOG TEMPERATURE SENSOR EXPANSION BOARD KIT
O
CY8CKIT-025 PSoC Precision Analog Temperature Sensor Expansion Board Kit Contents
Kit DVD
Omega Thermocouple
K-type
Wires
2N3904 NPN
Transistors

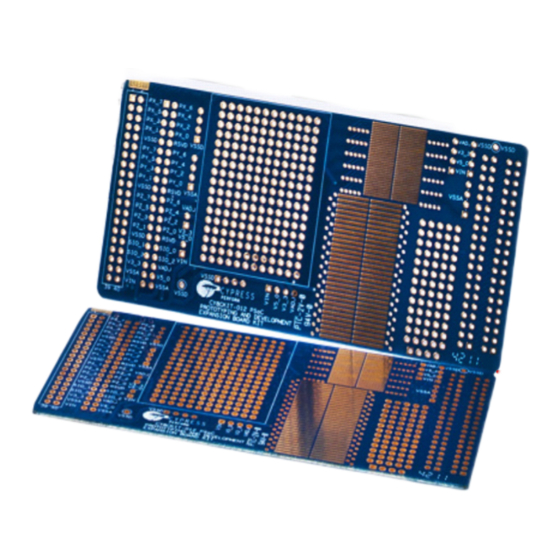

Prototype Headers for
CY8CKIT-012 Board
1
Install Software
1. Insert the kit DVD and install the kit software.
2. Refer to the CY8CKIT-025 Kit Guide for
detailed installation instructions.
3. The projects will be installed at C:\Program
Files\Cypress\PSoC Precision Analog
EBK\2.0\.
QUICK START GUIDE
Quick Start
Guide
CY8CKIT-012
Prototype Boards
Screwdriver
CY8CKIT-025 Board
Thermocouple Section
Diode
Section
Thermistor Section
2
Board Setup
1. Verify that jumper J6 is installed for RTD
measurement.
2. Verify that jumper J5 is installed between pins
2 and 3 to use the thermistor on board.
2X20 Pin
Connector for
Development Kit
Interface
RTD Section
