Summary of Contents for Harken Radial Winch 70.2 ST

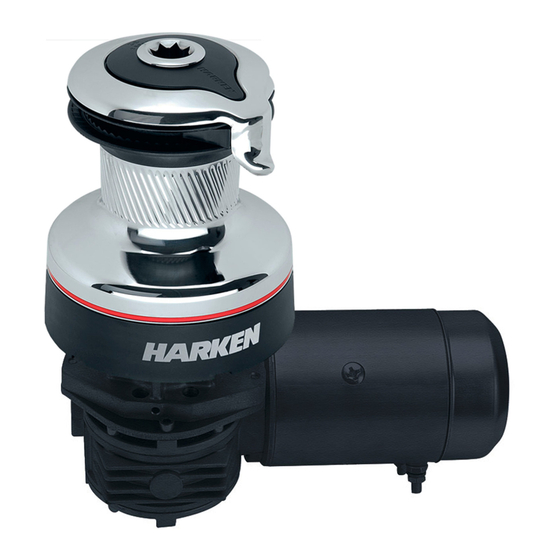

- Page 1 Installation and Maintenance Manual MRW-G Radial Winch 70.2 ST...
- Page 2 Installation Procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Radial Winch 70.2 STA, STC, STCW Parts List Radial Winch 70.2 STA Radial Winch 70.2 STC...
-
Page 3: Technical Characteristics
® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it ® This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation Procedure
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. Harken does not supply the screws needed to install the winch since these may vary depending ®... - Page 5 Torque to apply when assembling 2. Slide off the assy socket n°30 and the cover 1. Unscrew the central screw ( 2Nm/18 in-lb) 3. Unscrew the three screws n°28 4. Remove the self-tailing arm n°27 by rotating and lifting it. ( 4Nm/35 in-lb) Install the winch on the deck in the position you have chosen, keeping in...
- Page 6 Follow steps below only to install the winch using hexagonal headed bolts 6. Completely unscrew the three screws n° 28 7 . Remove the stripper arm housing n°21 8. Slide out the central shaft n°19 9. Unscrew the 6 hex screws n°17 ( 20Nm/177 in-lb) Install the winch on the deck in the position you have chosen, keeping in...
- Page 7 B. Remove the winch and drill the six 8.5 mm diameter holes. C. Bolt the base of the winch to the deck using six M8 bolts (not supplied by Harken®), correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
-
Page 8: Maintenance
Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken Tech Service at techservice@harken.it ®... - Page 9 Carry out Installation procedure (page 5) as shown in the paragraph on winch installation and then do the following: 6. Completely unscrew the three screws n° 28 7 . Remove the stripper arm housing n°21 8. Slide out the central shaft n°19 9.
- Page 10 12. Remove the gear n°2 13. Remove the idler and pinion n°14 14. Remove roller bearings n°15 15. Remove the pawls n°11 16. Remove the gear n°10 17 . Remove roller bearings n°12 Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
- Page 11 If it is necessary to replace any jaws of the winch, proceed as follows: I. Unscrew the 4 screws n°26 II. Remove the jaws n°23 ( 4Nm/35 in-lb) Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back any balls, push balls in the race (as shown below): Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
- Page 12 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
- Page 13 Hold the spring closed and slide the pawl into its housing. Once in position, check that the pawls can be easily opened and closed with a finger. In case of doubt concerning the assembly procedure contact Harken Tech Service: ® techservice@harken.it Installation and Maintenance Manual - Mod.G...
-
Page 14: Ordering Spare Parts
Harken® limited worldwide warranty - Ordering spare parts Harken limited worldwide warranty ® Refer to the Harken Limited Worldwide Warranty in the Harken Catalogue and on the website ® ® www.harken.com Ordering spare parts Spare parts can be requested from Harken ®... -
Page 15: Exploded View
Exploded view Exploded view Radial Winch 70.2 STA, STC, STCW Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch... - Page 16 Radial Winch 70.2 STA, STC, STCW ..Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
-
Page 17: Parts List
Housing W70 S415580085 Bushing Ø12xØ35x9 Support Bushing W70 Bushing Ø22xØ25x8.5 S4130900A7 Screw M8x25 UNI 5931 M0606303 Roller Bearing Ø102xØ114x26 A74147500 *Available with service kit; see website www.harken.com **Winch product sticker Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch... - Page 18 Housing W70 Bushing Ø12xØ35x9 S415580085 Support Bushing W70 S4130900A7 Bushing Ø22xØ25x8.5 Screw M8x25 UNI 5931 M0606303 Roller Bearing Ø102xØ114x26 A74147500 *Available with service kit; see website www.harken.com **Winch product sticker Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
- Page 19 Housing W70 S415580085 Bushing Ø12xØ35x9 Support Bushing W70 S4130900A7 Bushing Ø22xØ25x8.5 Screw M8x25 UNI 5931 M0606303 Roller Bearing Ø102xØ114x26 A74147500 *Available with service kit; see website www.harken.com **Winch product sticker Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
- Page 20 Radial Winch 70.2 STBBB, STCCC Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
- Page 21 Radial Winch 70.2 STBBB, STCCC Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
- Page 22 Housing W70 S415580085 Bushing Ø12xØ35x9 Support Bushing W70 S4130900A7 Bushing Ø22xØ25x8.5 Screw M8x25 UNI 5931 M0606303 Roller Bearing Ø102xØ114x26 A74147500 *Available with service kit; see website www.harken.com **Winch product sticker Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
- Page 23 Housing W70 S415580085 Bushing Ø12xØ35x9 Housing Bushing W70 S4130900A7 Bushing Ø22xØ25x8.5 Screw M8x25 UNI 5931 M0606303 Roller Bearing Ø102xØ114x26 A74147500 *Available with service kit; see website www.harken.com **Winch product sticker Installation and Maintenance Manual - Mod.G 70.2 ST Radial Winch...
