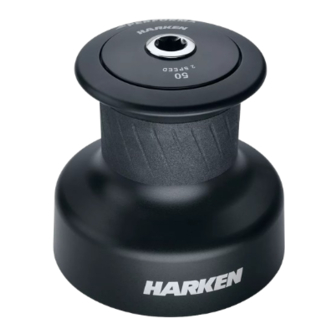

- Page 1 Installation and Maintenance Manual MRPW-C Performa Winch 50.2 PTP ™...
- Page 2 Maximum working load Outline Installation Installation procedure Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 50.2 PTP Performa Winch Installation and Maintenance Manual - Mod.C...
-
Page 3: Technical Characteristics
In case of doubt the Harken ® Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation
It is the installer's responsibility to choose the correct screws ® taking account of the loads they will have to bear. Harken assumes no responsibility for incorrect installation of its winches or for an incorrect choice of mounting screws. - Page 5 Procedure To install the winch, remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
- Page 6 B. Remove the winch and drill the five 8.2 mm diameter holes. ® C. Bolt the base of the winch to the deck using five M6 bolts (not supplied by Harken ), correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
-
Page 7: Maintenance
Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken ® Tech Service at techservice@harken.it 50.2 PTP... - Page 8 Disassembly procedure Tools needed One medium flat-bladed screwdriver A number five hex key Rags To identify the various parts refer to the exploded view at the end of this Manual. Torque to be applied in assembly phase Carry out procedure as shown in the paragraph on winch installation and then do the following: 4.
- Page 9 8. Remove the gear n°15 9. Remove the washer n°13 10. Remove the gearing n°9 and remove the pawls n°7 . To facilitate the operation press the spring against the pawl with a blade. 11. Slide off gear n°2 12. Remove the pinion n°10. 50.2 PTP Performa Winch...
- Page 10 13. Slide off gear n°5 14. Remove the washer n°4. Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back any balls, push balls in the race (as shown below): Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
- Page 11 ® Apply Harken grease: 1. on assy socket screw ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE Harken grease to apply on all ®...
-
Page 12: Ordering Spare Parts
Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it ® Harken limited worldwide warranty Refer to the Harken ®... - Page 13 Manufacturer Harken Italy S.p.A. ® Tech Service Via Marco Biagi, 14 Email: techservice@harken.it 22070 Limido Comasco (CO) Italy Tel: (+39) 031.3523511 Customer Service Fax: (+39) 031.3520031 Tel: (+39) 031.3523511 Email: info@harken.it Email: info@harken.it Web: www.harken.com Headquarters Harken , Inc. ®...
-
Page 14: Exploded View
Exploded view 1/2 50.2 PTP Performa Winch Installation and Maintenance Manual - Mod.C ™... - Page 15 Exploded view 2/2 50.2 PTP Performa Winch Installation and Maintenance Manual - Mod.C ™...
-
Page 16: Parts List
Assy Housing Winch 50 Housing Winch 50 S414900080 Bushing Ø12xØ14x8 S413330085 Bushing Ø12xØ14x11 S4133200B3 Bushing for support M0606303 Screw M8x25 UNI 5931 *Available with service kit; see website www.harken.com **Winch product sticker 50.2 PTP Performa Winch Installation and Maintenance Manual - Mod.C ™...
