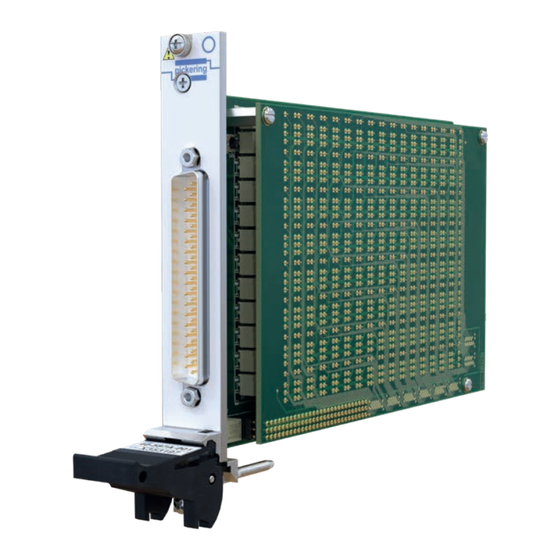

Pxi 2 a 1-pole very high density matrix module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
40-587B User Manual
PXI 2 A 1-Pole Very High Density Matrix Module
pickeringtest.com
Issue 1.0 June 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-587B and is the answer not in the manual?

Questions and answers

Related Manuals for Pickering 40-587B

Summary of Contents for Pickering 40-587B

  • Page 1 40-587B User Manual PXI 2 A 1-Pole Very High Density Matrix Module pickeringtest.com Issue 1.0 June 2022...
  • Page 2 Pickering Interfaces. Technical details contained within this publication are subject to change without notice. ISO 9001 Reg No. FM38792 PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B REED RELAY MODULE 40-110/115/120/125 Page (II) Page (II)
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    Pour indiquer que des appareils sensibles present and handling precautions should be statiques sont présents et les précautions de followed. manipulation doivent être suivies. PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B REED RELAY MODULE 40-110/115/120/125 Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Using IVI Driver, Direct I/O Driver or VISA Driver ....4.3 Section 5 Connector Information ..............5.1 Section 6 Troubleshooting ................6.1 Section 7 Maintenance Information ............7.1 Switching System Test Tools ..........7.2 Relay Look-Up Tables ............7.3 PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page (V)
  • Page 6 THIS PAGE INTENTIONALLY BLANK PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page (VI)

  • Page 7: Warnings And Cautions

    Blanking panels are signaux d’E/S utilisateur qui peuvent être présents. available to order from Pickering in a variety of slot Les obturateurs sont disponibles sur commande chez widths. If the product is not used in this manner for Pickering dans une variété...
  • Page 8 “emergency stop” d’urgence” situé sur l’avant de l’unité. button situated on the front of the unit. PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page (VIII) GENERAL PURPOSE 2A RELAY MODULE 40-131/132 Page (VIII)

  • Page 9: Technical Specification

    Test Tools Hardware Interlock Option y 3 Year Warranty The 40-587B is a 256 crosspoint PXI matrix with single Pickering’s Range of 256 Crosspoint pole switching. The matrix is configured as 16x16 using 2 A PXI Matrix Modules electro-mechanical relays with 2 A current handling.
  • Page 10 Relay Driver(s) multiple cards. For further details please refer to the Hardware Interlock section Interlock Signal Routing Diagram for 40-587B within the user manual. Version With Hardware Interlock Option pickeringtest.com PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 1.2...
  • Page 11 90-007D 37-pin D-type Connector Accessories data sheets where a complete list and documentation can be found for accessories, or refer to the Connection Solutions catalog. pickeringtest.com PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 1.3...
  • Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 13 1-Pole HD Matrix, 40-587B Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os The VISA driver is also compatible with Real-Time Operating Systems such as LabVIEW RT.

  • Page 14: Minimum Switch Current

    MINIMUM SWITCH CURRENT Minimum switch current for the 40-587B is dependent upon usage. The relay type used in this module has gold plated contacts, a metal that does not tarnish with time and is usually considered well suited for low level switching.

  • Page 15: Functional Description

    16x8 1-pole Matrix +12V Inter-PCB Connection Electro-mechanical Relays RL129-256 Relay Drivers U19-26 16x8 1-pole Matrix Daughter Board Figure 2.1 - 2 Amp 1-Pole VHD Matrix Module 40-587B: Functional Block Diagram PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 2.1...
  • Page 16 HARDWARE INTERLOCK The 40-587B-001-HI module has an interlock feature that can be used to return the relays (assuming they are fully functional) to their default unpowered state if the interlock connector is not in place or if the connection between the two interlock pins is open-circuit.
  • Page 17 MODULE Enable MODULE Status Status Status PXI Gnd PXI Gnd PXI Gnd To Other 40-587B-001-HI Modules Figure 2.2 - All 40-587B-001-HI Modules Enabled by a Common Signal MASTER +3.3V +3.3V +3.3V 40-587B-001-HI 40-587B-001-HI 40-587B-001-HI HIGH DENSITY HIGH DENSITY HIGH DENSITY...
  • Page 18 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 2.4...

  • Page 19: Installation

    VII. à la Page VII. Ensure that there is adequate ventilation. Assurez-vous que la ventilation est adéquate. PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B REED RELAY MODULE 40-110/115/120/125 Page 3.1 Page 3.1...
  • Page 20 9. Pour l’installation modulaire LXI de Pickering Interfaces, il n’est pas nécessaire d’utiliser une séquence de mise sous tension particulière. Page 3.2 PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B REED RELAY MODULE 40-110/115/120/125 Page 3.2...

  • Page 21: Software Installation

    Pickering Test Panels application. le menu Programs >> Pickering. En l’absence de LabVIEW, le Runtime Engine est nécessaire pour supporter l’application Test Panels de Pickering. PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B REED RELAY MODULE 40-110/115/120/125 Page 3.3 Page 3.3...

  • Page 22: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.

  • Page 23: Programming Guide

    SECTION 4 - PROGRAMMING PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 24: Programming The Very High Density Matrix

    PROGRAMMING THE VERY HIGH DENSITY MATRIX The 40-587B is a single pole switching matrix with 16 connections on the X-axis and 16 connections on the Y-axis. Connections are made by operating the relays at the crosspoints between X and Y lines allowing single X-Y connections, or X-X connections using a Y line as a path.

  • Page 25: Using Ivi Driver, Direct I/O Driver Or Visa Driver

    USING THE IVI DRIVER, DIRECT DRIVER OR VISA DRIVER This section provides some code fragments which show how to control the 40-587B Very High Density Matrix using the IVI Driver, Direct I/O Driver or the VISA Driver. Once the drivers are installed the manual “Sys40Prg.pdf” and driver help files which fully describes these functions can be found in the Pickering folder(s) or the Pickering entries on your Start Menu.
  • Page 26 SECTION 4 - PROGRAMMING GUIDE pickering Using The Interlock Function The following functions are applicable to the 40-587B-001-HI module fitted with the optional hardware interlock. Get the status of Interlock Use the attribute “ATTR_INTERLOCK_STATUS”, to the get the status of the interlock.
  • Page 27 SECTION 5 - CONNECTOR INFORMATION FP_GND FP_GND FP_GND FP_GND Figure 5.1 - 2A 1-Pole 16x16 Matrix Module 40-587B-001: 37-pin D-type Male Connector Pinout (Viewed From Front of Module) PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 5.1...
  • Page 28 Applicable to 40-587B-001-HI Module With Hardware Interlock Option (4-pin 00 Series Female Connector Viewed From Front of Module) Note: the maximum conductor size for the interlock connector is 30AWG. PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 5.2...

  • Page 29: Troubleshooting

    Pickering: support@pickeringtest.com, si possible, avec copie du rapport de diagnostic. Page 6.1 PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B REED RELAY MODULE 40-110/115/120/125 Page 6.1...

  • Page 30: Maintenance Information

    OUTILS DE TEST DE SYSTEME DE SWITCHING SYSTEM TEST TOOLS COMMUTATION Please refer to Section 7 - Maintenance Information Référez-vous à la Section 7 - Information sur l’entretien PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 6.2 Page 6.2 REED RELAY MODULE 40-110/115/120/125...
  • Page 31 à described in the manual for the Modular LXI Chassis. niveau. C’est un processus simple qui est décrit dans le manuel du châssis LXI modulaire. PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 7.1...

  • Page 32: Relay Look-Up Tables

    Utilisateurs eBIRST, les outils de test de système de commutation n’ont pas besoin d’utiliser cette fonction pour localiser les relais défectueux. PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 7.2...
  • Page 33 RL121 RL26 RL58 RL90 RL122 RL27 RL59 RL91 RL123 RL28 RL60 RL92 RL124 RL29 RL61 RL93 RL125 RL30 RL62 RL94 RL126 RL31 RL63 RL95 RL127 RL32 RL64 RL96 RL128 PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 7.3...
  • Page 34 RL249 RL154 RL186 RL218 RL250 RL155 RL187 RL219 RL251 RL156 RL188 RL220 RL252 RL157 RL189 RL221 RL253 RL158 RL190 RL222 RL254 RL159 RL191 RL223 RL255 RL160 RL192 RL224 RL256 PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 7.4...
  • Page 35 RL90 RL91 RL92 RL93 RL94 RL95 RL96 RL128 BIRST Relay Spare Figure 7.5 - 40-587B Component Layout - Mother Board Figure 7.6 - 40-587B Component Layout - Daughter Board PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 7.5...
  • Page 36 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK PXI 2A 1-POLE VERY HIGH DENSITY MATRIX - 40-587B Page 7.6...
