Slime 40048 - Pro Series Super Duty Tire Inflator Manual

Safety Information

READ ALL INSTRUCTIONS CAREFULLY
FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE, PERSONAL INJURY OR PROPERTY DAMAGE.

HOT • DO NOT HOLD IN HAND WHILE OPERATING, PLACE INFLATOR ON A HARD, CLEAN SURFACE • WEAR GLOVES AND SAFETY GLASSES WHILE OPERATING INFLATOR

1. DO NOT use inflator continuously for more than 10 minutes. Allow unit to cool approximately 15 minutes between uses. Do not leave inflator unattended.
2. DO NOT run vehicle while inflator is operating. Engine must be turned OFF. Always ensure air hose connector is secured on the valve stem for proper inflation.
3. ALWAYS use a pressure gauge to check actual tire pressure. DO NOT OVERINFLATE!
4. Read all instructions thoroughly before use. Failure to follow warning instructions can result in fire, injury to persons or property damage.
5. For use with 12-volt DC power batteries.

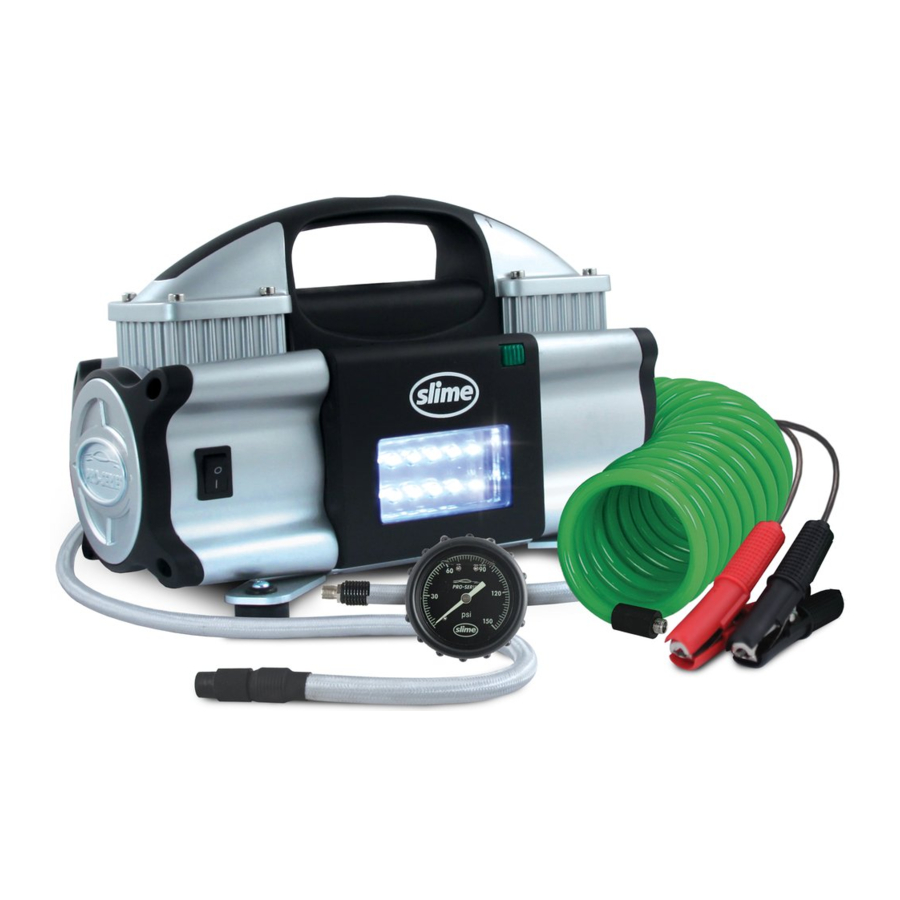

Overview of the tool

• DUAL PISTON MOTOR
  For super fast inflation
• VIBRATION ISOLATING BASE
  Steady and quiet
• DIRECT CONNECT TO BATTERY
  Bolts directly to vehicle
• NYLON BRAIDED HOSE
• MULTI-USE HIGH PRESSURE LIQUID-FILLED GAUGE
  For independent and inline use
• Gauge can be used independently
• Or twist connect to hose for inline use
• REMOVABLE MAGNETIC LED LIGHT
  For nighttime emergencies
  Slide up to remove light

Technical information

* (0–35 PSI, Standard Tire: P195/65 R15)

TO INFLATE TIRES

1. Attach twist-connect air fitting to inflator, then screw the opposite end connector onto tire's valve stem

2. Attach battery clips to battery, positive side first.

3. Switch inflator "ON", and inflate tire to manufacturer's recommended air pressure.
   When proper pressure is reached, turn off inflator and disconnect power cord, ground side first.


Replace batteries on back of light.

TROUBLESHOOTING

• Inflator fails to operate when plugged in:

1. Thermal break may have "blown".
2. Allow inflator to cool for 25 mintues, then retry.

• Inflator does not start:

1. Ensure connection is secure.
2. Make sure connectors and terminals are free of corrosion, debris, etc.

• Inflator runs but does not inflate:

1. Be sure the connector is tightly screwed on the valve stem as far as possible.
2. Check tire for leaks, and check hose for breaks and leaks at fittings.

• Inflator runs slowly:

1. Overheated from excessive use, shut it off and allow to cool for 25 minutes
2. Voltage too low, check condition of battery

NOTE: If tire is totally deflated, it is possible that the tire could separate from the rim allowing air to leak out when trying to inflate. In the event this situation occurs, you will have to jack up the tire prior to inflation.

Keep inflator out of reach of children. Always use a tire gauge to check the actual pressure in tires. Do not over-inflate tire.

Visit www.slime.com for instructions to mount inflator to vehicle.

QUESTIONS OR COMMENTS: Call +1-805-489-0490 or visit www.slime.com
ITW Global Tire Repair • 125 Venture Drive, Suite 210, San Luis Obispo, CA 93401 USA
Slime® is a trademark of Illinois Tool Works, Inc., registered in the U.S. and other countries.
