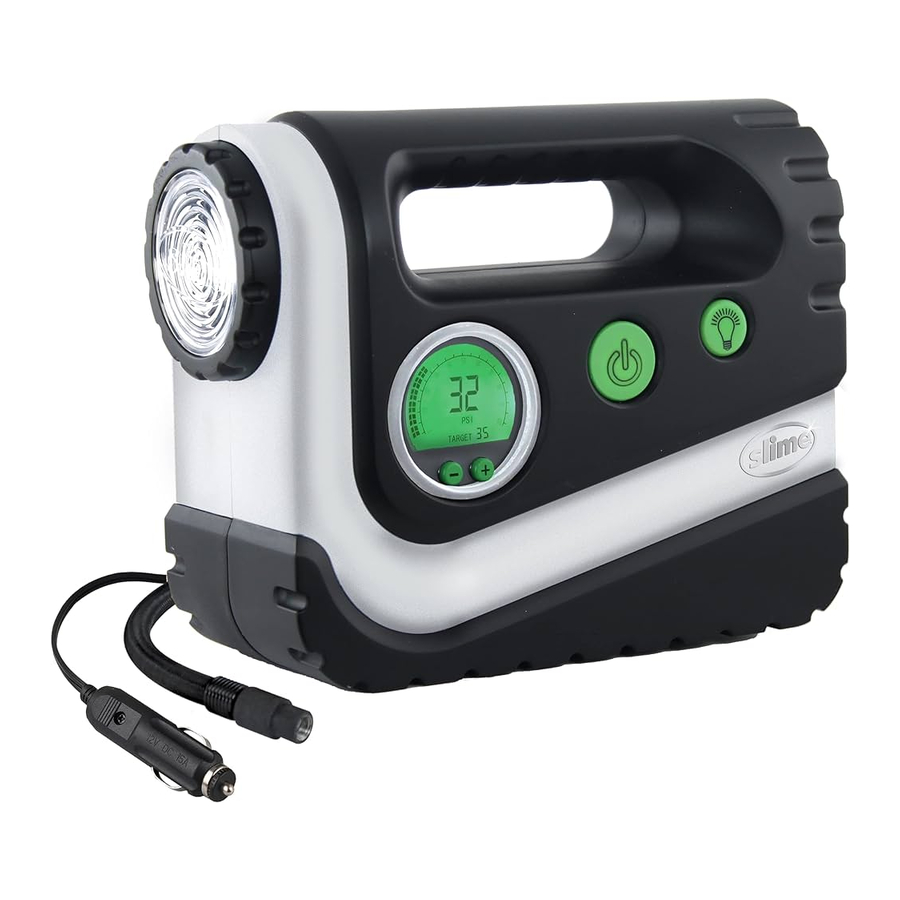

Slime 40047 - Rugged Digital Tire Inflator Manual

Overview

ATTENTION! READ ALL INSTRUCTIONS CAREFULLY
FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE, PERSONAL INJURY OR PROPERTY DAMAGE.
BRIGHT MULTI-FUNCTION LED LIGHT

• Illuminates tire and surrounding area
• Blinks hazard red for oncoming vehicles

POWER SOURCE

• Plugs into 12 volt power outlet (10' length (3m)

TWIST CONNECT AIR HOSE

• 2' length (0.6m)

INFLATE RIGHT™ TECHNOLOGY

• Inflator automatically shuts off when the set pressure level is achieved
• Guarantees perfect pressure with every use

LIGHT SWITCH

• Toggles between white light and blinking hazard red

TECH SPECS

* (0-35 PSI, Standard Car Tire: 195/65 R15)

HOT

• DO NOT HOLD IN HAND WHILE OPERATING
• PLACE INFLATOR ON A HARD, CLEAN SURFACE.

1. DO NOT run vehicle while inflator is operating. You may need to be in "accessory" or "on" position. Please make sure emergency brake is set and car is in park.
2. DO NOT use inflator continuously for more than 10 minutes. Allow unit to cool approximately 25 minutes between uses. Do not leave inflator unattended.
3. ALWAYS use a pressure gauge to check actual tire pressure. DO NOT OVERINFLATE!
4. Read all instructions thoroughly before use. Failure to follow warning instructions can result in fire, injury to persons or property damage.
5. For use with 12 volt DC power outlets rated 15 amps or higher. Do not use with older 8 amp cigarette lighter receptacles.
6. Keep inflator out of reach of children.

INFLATE TIRES

1. Screw air hose connector onto tire's valve stem.


2. Plug power cord into 12 volt accessory power outlet.


3. Press on switch to turn on inflator. Inflate tire to manufacturer's recommended air pressure.* When proper pressure is reached, press off switch to turn off inflator. Unplug power cord and remove air hose connector.


*NOTE: Correct tire pressure can be found in vehicle owner's manual or on driver's side door jamb.

INFLATE RIGHT™ TECHNOLOGY INSTRUCTIONS

1. Hold the + or – button for approximately 5 seconds until the display flashes. Set the required pressure using the + or – buttons, then wait 2-3 seconds. The display will show the pressure value to which the tire will be inflated.
2. Push the ON/OFF button for the inflator to start. When the pressure gauge reaches the pre-set value, the inflator will automatically switch off.
3. The ON/OFF button can be used to override the pre-set pressure value if required.

TROUBLESHOOTING

Inflator will not turn on

(try one or all of the following):

1. Check to see if the tire pressure set point on the digital gauge is set to a lower PSI than your tire currently is reading (i.e., the digital gauge is set to 15psi but your tire is at 20psi; in this scenario, the inflator will not turn on) Refer to the digital gauge operating instructions and set the PSI to the correct tire pressure.
2. Check the power plug and push it firmly into the receptacle, twist back and forth.
3. Check receptacle and plug terminals for dirt, or debris. (Use a non-conductive probe, not fingers or metal).
4. Check vehicle power outlet fuse, should be 15 amps minimum.
5. Check the fuse, located in the plug adaptor, it may have blown. Unscrew the tip of the plug adaptor, remove fuse, and inspect (if necessary, replace fuse with one of the same amperage).

Inflator runs but does not inflate

1. Be sure the connector is fully tightened on the valve stem.
2. Check tire for leaks, and check hose for breaks and leaks at fittings.

Inflator runs slowly:

1. Overheated from excessive use, shut it off and allow to cool for 25 minutes.
2. Voltage too low, check condition of vehicle battery.

NOTE: If tire is totally deflated, it is possible that the tire could separate from the rim allowing air to leak out when trying to inflate. In the event this situation occurs, you will have to jack up the tire prior to inflation.

Keep inflator out of reach of children. Do not over-inflate tire.
Dispose of this product at an e-waste recycling collection point or facility. Do not place in the trash or standard recycling receptacle.
QUESTIONS OR COMMENTS: Call +1-805-489-0490 or visit www.slime.com
ITW Global Tire Repair • 125 Venture Drive, Suite 210, San Luis Obispo, CA 93401 USA
Slime® is a trademark of Illinois Tool Works, Inc., registered in the U.S. and other countries.
