Slime 40058 - Vacuum Inflator 2 in 1 Manual

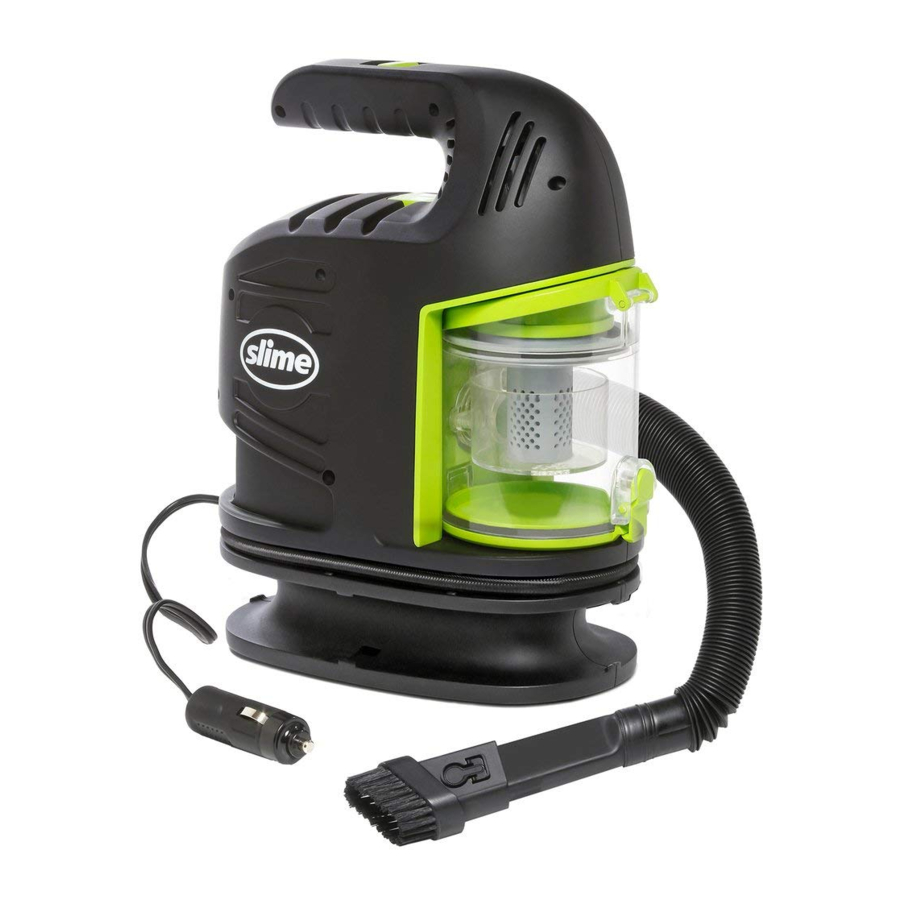

DEVICE OVERVIEW

POWER SWITCH

• Toggle between Vacuum/OFF/Inflator

DIGITAL GAUGE

• 0-99PSI range

INFLATE RIGHT™ TECHNOLOGY

• Inflator automatically shuts off when the set pressure level is achieved
• Perfect pressure with every use

EXPANDABLE VACUUM HOSE

• Expands to 32.25 in. (820mm) long
• Crevice/dusting tool attachment included

VACUUM HOSE STORAGE

• Wraps around inflator for easy storage.

POWER SOURCE

• Plugs into 12 volt, 15 amp power outlet
• 10 ft. (3m) length

ATTENTION
READ ALL INSTRUCTIONS CAREFULLY
FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE, PERSONAL INJURY OR PROPERTY DAMAGE.

INFLATION INSTRUCTIONS

Inflation can be used for auto tires, bicycle tires, sports balls, rafts and other inflatables.

1. Screw air hose connector onto tire's valve stem.

2. Plug power cord into 12 volt accessory power outlet.

3. Use the toggle switch to power the inflator by sliding it to the inflator icon. Inflate tire to manufacturer's recommended air pressure. Use the Inflate Right Technology ™ (instructions below) for accurate inflation.

4. When desired pressure* is reached, slide toggle switch to middle "OFF" position to turn off inflator. UNPLUG POWER CORD AND REMOVE AIR HOSE CONNECTOR.


* NOTE: Recommended tire pressure can be found in vehicle owner's manual or on the driver's side door jamb.

INFLATE RIGHT™ TECHNOLOGY INSTRUCTIONS

1. Once inflator hose is attached to the valve stem, hold the + or – button for approximately 2 seconds until the display flashes. Set the required pressure using the + or – buttons, then wait 3 seconds. The display will stop flashing and show the target pressure value to which the tire will be inflated. (Continuously pressing the + or – button will enter into "Fast setting mode", increasing or decreasing the rate of target pressure at an increased speed.)
2. Use the toggle switch to power the inflator by sliding it to the inflator icon to begin inflation.
3. When the pressure gauge reaches the pre-set value, the inflator will automatically stop inflation. Once desired tire pressure is reached, disconnect the air hose, and unplug the power cord.

VACUUM USAGE INSTRUCTIONS

1. Plug power cord into 12 volt accessory power outlet.

2. Remove expandable vacuum hose from base of unit, and insert open end of the vacuum hose into the green suction port on the back of the vacuum unit.

3. The crevice/dusting tool accessory comes attached to the hose. To use crevice tool, push in button lever located on side of dusting tool and slide tool down. The crevice/dusting tool may be removed from the hose if needed by pulling directly off of the hose at base of the dusting tool attachment.

4. Use the toggle switch to power the vacuum by sliding it to the vacuum icon. When finished using the vacuum, slide the toggle switch to the middle "OFF" position to turn vacuum off and unplug power cord. Disconnect the expandable vacuum hose and place in the hose storage area on the base of the unit.


VACUUM CANISTER REMOVAL INSTRUCTIONS

To Remove and Empty Debris Canister:

1. Press the debris canister release button located under the handle and pull the debris canister straight out, away from the unit.

2. To empty the canister, hold it over a trash receptacle, and locate the green release button on the bottom front of the canister. Depress the button and shake out the debris until canister is empty.

3. When debris is removed, close the canister door until green release button snaps closed.

4. Reinstall the canister into the vacuum unit by sliding the canister straight into the unit until seated. An audible click will be heard when the canister is seated properly.


INFLATOR TROUBLESHOOTING

Inflator does not turn ON (try one or all of the following):

1. Check to see if the tire pressure set point on the digital gauge is set to a lower PSI than your tire currently is reading (i.e., the digital gauge is set to 15PSI, but your tire is at 20PSI; in this scenario, the inflator will not turn on). Refer to the digital gauge operating instructions and set the PSI to the correct tire pressure.
2. Check the power plug and push it firmly into the receptacle, twist back and forth.
3. Check receptacle and plug terminals for dirt, or debris. (Use a non-conductive probe, not fingers or metal).
4. Check vehicle power outlet fuse. It should be 15 amps minimum.
5. Check the fuse. It may have blown:
   12V fuse is located in the plug adaptor:
   unscrew the tip, remove fuse, and inspect.
   If necessary, replace fuse with 15A 250V 5mm x 20mm.


Inflator runs but does not inflate:

1. Be sure the connector is fully tightened on the valve stem.
2. Check tire for leaks, and check hose for breaks and leaks at fittings.

Inflator runs slowly:

1. Overheated from excessive use. Shut if off and allow to cool for 25 minutes.
2. Voltage too low. Check condition of vehicle battery.

NOTE: If tire is totally deflated, it is possible that the tire could separate from the rim allowing air to leak out when trying to inflate. In the event this occurs, you will have to jack up the tire prior to inflation.

Keep inflator out of reach of children. Do not over-inflate.

Dispose of this product at an e-waste recycling collection point or facility. Do not place in the trash or standard recycling receptacle.

TECH SPECS

* (0-35PSI, Standard Tire: P195/65 R15)

VACUUM TROUBLESHOOTING

Vacuum does not turn ON (try one or all of the following):

1. Check the power plug and push it firmly into the receptacle, twist back and forth.
2. Check receptacle and plug terminals for dirt, or debris. (Use a non-conductive probe, not fingers or metal).
3. Check vehicle power outlet fuse. It should be 15 amps minimum.
4. Check the fuse. It may have blown:
   12V fuse is located in the plug adaptor: unscrew the tip, remove fuse, and inspect.
   If necessary, replace fuse with 15A 250V 5mm x 20mm.


Vacuum is not picking up debris (try one or all of the following):

1. There may be an object lodged in the vacuum hose, vacuum accessory tip, or vacuum unit itself.
   Unplug from power, remove the vacuum hose and inspect to ensure the unit is clear of blockages. Check the vacuum accessory tip for blockage. If no blockage is found in the hose or tip, check the unit itself for blockage. The debris canister should be removed, and the suction port inspected from both sides. If debris is determined to be stuck in the unit, use a thin flexible item (such as a drinking straw) to remove it. Do not use sharp objects that could damage the unit.
2. The debris canister may not be correctly seated in unit. Remove the debris canister from unit by pulling the debris canister straight out, away from the unit. Reinstall the canister into the vacuum unit by pushing the canister straight into the unit until seated. An audible click will be heard when the canister is seated properly.
3. The vacuum filter may be dirty, restricting flow. To clean, remove the debris canister from unit by pulling the debris canister straight out, away from the unit. Open the top lid, and pull out the green filter retainer. Remove the foam filter from the filter retainer, and rinse both pieces thoroughly with warm water until clean. Allow parts to fully dry, and reassemble.

1. DO NOT run vehicle while inflator is operating. You may need to be in "accessory" or "on" position. Please make sure emergency brake is set and car is in park.
2. Always ensure the valve connector is fully seated to depress the core of the valve stem for proper inflation.
3. DO NOT use inflator continuously for more than 10 minutes. Allow unit to cool approximately 10 minutes between uses. Do not leave inflator unattended.
4. ALWAYS use a pressure gauge to check tire pressure. DO NOT overinflate.
5. Soft inflatables (i.e. rafts, balls, etc.) may not have recommended pressure markings. Be careful not to inflate items beyond their capacity.
6. While operating, never block the inflator input or output.
7. Keep inflator out of reach of children.
8. For use with 12 volt DC power outlets rated 15 amps or higher. Do not use with older 8 amp cigarette lighter receptacles.

QUESTIONS OR COMMENTS:
Call 1-888-457-5463
or visit www.slime.com
