Slime 40029 - 120-Volt Inflator With Gauge Manual

Overview

warning ATTENTION! READ ALL INSTRUCTIONS CAREFULLY
FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE,
PERSONAL INJURY OR PROPERTY DAMAGE.

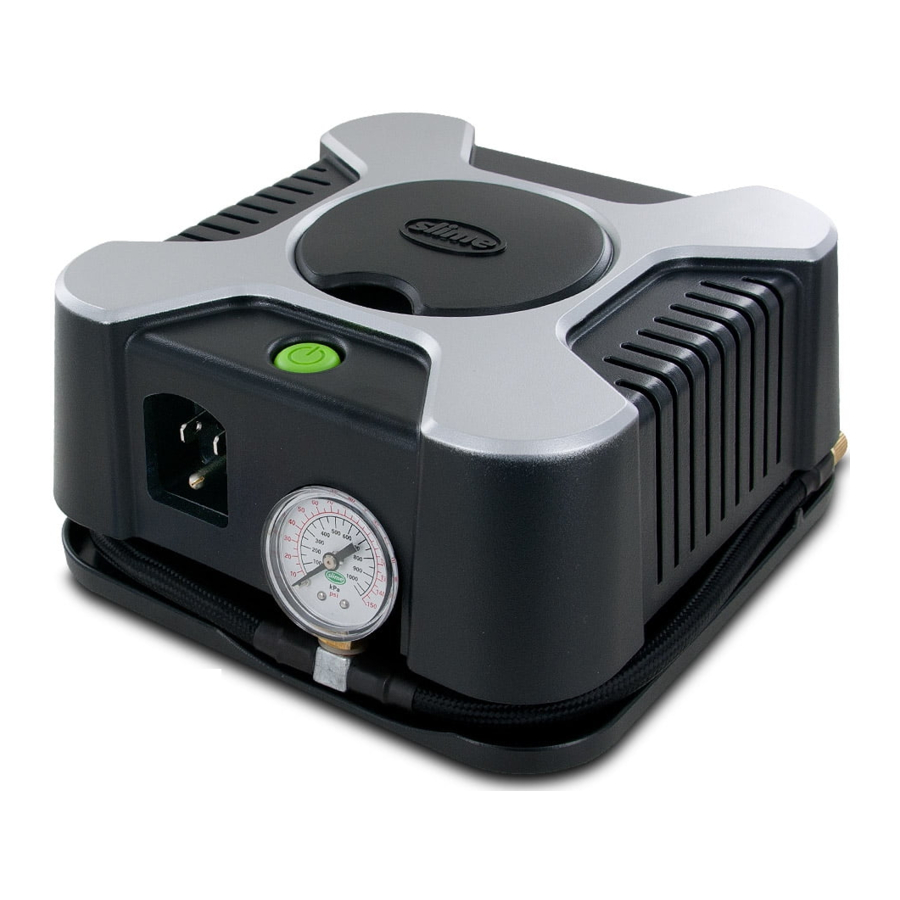

Overview
AIR ADAPTER STORAGE

  • Inflatables adapters snap-inplace for easy access

INFLATOR

  • Powerful
  • Fan-cooled motor

POWER SOURCE

  • Plug any extension cord into a 120V power outlet

DIAL GAUGE

  • Integrated in air hose
  • 0-150 PSI range
  • 0-10.3 BAR range

WALL-MOUNT HOLES

  • Holes on bottom allow for additional storage options

AIR HOSE

  • Wraps around inflator for convenient storage

TECH SPECS

TECH SPECS

* (0-35 PSI, Standard Tire: P195/65 R15)

  • HOT
  • DO NOT HOLD IN HAND WHILE OPERATING
  • PLACE INFLATOR ON A HARD, CLEAN SURFACE.
  1. DO NOT use inflator continuously for more than 10 minutes. Allow unit to cool approximately 25 minutes between uses. Do not leave inflator unattended.
  2. ALWAYS ensure air hose connector is secured on the valve stem for proper inflation.
  3. ALWAYS use a pressure gauge to check tire pressure. DO NOT overinflate.
  4. Keep inflator out of reach of children.
  5. For use with 120 volt outlets only.

INFLATE TIRES

  1. Screw air hose connector onto tire's valve stem.

  2. Plug extension power cord into the inflator. Insert opposite end into a 120 volt wall power outlet.

  3. Press on/off button to turn on inflator. Inflate tire to manufacturer's recommended air pressure.
    * When proper pressure is reached, press on/off button again to turn off inflator. Unplug power cord and remove air hose connector.

*NOTE: Correct tire pressure can be found in vehicle owner's manual or on driver's side door jamb.

TROUBLESHOOTING

Inflator does not turn on

  1. Make sure plug is fully inserted into the inflator and wall outlet.
  2. Make sure the outlet is live by using a known functional electronic device.
  3. Check the extension cord for damaged prongs, frays or breaks.

Inflator runs but does not inflate

  1. Be sure the air hose connector is tightly screwed onto the valve stem.
  2. Check tire for leaks.
  3. Check air hose for breaks and leaks at fittings.
  4. Check tire valve for leaks.
  5. Check valve core for damage.

Inflator runs slowly

  1. The inflator may have overheated from excessive use. Shut it off and allow it to cool for 25 minutes.

NOTE: If tire is totally deflated, it is possible that the tire could separate from the rim allowing air to leak out when trying to inflate. In the event this occurs, it may be necessary to jack up the tire prior to inflation.

GROUNDING INSTRUCTIONS: Use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that accepts the plug on the product. Make sure your extension cord is not damaged. When using an extension cord, be sure to use one heavy enough to carry the current your product draws. For lengths less than 100 ft, 18 AWG extension cords shall be used. An undersized cord results in a drop in line voltage and loss of power and overheating.

QUESTIONS OR COMMENTS: Call 888-45-SLIME or visit www.slime.com
Accessories Marketing, Inc, a division of Illinois Tool Works, Inc. 125 Venture Drive, Suite 210, San Luis Obispo, CA 93401 USA Slime® is a trademark of Illinois Tool Works, Inc., registered in the U.S. and other countries.
