- Page 1 Installation Manual Monitoring system 4G-STICK for Autarco Inverters Installation Manual 4G-STICK-D for Autarco Inverters IM.S2.4G-STICK-D-EN-V1.0...
- Page 2 Installation Manual 4G-STICK-D for Autarco Inverters...
- Page 3 Keep this manual for future info@autarco.com reference. www.autarco.com Product information is subject to change without notice. All trademarks are Address recognized as the property of their respective owners. Torenallee 20 5617 BC Eindhoven © Autarco Group B.V. The Netherlands All rights reserved. IM.S2.4G-STICK-D-EN-V1.0...
-
Page 4: Table Of Contents
Which SIM card size is required? SIM card security code override (unlock) For Android 3.3.1 For iPhone 3.3.2 Inserting SIM card in the 4G-stick Installing 4G stick in inverter Connection with several inverters Network configuration Public mobile network (4G) configuration 3.7.1 Local WiFi network configuration 3.7.2... - Page 5 Installation Manual Resetting the stick Troubleshooting The stick has no power (red ‘PWR’ indicator is off) The red ‘PWR’ light is on, but the orange ‘COM’ light is off Signal quality Local router settings FCC Certification 4G-STICK-D for Autarco Inverters...
-
Page 6: Installation

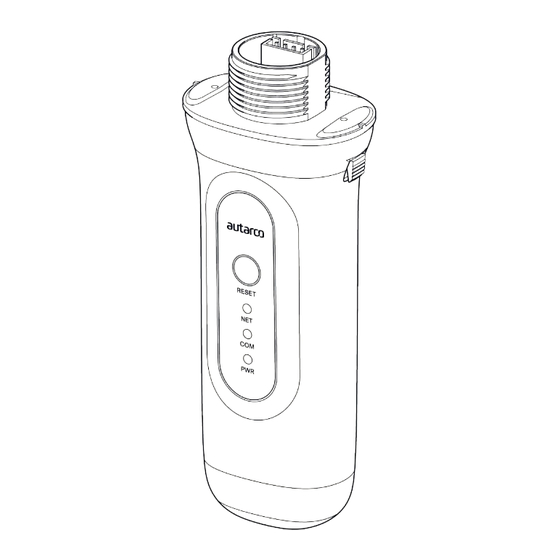

Autarco 4G sticks. These 4G sticks can be used with all Autarco inverters. They can operate on both a WiFi as well as a 4G SIM card. Please keep this user manual available at all times. -
Page 7: Connection Structure For 4G Monitoring
Topology overview 1. Inverter(s) with 4G-STICK-D Inverter(s) communicate via 4G-STICK-D with a public mobile network or via WiFi with local router 2. Public mobile network (4G) or Local router (WiFi) 4G-STICK-D communicates via public mobile network or local router with the Autarco-server 3. -
Page 8: Installation
2. Go to ‘Settings’ 3. Choose ‘Security’ 4. Choose ‘Set up SIM Lock’ 5. Choose ‘SIM card Lock’ 6. Turn the ‘Lock SIM card’ option OFF Choose ‘OK’ The SIM card is now no longer locked. 4G-STICK-D for Autarco Inverters... -
Page 9: For Iphone
After canceling the security code of the SIM card, it can be placed in the 4G stick. WARNING! You need to access sensitive electronics to insert the SIM card into the 4G-STICK-D. Handle with care or you may damage the stick! Push the two tabs on the side of the stick 2. -
Page 10: Installing 4G Stick In Inverter
WARNING! To prevent damage, do not turn the black housing itself. WARNING! Keep the 4G stick away from large metal objects and electrical appliances with magnetic fields such as microwave, refrigerator, mobile phone, concrete walls, solar panels and metal walls to ensure the quality of communication. 4G-STICK-D for Autarco Inverters... -
Page 11: Connection With Several Inverters
Connection with several inverters Installation Manual The 4G-STICK-D can also be used to read out several inverters. To do this, the inverters must be daisy-chained. Connect multiple inverters in parallel with network cables. 2. Connect the 4G-STICK-D to the first inverter. -
Page 12: Public Mobile Network (4G) Configuration
SIM card with an active 4G plan from your local carrier. ATTENTION! Autarco does not supply SIM cards or Data packs. Once a SIM card is inserted into the 4G-STICK-D, install the stick in the inverter (section 3.5) and the communication stick should recognize the APN automatically. - Page 13 Username: admin Password: 123456789 WARNING! Passwords are case sensitive. If using an iPad, iPhone or other tablet device, pleaseensure that the first character of the password hasn’t automatically become uppercase. 4G-STICK-D for Autarco Inverters...
- Page 14 Installation Manual 5. Click Quick Set from the main menu on the left. *If the menu is in Chinese, press English in the top right corner. 6. Click SEARCH. 4G-STICK-D for Autarco Inverters...
- Page 15 *Make sure the inverter is installed within range of your local WiFi network. If necessary, move your router or use a WiFi extender or an extra Access Point. 4G-STICK-D for Autarco Inverters...
-
Page 16: New Stick's Ip Address After Installation
10. The installation is complete when all three LEDs are solid. The LEDs will blink occasionally when the stick is transmitting data. The inverter is now connected to your local WiFi network and transmits its monitoring data to our Autarco server. If the green light is not solid, try the following: •... -
Page 17: Control
The NET light, or network light, provides information about the communication between the stick and the Autarco server. In the diagram on the next page you will find information about the meaning of the LED lights. -
Page 18: Helios & Myautarco
MyAutarco environment. This is possible if the end customer logs in at https://my.autarco.com/ or in the MyAutarco app to view the monitoring data. If no monitoring messages are received after registration in Helios, you will be given two options: You immediately send the login details to the end customer b. -
Page 19: Access Myautarco Monitoring Platform (Installer)
After installation of the stick by the installer 5.4.1 You will receive your login details by email after the installer has registered your system with Autarco. You can access monitoring data on MyAutarco, via the website http://my.autarco.com or via the MyAutarco app. -
Page 20: Resetting The Stick
Installation Manual The reset button on the stick has two functions: Force a message Briefly press the reset button once to force a message that is immediately sent to the Autarco server. 2. Perform reset Press and hold the reset button for 15 seconds to reset the stick to factory settings. The COM light (blue / orange) and NET light (green) turn off temporarily. -
Page 21: Troubleshooting
The red ‘PWR’ light is on, but the orange ‘COM’ light is off The 4G-STICK-D is powered (on), but cannot receive data from at least one of the connected inverters. Briefly press the button on the back of the stick once (this will attempt to force a message). -
Page 22: Local Router Settings
If you don’t know the router’s IP address, see the following web page: Find the IP address of your router WARNING! Autarco does not and cannot know the router username and password. Default usernames and passwords depend on the router brand and series. -
Page 23: Fcc Certification
Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator & your body. 4G-STICK-D for Autarco Inverters...
