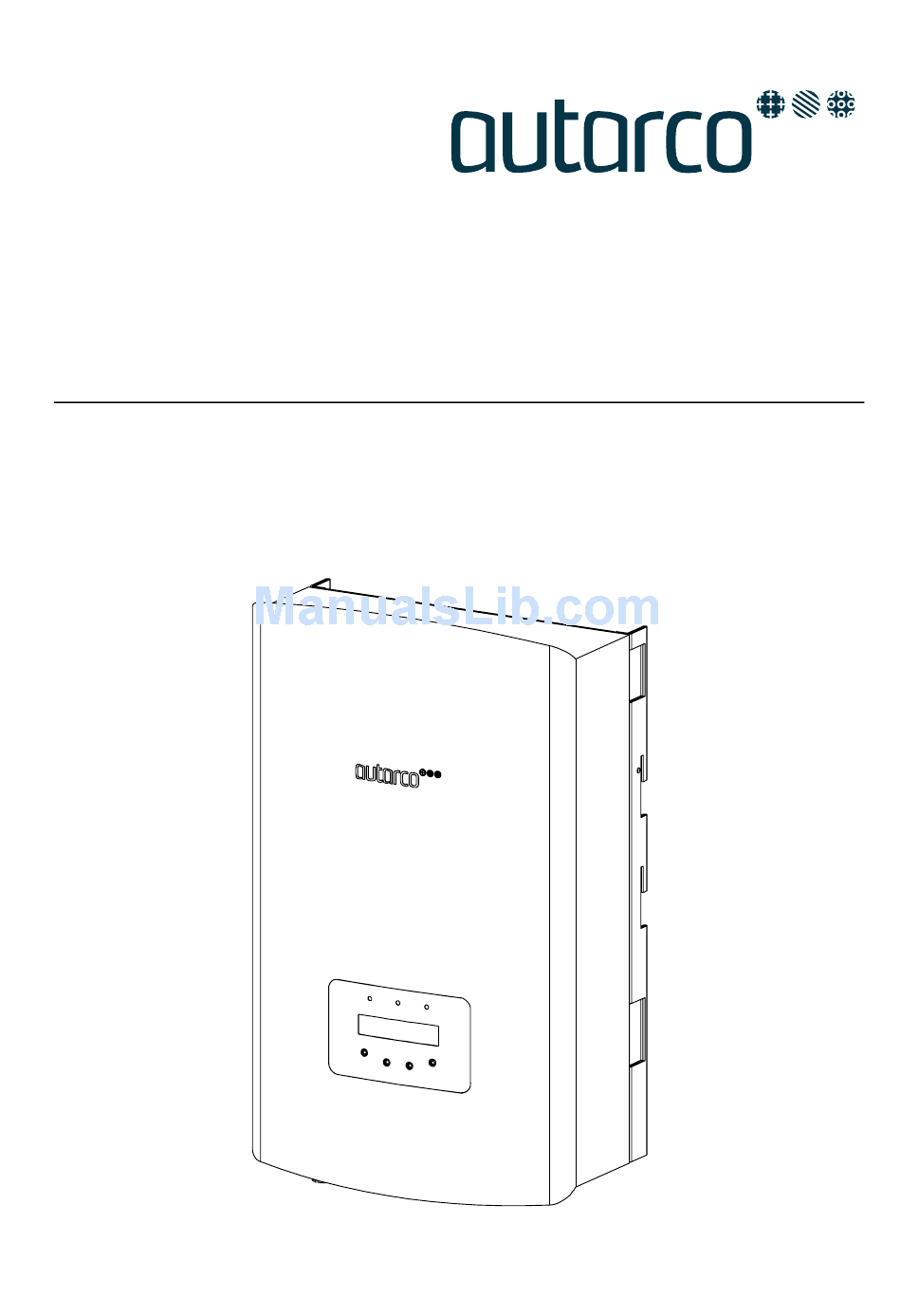

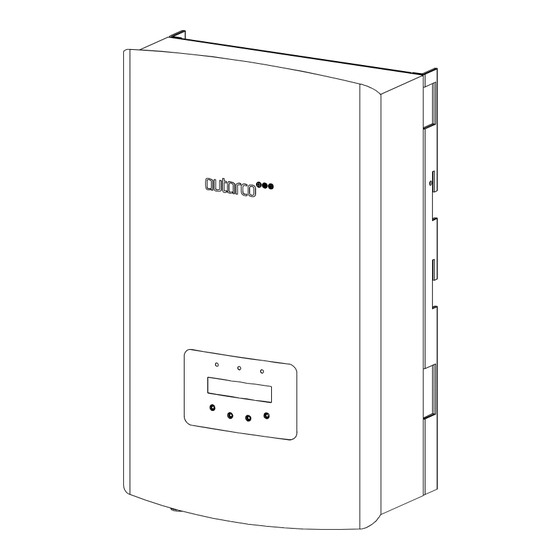

- Page 1 Installation and Operation Manual Solar Inverters MX-series © Autarco Group B.V. Version 2.2 2016-08-26...
- Page 2 MX-series Inverters...
- Page 3 This manual is an integral part of the unit. Please read the manual carefully before installation, operation or maintenance. Keep this manual for future reference. Product information is subject to change without notice. All trademarks are recognized as the property of their respective owners. © Autarco Group B.V. All rights reserved. 2016-08-26...
-
Page 4: Table Of Contents
Table of Contents Introduction ............................5 Read this first ............................... 5 Target Audience ............................5 Product versions covered by this document ....................6 Preparation ............................7 Safety instructions ............................7 Package contents ............................8 Internal DC switch ............................8 Explanations of symbols on inverter ......................8 Product information ........................... -
Page 5: Introduction
This manual contains important information for use during installation and maintenance of the MX-series Autarco inverter. To reduce the risk of electrical shock, and to ensure the safe installation and operation of the MX-series Autarco inverters, the following safety symbols appear throughout this document to indicate dangerous conditions and important safety instructions. -
Page 6: Product Versions Covered By This Document
1.3 Product versions covered by this document The main purpose of this user manual is to provide instructions and detailed procedures for installing, operating, maintaining, and troubleshooting the MX-series of Autarco inverters which includes the following models: MX3000(S) ... -
Page 7: Preparation
Please contact your dealer to get the information of authorized repair facility for any maintenance or repairmen. Any unauthorized actions including modification of product functionality of any form will affect the validation of warranty service; Autarco may deny the obligation of warranty service accordingly. 2016-08-26... -
Page 8: Package Contents
2.3 Internal DC switch Please verify whether your Autarco MX-series inverter is equipped with an internal DC switch. This switch can be found on the bottom of the inverter (see 3.3). If there isn’t an internal DC switch it is important to apply an external DC disconnector in order to completely disconnect the solar PV module strings from the inverter. -
Page 9: Product Information
3.1 Overview Autarco MX-series grid tied inverters are state of the art, high efficiency, robust and reliable grid tied inverters at the best price quality ratio available. They are easy to install and carry a standard 10 year product warranty. Our rigorous quality control and testing facilities guarantee Autarco inverters meet the highest quality standards possible. -
Page 10: Product Overview
3.3 Product overview Inverter cover LED light – POWER LED light – OPERATION LED light – ALARM LCD display 2x16 characters Escape key Up key Down key Enter key DC input MPPT 1 DC input MPPT 2 (optional) DC switch (optional) Communication port AC output MX-series Inverters... -
Page 11: Installation
installation and operation manual 4. Installation 4.1 Safety DANGER! Do not install the inverter near flammable or explosive items. WARNING! The installation must be performed by qualified personnel and in compliance with national and local standards and regulations. This inverter will be connected to a high voltage DC power generator and AC grid. Inappropriate installation may jeopardize the life span of the inverter. -
Page 12: Safety Clearance
4.3 Safety clearance Caution! Make sure heat sinks are out of reach of children. Observe the following minimum clearances to walls: Min. 300mm Min. 100mm Min. 100mm Min. 300mm MX-series Inverters... -
Page 13: Mounting Procedure
installation and operation manual 4.4 Mounting procedure Step 1 — Mount the wall bracket onto the mounting wall with appropriate screws plugs Step 2 — Lower the inverter onto the bracket 290 ± 2 mm 104 ± 2 mm 2016-08-26... -
Page 14: Electrical Installation
The Autarco inverter is equipped with an integrated Residual Current Protective Device (RCPD) and Residual Current Operated Monitor (RCOM). The RCOM will detect the volume of the leakage current and compare it with the expected value, if the leakage current exceeds the permitted range, the RCPD will disconnect the inverter from the AC load. - Page 15 installation and operation manual Step 1 — Slide the cable gland cap, cable gland body and adapter to the cable. Step 2 — Strip outer jacket 60mm and strip each cable insulation about 12±1mm. Step 3 — Insert cable strands into connector socket, and lock the screws. Make sure to fit the ground wire into the PE hole.
- Page 16 The selection of the mains circuit breaker rating depends on the wiring design (wire cross- section area), cable type, wiring method, ambient temperature, inverter current rating etc. Derating of the circuit breaker rating may be necessary due to self-heating or if exposed to heat. MX3000(S) MX3600(S) MX4600(S) Max.
-
Page 17: Dc Connections
DANGER! Never connect or disconnect the connectors under load. MX-series inverters have two MPP trackers. The DC characteristics of each model is shown in the table below: Inverter MPP tracker Max DC power Max DC voltage Max. DC current per MPPT MX3000(S) 3500W MX3600(S) 4200W 600W MX4600(S) 5300W DANGER! Do not connect strings with an open circuit voltage greater than the max DC voltage of the inverter. -
Page 18: Inverter Commissioning Sequence
5.3 Inverter commissioning sequence Turn ON Turn OFF 1. Connect AC side (if not connected yet) 1. Switch OFF the DC switch 2. Connect DC side (if not connected yet) 2. Switch OFF the AC switch 3. Switch ON the DC switch 4. -
Page 19: Information
installation and operation manual 6.3 Information The MX series inverters main menu provides access to operational data and information. The information is displayed by selecting "Information" from the main menu. By default the inverter display will scroll through the information states below. Pressing the ENTER key will lock or unlock the current display. You can also press UP or DOWN keys to manually scroll through. -
Page 20: Advanced Info
6.5 Advanced info WARNING! Access to this section of the menu is for Autarco qualified and accredited technicians only. Unauthorized access will void the product and system warranty. The default password is “0010". Press “DOWN” to move the cursor, press “UP” to select the number. After you enter the correct password, you will be able to access the information as shown in the table below. -
Page 21: Monitoring Setup And System Registration
The instructions about monitoring setup and system registration can be found in separate manuals enclosed in the documentation that came with this Autarco system. For more information, please contact your Autarco installer or refer to the downloads page of our website www.autarco.com. -
Page 22: Disposal
9. Disposal To comply with European Directive 2002/96/EC on waste Electrical and Electronic Equipment and its implementation as national law, electrical equipment that has reached the end of its life must be collected separately and returned to an approved recycling facility. Ignoring this EU Directive may have severe effects on the environment and your health. -
Page 23: Grid Errors
installation and operation manual 10.3 Grid errors 2016-08-26... -
Page 24: System And Design Fault
10.4 System and design fault MX-series Inverters... -
Page 25: Product Specifications
11. Product specifications MX2500(S) MX3000(S) MX3600(S) MX4600(S) Input Max. DC voltage (V) MPPT voltage range (V) 100-500 Turn on voltage (V) Turn off voltage (V) Number of MPP trackers Max. DC current per MPPT (A) Number of DC connections per MPPT... - Page 26 MX2500(S) MX3000(S) MX3600(S) MX4600(S) Safety protection Internal overvoltage protection DC Insulation monitoring Earth fault protection Grid monitoring According to VDE 0126-1-1, UL1741, G83/2, AS4777 Earth fault current monitoring According to VDE 0126-1-1, UL1741, G83/2, AS4777 DC current monitoring According to VDE 0126-1-1, UL1741, G83/2, AS4777...
