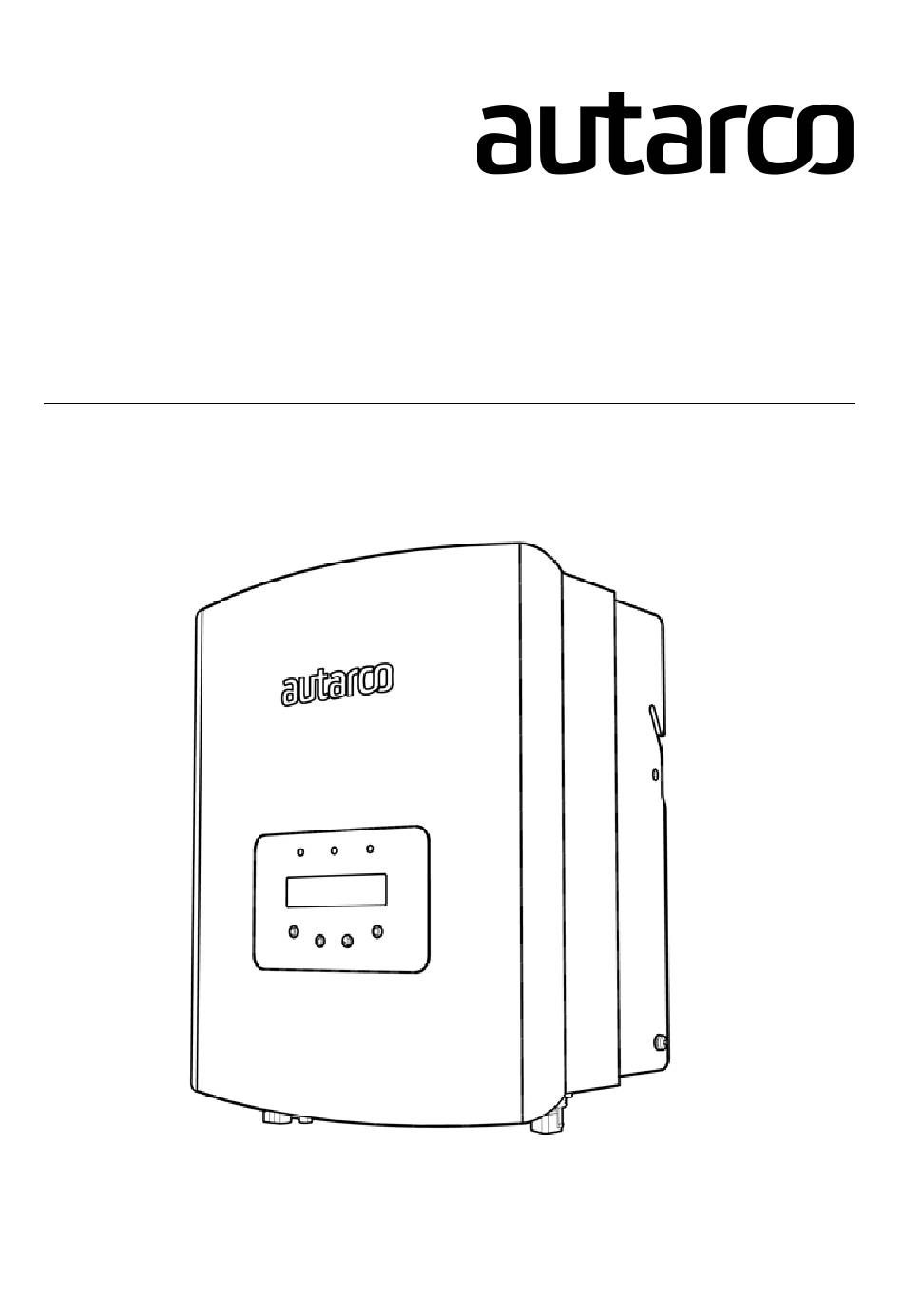

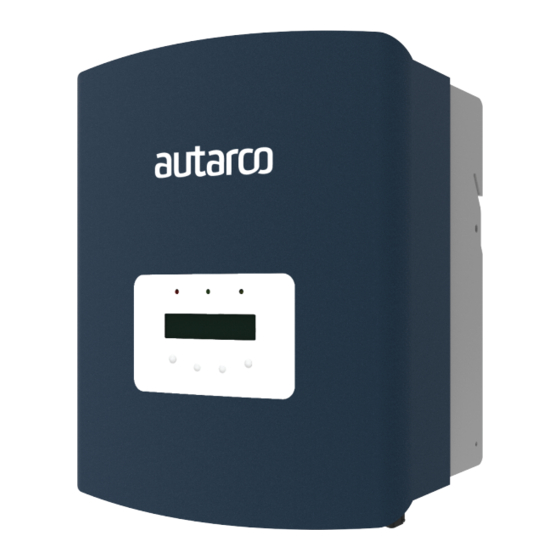

- Page 1 Installation and Operation Manual Solar Inverters SX Mark III series © Autarco Group B.V. IM-S2.SX-MIII-EN-V0.2...
- Page 2 This manual is an integral part of the unit. Please read the manual carefully before installation, operation or maintenance. Keep this manual for future reference. Product information is subject to change without notice. All trademarks are recognized as the property of their respective owners. © Autarco Group B.V. All rights reserved. SX-Mark III series Inverters...
-
Page 3: Table Of Contents
installation and operation manual Table of Contents 1 Introduction 1.1 Read this first 1.2 Target Audience 1.3 Product versions covered by this document 2 Preparation 2.1 Safety instructions 2.2 Package contents 2.3 Internal DC switch 2.4 Explanations of symbols on inverter 3 Product information 3.1 Overview 3.2 Product identification... - Page 4 11 Troubleshooting 11.1 General 11.2 Internal component fault 11.3 Grid errors 11.4 System and design fault 12 Product specifications SX-Mark III series Inverters...
-
Page 5: Introduction
1.2 Target Audience This manual is intended for anyone who uses Autarco SX-MIII series inverter. Before any further action, the operators must first read all safety regulations and be aware of the potential danger to operate high-voltage devices. Operators must also have a complete understanding of this device’s features and functions. -
Page 6: Product Versions Covered By This Document
1.3 Product versions covered by this document The main purpose of this user manual is to provide instructions and detailed procedures for installing, operating, maintaining, and troubleshooting the SX-MIII series of Autarco inverters which includes the following models: ● ●... -
Page 7: Preparation
Please contact your dealer to get the information of authorized repair facility for any maintenance or repairmen. Any unauthorized actions including modification of product functionality of any form will affect the validation of warranty service; Autarco may deny the obligation of warranty service accordingly. IM-S2.SX MIII-EN-V1.0... -
Page 8: Package Contents
2.3 Internal DC switch Please verify whether your Autarco SX-MIII series inverter is equipped with an internal DC switch. This switch can be found on the bottom of the inverter (see 3.3). If there isn’t an internal DC switch it is important to apply an external DC disconnector in order to completely disconnect the solar PV module strings from the inverter. -
Page 9: Product Information
3.1 Overview Autarco SX-MIII series grid tied inverters are state of the art, high efficiency, robust and reliable grid tied inverters at the best price quality ratio available. They are easy to install and carry a standard 5 year product warranty which is extendable to 15 years. -
Page 10: Product Overview
3.3 Product overview SX-Mark III series Inverters... -
Page 11: Installation
installation and operation manual Installation 4.1 Safety DANGER! Do not install the inverter near flammable or explosive items. WARNING! The installation must be performed by qualified personnel and in compliance with national and local standards and regulations. This inverter will be connected to a high voltage DC power generator and AC grid. Inappropriate installation may also jeopardize the life span of the inverter. -
Page 12: Safety Clearance
4.3 Safety clearance Caution! Make sure heat sinks are out of reach of children. Observe the following minimum clearances to walls: SX-Mark III series Inverters... -
Page 13: Mounting Procedure
installation and operation manual 4.4 Mounting procedure Step 1 — Mount the wall bracket onto the mounting wall with appropriate screws plugs Step 2 — Lower the inverter onto the bracket, and secure with the locking screws. IM-S2.SX MIII-EN-V1.0... -
Page 14: Electrical Installation
NOTICE! Make sure to set the correct grid standard as part of system commissioning, see chapeter 6.6. The Autarco inverter is equipped with an integrated Residual Current Protective Device (RCPD) and Residual Current Operated Monitor (RCOM). The RCOM will detect the volume of the leakage current and compare it with the expected value, if the leakage current exceeds the permitted range, the RCPD will disconnect the inverter from the AC load. - Page 15 installation and operation manual Step 1 — Slide the cable glad cap, cable gland body and adapter to the cable. Step 2 — Strip outer jacket 60mm and strip each cable insolation about 12±1mm. Step 3 — Insert cable strands into connector socket, and lock the screws. Make sure to fit the ground wire into the PE hole.
- Page 16 Step 4 — Fit the adapter, cable gland body and cable glad cap to the connector as per below. NOTICE! It is important that the AC wires are connected to the right terminals as indicated by the “L”, “N” and “Earthing” symbols on each AC connector. In some countries a second protective conductor is required as a matter of principle.
-
Page 17: Dc Connections
installation and operation manual 5.2 DC connections Please always use the MC4 connectors from the inverter box to connect strings to the inverter. DANGER! Never connect or disconnect the connectors under load. SX-MIII series inverters have two MPP trackers. The DC characteristics of each model is shown in the table below: Max. -
Page 18: Inverter Commissioning Sequence
5.3 Inverter commissioning sequence Turn ON Turn OFF Connect AC side (if not connected yet) Switch OFF the AC switch Connect DC side (if not connected yet) Switch OFF the DC switch Switch ON the DC switch Switch ON the AC switch NOTICE! Please ensure the correct grid standard is selected for the installation location. -
Page 19: Operation
installation and operation manual Operation 6.1 LED indicator lights There are three LED status indicator lights in the front panel of SX-MIII series inverters. The left POWER light (red) indicates power status of the inverter. The middle OPERATION light (green) indicates the operation status. The right ALARM light (yellow) indicates the alarm status. - Page 20 I_DC2 %VALUE% A Shows the input current (A) of the MPPT2 V_AC %VALUE% Shows the voltage (V) of the grid I_AC %VALUE% A Shows the current (A) of the grid Status: %VALUE% Shows the status of the inverter Power: %VALUE% W Shows current output power (W) of the inverter For any status other than “Generating”...
-
Page 21: Settings
Press ESC key to return 6.5 Advanced info WARNING! Access to this section of the menu is for Autarco qualified and accredited technicians only. Unauthorized access will void the product and system warranty. Screen can be scrolled through with UP/DOWN keys to see the information as per the table below. Press ENTER key to enter a submenu. -
Page 22: Advanced Settings
6.6 Advanced Settings WARNING! Access to this section of the menu is for Autarco qualified and accredited technicians only. Unauthorized access will void the product and system warranty. Screen can be scrolled through with UP/DOWN keys to see the information as per the table below. Press ENTER key to enter a submenu. - Page 23 installation and operation manual Press ESC key to return 24HR Switch Clear Energy Reset the inverters total kWh output to zero. New Password Change the password to enter Advanced Info and Advanced Settings. This function use to set, Output power Reactive power Power Control Out_P with restore...
-
Page 24: Temperature Derating
3.Fail Safe ON/OFF Press UP/DOWN keys to cycle through ON/OFF options Press ENTER key to save Press ESC key to return Restart HMI ONLY for maintenance person Debug Parameter ONLY for maintenance person DSP Update ONLY for maintenance person Press DOWN key to move the cursor, press UP key to revise the value Power Parameter Press ENTER key to save Press ESC key to return... -
Page 25: Meter Installation (Optional)
installation and operation manual Meter Installation (Optional) The inverter is equipped with a meter port which may be used to connect to an approved consumption meter which then enables; ● Self Consumption Monitoring ● Power Export Limitation / Export Power Management NOTICE! For further questions please see the complete meter installation manual. -
Page 26: Required Settings
Monitoring setup and system registration The instructions about Wi-Fi setup and system registration can be found in separate manuals enclosed in the documentation that came with this Autarco system. For more information manual please contact your Autarco installer or refer to our website www.autarco.com. -
Page 27: Disposal
installation and operation manual CAUTION! Do not touch the heat sink when the inverter is in operation. Turn OFF the inverter (see section 5.3) and allow for cooling down before cleaning. CAUTION! Never use any solvents, abrasives or corrosive materials to clean the inverter. 10 Disposal To comply with European Directive 2002/96/EC on waste Electrical and Electronic Equipment and its implementation as national law, electrical equipment that has reached the end of its life must be collected... - Page 28 11 Troubleshooting 11.1 General Display Action message ● Check that all switches are in the ON position (including internal DC switch if present) Blank screen ● Check AC and DC power supply. If DC power is greater than 10W and string voltage greater than 100V the inverter should start. ●...
- Page 29 installation and operation manual 11.3 Grid errors Display Error Error type Error description Action message code Over Grid voltage exceeds the 1. Wait to see if the grid voltage returns within limits. OV-G-V 1010 voltage standard set in the inverter 2.
- Page 30 Check for pinched, crimped or otherwise damaged cables and connections. fault detected in the system. b. Check all switches for short circuit. 3. If error persists contact Autarco for replacement inverter. 1. Restart inverter (up to three times). 2. Call installer to: GROUND-PR...
- Page 31 installation and operation manual 12 Product specifications S2.SX700-MIII S2.SX1000-MIII S2.SX1500-MIII S2.SX2000-MIII S2.SX2500-MIII S2.SX3000-MIII S2.SX3600-MIII Input Max. DC voltage (V) MPPT voltage range 50 - 500 80-500 Turn on voltage (V) Number of MPP trackers Max. DC current per MPPT (A) connections per MPPT Total number...
- Page 32 Harm. distortion at nom.output < 3% connector Plug in connector Overvoltage category OVC III (MAINS), OVC II (PV) Power consumption Nighttime power consumption < 1W Efficiencies Max. efficiency 96.6% 96.6% 96.6% 97.1% 97.1% 97.1% 97.3% Euro efficiency 95.3% 95.3% 95.4% 96.6% 96.7% 96.7%...
- Page 33 installation and operation manual Installation environment Indoor or outdoor Mounting Wall bracket Operating temperature range (°C) -25 to 60 Max. relative humidity 0 to 100% Maximum altitude 4000m IP protection rating IP65 Isolation type Transformerless Cooling concept Convection Noise level (dB) <20 dBA indicators...
