TRENDnet SMCWBR14S-NL User Manual

Draft 11n wireless 4-port broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

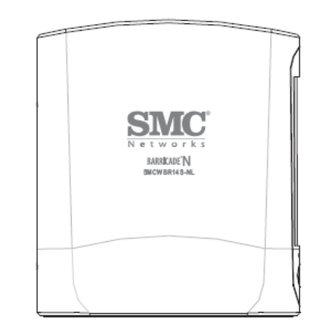

Draft 11n Wireless 4-Port Broadband Router
SMCWBR14S-NL
Rev 0.1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMCWBR14S-NL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet SMCWBR14S-NL

Summary of Contents for TRENDnet SMCWBR14S-NL

  • Page 1 Draft 11n Wireless 4-Port Broadband Router SMCWBR14S-NL Rev 0.1 User Manual...
  • Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Table of Contents Getting Started with the SMCWBR14S-NL ----------------------------- 3 Package Contents ------------------------------------------------------- 4 Minimum System Requirements ------------------------------------ 4 Wireless LAN Networking -------------------------------------------------- 5 Introduction -------------------------------------------------------------- 9 Features ------------------------------------------------------------------- 9 Hardware Overview ---------------------------------------------------------- 10 LED Indications --------------------------------------------------------- 10 Rear Panel ---------------------------------------------------------------- 10...

  • Page 4: Getting Started With The Smcwbr14S-Nl

    Getting Started with the SMCWBR14S-NL Congratulations on purchasing the SMCWBR14S-NL! This manual provides information for setting up and configuring the SMCWBR14S-NL. This manual is intended for both home users and professionals. The following conventions are used in this manual: THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE TOPIC AT HAND.

  • Page 5: Package Contents

    Package Contents SMCWBR14S-NL Draft 11n Wireless 4- port Broadband Router CAT-5 Ethernet Cable Power Adapter (12VDC) CD-ROM with Manual Quick Installation Guide Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product.

  • Page 6: Wireless Lan Networking

    DONE BY AN AUTHORIZED ADMINISTRATOR. Transmission Rate (Transfer Rate) The SMCWBR14S-NL provides various transmission (data) rate options for you to select. In most networking scenarios, the factory default Best (automatic) setting proves the most efficient. This setting allows your SMCWBR14S-NL to operate at the maximum transmission (data) rate. When the communication quality drops below a certain level, the SMCWBR14S-NL automatically switches to a lower transmission (data) rate.
  • Page 8 When a number of wireless stations are connected using a single access point, you have a Basic Service Set (BSS). In the ESS diagram below, communication is done through the access points, which relay data packets to other wireless stations or devices connected to the wired network. Wireless stations can then access resources, such as a printer, on the wired network.
  • Page 9 In an ESS environment, users are able to move from one access point to another without losing the connection. In the diagram below, when the user moves from BSS (1) to BSS (2) the WLAN client devices automatically switches to the channel used in BSS (2). Roaming in an ESS network diagram...

  • Page 10: Introduction

    Unlike most routers, the SMCWBR14S-NL provides data transfers at up to 300Mbps when using 11n (Draft) connection. This router is also back compatible with 802.11g or 11b devices. This means that you do not need to change your entire network to maintain connectivity.

  • Page 11: Hardware Overview

    Hardware Overview LED Indications: (from bottom to top) LAN1 LAN2 LAN3 LAN4 Wireless Rear panel: (from bottom to top) DC-IN RESET LAN1 LAN2 LAN3 LAN4...

  • Page 12: Installation Considerations

    Installation Considerations The SMCWBR14S-NL Draft 11n Wireless 4- port Broadband Router lets you access your network, using a wireless connection, from virtually anywhere within its operating range. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business.

  • Page 13: Using The Configuration Menu

    Using the Configuration Menu Whenever you want to configure your SMCWBR14S-NL , you can access the Configuration Menu through your PC by opening the Web-browser and typing in the IP Address of the SMCWBR14S-NL . The SMCWBR14S-NL’s default IP Address is http://192.168.2.1...

  • Page 14: Network

    Network Network: Wan Setting WAN Connection Type There are several connection types to choose from: Static IP, DHCP, PPPoE, PPTP, L2TP. If you are unsure of your connection method, please contact your Internet Service Provider. Static Used when your ISP provides you a set IP address that does not change. The IP information is manually entered in your IP configuration settings.
  • Page 15 Select this option if your ISP requires you to use a PPPoE (Point to Point Protocol over Ethernet) connection. DSL providers typically use this option. This method of connection requires you to enter a Username and Password (provided by your Internet Service Provider) to gain access to the Internet. Reconnect Mode: Typically PPPoE connections are not always on.
  • Page 16 Always on: A connection to the Internet is always maintained. On demand: A connection to the Internet is made as needed. Manual: You have to open up the Web-based management interface and click the Connect button manually any time that you wish to connect to the Internet. Maximum Idle Time: Time interval the machine can be idle before the PPPoE connection is disconnected.
  • Page 17 Network: Lan Setting LAN Interface Setting IP Address The IP address of the this device on the local area network. Assign any unused IP address in the range of IP addresses available for the LAN. For example, 192.168.2.101. Subnet Mask The subnet mask of the local area network.
  • Page 18 DHCP Server Settings DHCP stands for Dynamic Host Configuration Protocol. The DHCP section is where you configure the built-in DHCP Server to assign IP addresses to the computers and other devices on your local area network (LAN). Enable DHCP Server Once your router is properly configured and this option is enabled, the DHCP Server will manage the IP addresses and other network configuration information for computers and other devices connected to your Local Area Network.
  • Page 19 The LAN address that you want to reserve. MAC Address To input the MAC address of your system, enter it in manually or connect to the router's Web-Management interface from the system and click the Copy Your PC's MAC Address button. A MAC address is usually located on a sticker on the bottom of a network device.
  • Page 20 Network: DHCP Client List DHCP Client List In this section you can see what LAN devices are currently leasing IP addresses.

  • Page 21: Wireless

    Wireless Wireless: Basic Radio On/Off This indicates the wireless operating status. The wireless can be turned on or off by the slide switch. When the radio is on, the following parameters are in effect. Wireless Mode If all of the wireless devices you want to connect with this router can connect in the same transmission mode, you can improve performance slightly by choosing the appropriate "Only"...
  • Page 22 Wireless Network Name (SSID) When you are browsing for available wireless networks, this is the name that will appear in the list (unless Visibility Status is set to Invisible, see below). This name is also referred to as the SSID. For security purposes, it is highly recommended to change from the pre-configured network name.
  • Page 23 Wireless: Advanced Beacon Interval Beacons are packets sent by a wireless router to synchronize wireless devices. Specify a Beacon Period value between 20 and 1000. The default value is set to 100 milliseconds. DTIM A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.
  • Page 25 Wireless: Security Security Mode Unless one of these encryption modes is selected, wireless transmissions to and from your wireless network can be easily intercepted and interpreted by unauthorized users. A method of encrypting data for wireless communication intended to provide the same level of privacy as a wired network.
  • Page 26 client only supports WPA. With the "WPA2 Only" option, the router associates only with clients that also support WPA2 security. Cipher Type: The encryption algorithm used to secure the data communication. TKIP (Temporal Key Integrity Protocol) provides per-packet key generation and is based on WEP. AES (Advanced Encryption Standard) is a very secure block based encryption.
  • Page 27 Wireless: WPS Enable Enable the WPS feature. Lock Wireless Security Settings Locking the wireless security settings prevents the settings from being changed by any new external registrar using its PIN. Devices can still be added to the wireless network using WPS. PIN Settings A PIN is a unique number that can be used to add the router to an existing network or to create a new network.
  • Page 28 Shows the current value of the router's PIN. Reset To WPS Default Restore the default PIN of the router. Generate New PIN Create a random number that is a valid PIN. This becomes the router's PIN. You can then copy this PIN to the user interface of the registrar.
  • Page 29 Wireless: Station List...

  • Page 30: Advanced

    Advanced Advanced: DMZ DMZ Setting DMZ means "Demilitarized Zone." If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer. When a LAN host is configured as a DMZ host, it becomes the destination for all incoming packets that do not match some other incoming session or rule.
  • Page 31 Few applications truly require the use of the DMZ host. Following are examples of when a DMZ host might be required: • A host needs to support several applications that might use overlapping ingress ports such that two port forwarding rules cannot be used because they would potentially be in conflict. •...
  • Page 32 Advanced: Virtual Server Add/Edit Virtual Server Enable Specifies whether the entry will be active or inactive. Name Assign a meaningful name to the virtual server, for example Web Server. Several well-known types of virtual server are available from the "Application Name" drop-down list. Selecting one of these entries fills some of the remaining parameters with standard values for that type of server.
  • Page 33 Public Port The port that will be accessed from the Internet. Schedule Select a schedule for when the service will be enabled. If you do not see the schedule you need in the list of schedules. Clear Re-initialize this area of the screen, discarding any changes you have made.
  • Page 34 Advanced: Access Control Enable By default, the Access Control feature is disabled. If you need Access Control, check this option. Note: When Access Control is disabled, every device on the LAN has unrestricted access to the Internet. However, if you enable Access Control, Internet access is restricted for those devices that have an Access Control Policy configured for them.
  • Page 35 Advanced: Special Applications Add/Edit Port Trigger Rule Enable Specifies whether the entry will be active or inactive. Name Enter a name for the Special Application Rule, for example Game App, which will help you identify the rule in the future. Alternatively, you can select from the Application list of common applications. Protocol Select the protocol used by the service.
  • Page 36 Enter the outgoing port range used by your application (for example 6500-6700). Schedule Select a schedule for when this rule is in effect. Clear Re-initialize this area of the screen, discarding any changes you have made. Port Trigger Rule List This is a list of the defined application rules.
  • Page 37 Advanced: Gaming Add/Edit Port Range Rule Use this section to add a Port Range Rule to the following list or to edit a rule already in the list. Rule Enable Specifies whether the entry will be active or inactive. Rule Name Give the rule a name that is meaningful to you, for example Game Server.
  • Page 38 Inbound Filter Select a filter that controls access as needed for this rule. Schedule Select a schedule for the times when this rule is in effect. Clear Re-initialize this area of the screen, discarding any changes you have made. Port Range Rule List This is a list of the defined Port Range Rules.
  • Page 39 Advanced: Inbound Filter Add/Edit Inbound Filter Rule Here you can add entries to the Inbound Filter Rules List below, or edit existing entries. Name Enter a name for the rule that is meaningful to you. Action The rule can either Allow or Deny messages. Remote IP Range Define the ranges of Internet addresses this rule applies to.
  • Page 40 Permit any WAN user to access the related capability. Deny All Prevent all WAN users from accessing the related capability. (LAN users are not affected by Inbound Filter Rules.)
  • Page 41 Advanced: Schedule Add/Edit Schedule Rule In this section you can add entries to the Schedule Rules List below or edit existing entries. Name Give the schedule a name that is meaningful to you, such as "Weekday rule". Day(s) Place a checkmark in the boxes for the desired days or select the All Week radio button to select all seven days of the week.
  • Page 42 Schedule Rules List This section shows the currently defined Schedule Rules. An entry can be changed by clicking the Edit icon or can be deleted by clicking the Delete icon. When you click the Edit icon, the item is highlighted, and the "Edit Schedule Rule"...

  • Page 43: Admin

    Admin Admin: Management Admin Password Enter a password for the user "admin", who will have full access to the Web-based management interface. Device Name The name of the router can be changed here. Enable Dynamic DNS Enable this option only if you have purchased your own domain name and registered with a dynamic DNS service provider.
  • Page 44 Dynamic DNS Provider Select a dynamic DNS service provider from the pull-down list. Host Name Enter your host name, fully qualified; for example: myhost.mydomain.net. Account Enter the account provided by your service provider. If the Dynamic DNS provider supplies only a key, enter that key in all three fields.
  • Page 45 Admin: Upload Firmware Upload Firmware Upload Firmware Once you have a firmware update on your computer, use this option to browse for the file and then upload the information into the router.
  • Page 46 Admin: Setting Management Export Settings This option allows you to export and then save the router's configuration to a file on your computer. Be sure to save the configuration before performing a firmware upgrade. Import Settings Use this option to restore previously saved router configuration settings. Load Factory Defaults This option restores all configuration settings back to the settings that were in effect at the time the router was shipped from the factory.
  • Page 47 Admin: Time Time Configuration Current Router Time Displays the time currently maintained by the router. If this is not correct, use the following options to configure the time correctly. Time Zone Select your local time zone from pull down menu. Automatic Time Configuration Enable NTP Server Select this option if you want to synchronize the router's clock to a Network Time Server over the...
  • Page 48 If you do not have the NTP Server option in effect, you can either manually set the time for your router here.
  • Page 49 Admin: Status...
