TRENDnet User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEW-929DRU and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TEW-929DRU

Summary of Contents for TRENDnet TEW-929DRU

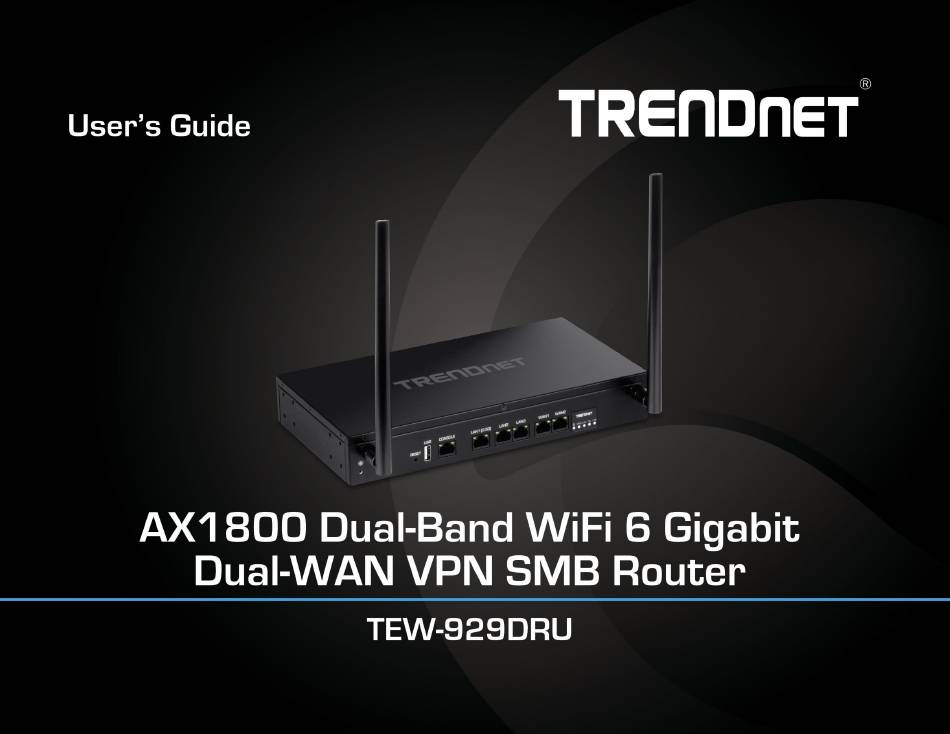

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Create a port-based VLAN ................. 15 MAC filtering ........................ 42 • Create a port-based VLAN with 802.1Q tagging ..........17 • Denial of service (DoS) prevention ................42 Assigning VLAN IDs to Wireless SSIDs ..............19 © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 3 • SSL VPN Server Setup ..................70 • Troubleshooting ................97 SSL VPN Client Setup (Windows) ............... 72 Certificate Management ....................76 Appendix ..................98 • IPsec ........................76 • OpenVPN ......................77 © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 4 Product Overview TRENDnet’s AX1800 Dual-Band Wireless Gigabit Dual-WAN VPN SMB Router, model TEW-929DRU, features two concurrent WiFi bands to maximize device networking speeds: two separate high performance 802.11ax networks (5GHz: 1201Mbps / 2.4GHz: 574Mbps). It features dual-WAN ports for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users.
  • Page 5 Rack Mount Design Sturdy metal housing with rack mount brackets included Wall Mountable Wall mount ready Online Firmware Updates Automatic notification of firmware updates Management Supports web browser (HTTP, HTTPS), CLI, SSH and Telnet management © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 6 Rear Panel View Front Panel View Gigabit RJ-45 WAN2 LAN Ports Console Reset Power On(-)/Off(o) Indicators Port Port Button Security Port Power Switch Slot WAN1 Port 2.5Gbps Lan USB 2.0 Port 1 Port © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 7 15 seconds and release to reset the device to factory defaults. Power Port Connects the included power adapter to supply device power. On(-)/Off(o) Turns the device power On(-) or Off(o). Power Switch Port/Button Description Ports/Buttons Description © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 8 TEW-829DRU TRENDnet User’s Guide Applications © Copyright 2019 TRENDnet. All Rights Reserved.

  • Page 9: Product Overview

    • When installing the Router on a level surface, attach the rubber feet to the bottom of each device. The rubber feet cushion the hub and protect the hub case from scratching. Note: The look of the router may be different than what is actually displayed. © Copyright 2019 TRENDnet. All Rights Reserved.

  • Page 10: Basic Installation And Configuration

    4. Connect the includes power adapter from a power outlet to your router power port shown for initial installation and adjust as needed later on. and push the Power On(-)/Off(o) switch into the On(-) position. © Copyright 2019 TRENDnet. All Rights Reserved.

  • Page 11: Product Hardware Features

    If you are modifying the administrator password, you will need to log into the router configuration using the new password. © Copyright 2019 TRENDnet. All Rights Reserved.
  • Page 12 LAN IPv4 address settings. 12. To configure your WAN1 Internet connection settings, click Network, click WAN, and click WAN1. 10. To change your router’s LAN IPv4 address settings, click on Network and click LAN. © Copyright 2019 TRENDnet. All Rights Reserved.

  • Page 13: Applications

    If you are modifying the wireless settings, you will need to connect to the router with your WiFi clients using the new settings. © Copyright 2019 TRENDnet. All Rights Reserved.

  • Page 14: Basic Router Settings

    New Password field and re-type the new password in the Confirmation field. Click Apply to save and commit the changes. Note: The idle timeout setting is used to define the period of inactivity in the router management page before automatically logging out. © Copyright 2019 TRENDnet. All Rights Reserved.

  • Page 15: Set Your Router Date And Time

    (e.g. 2. Click on System and click on Time/Date. pool.ntp.org) Cloud Sync Time: The time will be synched with TRENDnet Hive cloud 3. Review the settings below. Click Apply to save and commit the changes. server (optional license is required) Note: You can add multiple time servers by clicking .

  • Page 16: Create Time Schedules

    • Start Time / End Time – Manually define a time period for the schedule. Note: The time period is specified in 24 hour format. 4. Click Apply to © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 17: Configure Lan Ipv4 Dhcp Server Settings

    IP routing only Advanced Settings • Override MAC Address – This parameter allows you to assign a new LAN interface (br-lan) MAC address. Typically, this parameter does not need to be modified. (e.g. AA:BB:CC:DD:EE:FF) © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 18 Internet websites. This parameter is optional. (e.g. If entering 8.8.8.8, this DNS server will be provided DHCP clients instead of the router’s LAN IPv4 address to resolve Internet domain names such as trendnet.com ) © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 19: Add Static Dhcp Reservations

    3. Under the Static Leases section, click Add. 1. Log into your router management page (see “Access your router management page” on page 6). 2. Click on Network and click LAN. 3. Under the Host Entries section, click Add. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 20: Add Static Arp Entries

    (ex. applications: WoL (Wake on LAN) or Wake on WAN) 1. Log into your router management page (see “Access your router management page” on page 6). 2. Click on Network and click LAN. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 21: Configure Wan1 / Wan2 Interfaces For Internet Connectivity

    Internet connectivity. Applies to PPPoE WAN protocol. configuration changes to these sections. • MPPE support– Optional parameter (applies Microsoft Point-to-Point Encryption) required only if ISP requires for Internet connectivity. Applies to PPTP WAN protocol. General Setup © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 22 Override MAC address – Optional parameter used to change the WAN interface MAC address if you are experiencing issues obtaining IP address settings from your ISP. This parameter is more commonly known as MAC © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 23: Ipv6 Settings

    Inter VLAN Routing drop-down list and select Enabled to enable communication between the LAN and other VLAN interfaces. Click Apply to save and commit the changes. Example: We will remove port 3 from the default VLAN VID: 1 (LAN) interface © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 24 Example: In the example below, we will enable the DHCP server on VLAN 50 and leave IP address range and lease defaults. This will assign a DHCP IP range of 101-199 to ensure any devices connected to this VLAN obtain IP address information via DHCP. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 25: Create A Port-Based Vlan With 802.1Q Tagging

    2 will obtain 192.168.50.x/255.255.255.0 address settings and use the VLAN 50 IP interface 192.168.50.1 as the Internet gateway and gateway to other local IP subnets. 4. To create a new 802.1Q VLAN, under the VLANs section, click Add. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 26 Example: In the example below, we will enable the DHCP server on VLAN 50 and leave IP address range and lease defaults. This will assign a DHCP IP range of 101-199 to ensure any devices connected to this VLAN obtain IP address information via DHCP. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 27: Assigning Vlan Ids To Wireless Ssids

    8). 2. Click on Network and click VLAN. 3. Under VLAN VID:1 (LAN), click the Inter VLAN Routing drop-down list and select Enabled and click Apply to commit and save the changes. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 28 Tagged – Sets port membership as tagged and used for VLAN tag or trunk links to other VLAN aware devices such as managed switches or access points. Off – Removes port membership from a specific VLAN. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 29: Application Layer Gateway (Alg)

    DHCP requests on the VLAN interface to an external DHCP server IP 2. Click on Security and click on ALG. address (e.g. 192.168.50.20). 3. Review the applications. Click Apply to save and commit the changes. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 30: Upnp And Nat-Pmp

    • IPv4-Gateway: Enter the gateway to the destination network for the route. the UPnP/NAT-PMP entries table.. (e.g. 192.168.10.2) • Metric: Enter the metric or priority of the route. The metric range is 0-9999, the lowest number 0 being the highest priority. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 31: Dynamic Routing Protocols

    In the Overview table, you can enable and configure RIP for each interface by clicking You can check the current routing table under Status > Routes under Active IPv6- Edit next to the interface. Routes. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 32: Ospf (Open Shortest Path First)

    • Cost – Enter the OSPF cost value. • Priority – Enter the OSPF priority value. • Area - Enter the area id for OSPF. You can check the current routing table under Status > Routes under Active IPv6- Routes. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 33: Quality Of Service (Qos)

    % limit that can be allocated above the link other traffic when QoS after all specific QoS classification rules have been share bandwidth %. applied. You can typically set this to Low or Medium. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 34: Dynamic Dns

    Source Port (range) – Enter the source port or source port range to apply the address QoS classification rule. • Destination Port (range) – Enter the source port or source port range to apply the QoS classification rule. • Dynamic DNS System > Dynamic DNS © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 35: File Sharing Server

    Samba Users list. This user account will have full read/write permissions on the USB share. Log File Viewer Allows you to view the log status for Dynamic DNS of your router. • Refresh – Clears any logged displayed and reload new logs © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 36: Wake On Lan (Wol)

    • Available – Displays the storage space currently available on the USB storage device. • Eject Device – Clicking the Eject button will allow you to safely remove/dismount and disconnect the USB storage device. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 37: Wireless Networking And Security

    • 20 MHz – This mode operates using a single 20MHz channel for wireless devices connecting at 802.11n on both 2.4GHz and 5GHz. This setting may provide © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 38 Wireless Security – Allows you to configure the wireless client devices. Checking this option will block communication encryption/security for the wireless band. See the “How to choose the between wireless client devices connecting with other © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 39: Multiple Ssid

    • Wireless Security – Allows you to configure the wireless encryption/security for the additional SSID. See the “How to choose the type of wireless security” and © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 40: How To Choose The Type Of Security For Your Wireless Network

    Setting up wireless security is very important. Leaving your wireless network open and unsecure could expose your entire network and personal files to outsiders. TRENDnet recommends reading through this entire section and setting up wireless security on your new access point.

  • Page 41: Secure Your Wireless Network

    TEW-929DRU TRENDnet User’s Guide possible connection speed. TRENDnet recommends setting your router to this Secure your wireless network encryption standard. If you find that one of your wireless network devices does not Network > Wireless 2.4GHz / 5GHz1 / 5GHz2 support WPA3 encryption, then set your router to either WPA2 or WPA encryption.
  • Page 42 Note: It is recommended to use port 1812 which is typical default port used for the RADIUS service. • Radius-Authentication-Secret: Enter the shared secret used to authorize your router with your RADIUS server. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 43: Guest Network

    Note: You can only select WPA2-PSK or WPA-PSK / WPA2-PSK Mixed Mode. EAP security cannot be applied to the wireless guest networks. • Protected Management Frames - This feature enables protection for multicast management action frames. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 44: Wifi Client Bridge Mode

    (1-8). In this mode, the device can only connect to one band at a time (2.4GHz or 5GHz) and will not provide any of the access control features typically provided in router mode. 1. Log into your router management page (see “Access your router management page” on page 6). © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 45: Connect Wireless Devices Using Wps

    3. To add a wireless device to your network, under WPS Method, next to Push Button, click the PBC Start button. Then push the WPS button on the wireless device (consult wireless client device’s User’s Guide for length of time) you are connecting to your router. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 46: Steps To Improve Wireless Connectivity

    WPS via PIN method. WPS Status d. Place the router in a location away from other electronics, motors, • Current Status – Displays the current WPS process status. and fluorescent lighting. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 47: Firewall & Security Settings

    If you are still experiencing low or no signal consider repositioning the wireless devices, installing additional access points or wireless extenders. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 48: Port Forwarding Rules

    3. Review the settings below. When complete, click Add to add the new entry to the list • External Port – Enter the external port number for the service to allow. and Apply to save and commit your changes. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 49: Ip Filtering

    • Schedule – Allows you to select a schedule when the IP filter rule should be enabled or disabled. 1. Log into your router management page (see “Access your router management page” on page 6). © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 50: Mac Filtering

    MAC Address – Click the drop-down list to select a device from the list or enter Choose the DoS prevention type to enable, TCP SYN flood, UDP flood, or ICMP flood. the MAC address manually. (e.g. a1:b2:c3:d4:e5:f6) • Enable – Check this option to enable DoS prevention. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 51: Dmz Host

    Enable – Check this option to enable DMZ host. • DMZ Host IP Address - Enter the IP address you assigned to the computer or network device to expose to the Internet. (e.g. 192.168.10.250) © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 52: Radius Authentication

    Note: You can also enter a consecutive range of • Enabled – Check this option to enable RADIUS authentication. ports in the following format: 80-90 • Server IP Address – Enter the IP address of the external RADIUS server. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 53: Multiple Wan Configuration

    2. Click on Multi-WAN / QoS and click on Multiple WAN. 3. Review the settings below. When complete, click Apply to save and commit your changes. Note: Multiple WAN diagnostics can be used under Administrator > Diagnostics under the MWAN Interface Diagnostics section. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 54: Link Tracking

    WAN2 interface. The WAN1 interface is not used. • Policy – This setting controls the default WAN mode for Internet connectivity access for all local interface such as LAN, wireless LAN, and VLAN interfaces. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 55: Web Management System (Bark®)

    % assignment. For example: If selecting a weight of 60% : 40% (WAN1:WAN2), 60% of all Internet sessions will be sent to WAN1 and the remaining 40% will be sent to WAN2. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 56: Setup Your Router With Bark

    Bark®. To configure the router date and time settings, refer to page 4. After enabling the Bark® service, click Sign Up & Activate. 5. Click Get Started and continue with the steps following to create your Bark account. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 57 TEW-929DRU TRENDnet User’s Guide 6. After your have successfully created your Bark account, click Next to add your router device to your Bark account. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 58 TEW-929DRU TRENDnet User’s Guide 7. On the next page, click Next. 8. On the next page, click Continue. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 59 If you are using the router on a home network, you can create a Bark profile named Children or Kids and apply the specific devices and rules later on. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 60 “Other”. If you would like to do that the TRENDnet TEW-929DRU router has been added to your Bark account. For this later, scroll to the bottom of the page and click Next or I’ll do this later.

  • Page 61: Virtual Private Networking (Vpn)

    Important Note: For any tunneling or VPN method used, to avoid IP address conflict and to ensure connectivity, it is required that each end (LAN IP network or single client) of the VPN tunnel is configured with a different IP network or subnet. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 62: Pptp Vpn Server

    Note: For the VPN client computer, you will require a third party PPTP VPN software to be installed configured matching the PPTP VPN settings on your router. Typically, PPTP VPN software is pre-installed with most operating systems. Please refer to your © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 63: Setting Up The Pptp Vpn Client (Windows)

    Note: This procedure provides a basic example how to setup PPTP VPN and establish connectivity using a Windows® 10 client computer. If you are using a different operating system or mobile device, please refer to the user’s guide/manual of the third party © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 64 10. You can choose to enter the account credentials in the fields provide for authentication or if not, you will be prompted when attempting to establish PPTP VPN connection to your TEW-829DRU router. Click Save. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 65: Setting Up The L2Tp Vpn Server Without Ipsec Encryption

    VPN clients are able to access the Internet and the router LAN network via full tunneling. If an IP address different from the LAN IP is entered, L2TP VPN clients will be allowed to access router LAN and not the Internet. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 66: Setting Up The L2Tp Vpn Client (Windows) With Ipsec Encryption (Psk)

    8. Click the VPN type drop-down list and select L2TP/IPsec with pre-shared key. 4. Under VPN, click Add a VPN connection. 9. Enter the IPsec pre-shared key (PSK). 10. Click the Type of sign-in info drop-down list and select User name and password. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 67: Ipsec (Internet Protocol Security)

    12. The status will display Connected if the PPTP VPN connection was successful. Example: VPN Router A LAN IP Settings: 192.168.10.1 / 255.255.255.0 VPN Router B LAN IP Settings: 192.168.100.1 / 255.255.255.0 © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 68 5. Click the Authentication type drop-down list and select IPSec IKEv2 PSK. 6. In the Local field, enter the local WAN1 IP address. (e.g. 10.10.10.10) This can also be a domain name (ex: dynamic DNS host name) © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 69 TRENDnet User’s Guide Based on the example, the network settings will be the following: 10. Under Authentication Key, enter the Pre-Shared Key (PSK) for the IPsec VPN tunnel and click Apply. (e.g. 1234567890) © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 70 3. Under Overview, enter a tunnel name and click Add. (e.g. Tunnel1) 4. Click the Connection type drop-down list and select Site-to-Site. 5. For the Authentication type drop-down list and select IPSec IKEv2 PSK. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 71: Setting Up Ipsec Server Vpn (Psk With Xauth)

    5. For the Authentication type drop-down list and select IPSec XAUTH PSK. 6. For the Local field, enter the local WAN1 IP address. (e.g. 10.10.10.10) This can also be a domain name (ex: dynamic DNS host name) © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 72 9. Under Authentication Key, enter the Pre-Shared Key (PSK) for the IPsec VPN tunnel. (e.g. 1234567890) 10. Under XAUTH Account, enter the User name and Password for the account, then click Add. Click Apply to save and commit the changes. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 73 Transform algorithm – The encryption/cipher algorithm used for IPsec phase 2. AES 256-bit offers the highest degree security. Hash algorithm – The authentication/hash algorithm used for IPsec phase 2. SHA2 256-bit offers highest degree of security. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 74: Setting Up Ipsec Site-To-Site Vpn Failover (Psk)

    5. Under the Link Tracking section, check Enable Tracking on both WAN1 and WAN2, VPN Router B LAN IP Settings: 192.168.210.1 / 255.255.255.0 and enter an IP address or IP addresses on the Internet to check for connectivity and © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 75 Apply. You can add additional local subnets by click the add icon (e.g. 9. Click the Failover drop-down list and select Enable. 192.168.30.0/24) 10. Click the Authentication type drop-down list and select IPSec IKEv2 PSK. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 76 WAN interface is up or down (e.g. 8.8.8.8). Set the Ping Interval and click Apply. (e.g. 1234567890) to 3 seconds, and Fail Count to 1 for both WAN1 and WAN2 and click Apply to save and commit the configuration changes. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 77 Apply. You can add additional local subnets by click the add icon (e.g. 192.168.20.0/24) 9. Click the Failover drop-down list and select Enable. 10. Click the Authentication type drop-down list and select IPSec IKEv2 PSK. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 78: Secure Socket Layer Vpn (Ssl) / Openvpn

    5. In the Country Code field, enter the two letter country code. (e.g. US) 6. In the State or Province Name field, enter the full name of the state or province. (e.g. California) © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 79 7. In the Local Name field, enter the city name. (e.g. Torrance) you created and click Apply to save and commit the changes. (e.g. SSL-VPN) 8. In the Organization Name field, enter your company name (e.g. TRENDnet) 15. Next to Client configuration file, click Export to download the configuration files for the VPN client computer.

  • Page 80: Ssl Vpn Client Setup (Windows)

    4. If prompted to run the file, click Run. 6. At the license agreement window, review the license agreement and click I Agree. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 81 7. At the choose components window, click Next. 9. At the prompt to install the TAP-Windows adapter, click Install. 10. At the installation completion window, click Next. 8. At the install location window, click Install. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 82 15. After right-clicking the icon, the menu will appear. Click Connect to establish your VPN connection to your router. 12. Copy the client configuration file(s) (client.ovpn) downloaded from the router to the following path without any sub-folders. C:\Program Files\OpenVPN\config © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 83 You will be able to access resources securely from your router LAN network over the Internet such as shared folders, media, files, etc. Note: To disconnect your VPN client connection, right click OpenVPN system tray icon and select Disconnect. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 84: Certificate Management

    Note: Setting this parameter is optional for IPsec VPN RSA. 2. Click on Management and click on Certificate Management. • Organization Name – Enter the company name for the certificate (e.g. TRENDnet) Note: Setting this parameter is optional for IPsec VPN RSA.

  • Page 85: Openvpn

    • Local Name – Enter the name of the city for the certificate. (e.g. Torrance) • Organization Name – Enter the company name for the certificate (e.g. TRENDnet) • Org. Unit – Enter the department or group name for the certificate (e.g. IT) •...

  • Page 86: Router Maintenance And Monitoring

    • Enable SSH – Checking this option will enabled secure command line interface access via SSH (Secure Shell) on the selected local interfaces. access via SSH (Secure Shell) on the selected WAN interfaces. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 87: Diagnostic Tools

    WAN1/WAN2 – You can select either WAN1 or WAN2 to conduct the connectivity test through a specific WAN interface for troubleshooting. Protocol – Select the IP protocol version for the connectivity test, IPv4 or IPv6. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 88: Speed Test - This Section Allows For A Speed Test Of Your Isp Connection

    Check IP Rules – This will display the current IP rules configured for the selected WAN interface. Check Routing Table – This will display the current default route configured for the selected WAN interface. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 89: Backup And Restore Your Router Configuration Settings

    4. A separate file navigation window should open. 5. Select the router configuration file to restore and click Upload Archive (Default Filename: backup-TEW-929DRU-YYYY-MM-DD.dat). If prompted, click Yes or OK. 6. Wait for the router to restore settings. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 90: Scheduled Automatic Reboot

    Click Apply to save and commit the changes. Command Line Interface • The router firmware is based on OpenWRT which is based on Linux and command usage can be refererenced from the web links below. https://busybox.net/downloads/BusyBox.html https://wiki.openwrt.org/doc/howto/user.beginner.cli https://wiki.openwrt.org/doc/uci © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 91: Router Default Settings

    WAN1 Primary / WAN2 Secondary 3. Next to Reset to defaults, click Perform Reset. When prompted to confirm this action, Failover click OK. 4. Wait for the router to settings to factory default. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 92: Upgrade Your Router Firmware

    TRENDnet may periodically release firmware upgrades that may add features or fix Proceed. Please wait for the online firmware upgrade procedure to complete problems associated with your TRENDnet router model and version. To check if there is successfully. a firmware upgrade available for your device, please check your TRENDnet model and Note: The Keep Settings option will upgrade the firmware version and preserve your version using the link.
  • Page 93 Unchecking the Keep Settings option will upgrade the firmware version and reset the device to factory defaults. 5. At the verification page, click Proceed. Please wait for the online firmware upgrade procedure to complete successfully. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 94: Ping Watchdog

    • Fail Count to Perform Reboot – Once ping/connectivity check fails, this sets the and running without reboot. maximum amount of attempts the router will attempt to check connectivity before initiating an automatic reboot. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 95 Memory Used – Displays the total amount of memory being used • Wireless 2.4GHz / Wireless 5GHz Operation Mode – Displays the current operation mode for the wireless band Wireless Mode – Displays the wireless mode of the wireless band © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 96 Default – Uses the internal loopback interface to conduct the connectivity test • WAN1/WAN2 – You can select either WAN1 or WAN2 to conduct the speed test through a specific WAN interface. • Server – Select the server to run a speed test with © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 97: Check Wifi Status Information

    1. Log into your router management page (see “Access your router management page” • Discarded bytes – Displays the amount of discarded bytes on page 6). 2. Click on Dashboard, then click on nDPI Statistics © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 98: Real-Time Graphs

    Dashboard > Real-Time Graphs selected Network Interface, as well as the amount of data in bytes. Data is refreshed every 15 seconds. This section displays the device real-time CPU load, traffic load, and connection/session information. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 99 Red graph: Displays the connections that do not use UDP or TCP protocol This chart shows the real-time traffic load • Blue graph: Displays the inbound traffic • Green graph: Displays the outbound traffic © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 100: View Routing Table And Arp Entries

    1. Log into your router management page (see “Access your router management page” on page 8). 2. Click on System and click on System Log. Note: The router system log will display the most recent entries in the list. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 101 TEW-929DRU TRENDnet User’s Guide © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 102: Technical Specifications

    IPsec VPN (AES-256/SHA-256/LAN-to-LAN) throughput: 90Mbps • • Static ARP (Up to 32 entries) SSL VPN (OpenVPN®) Throughput (Blowfish/SHA-1/Bridge): 15Mbps • Inter-VLAN Routing (Up to 8 VLANs, 8 IP interfaces) • SSID per VLAN assignment © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 103 802.11n (5GHz): -59 dBm (typical) @ 800Mbps • Backup and restore configuration • 802.11ac: -55 dBm (typical) @ 1733Mbps • Internal logging • Ping watchdog • Diagnostic tools: Built-in ping, traceroute, and ns-lookup network utilities © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 104 0° – 50° C (32° – 122° F) Operating Humidity • Max. 95% non-condensing Certifications • • Dimensions • 280 x 170 x 44.45mm (11 x 6.7 x 1.75 in.) • Rack mountable 1U height Weight • 1.24kg (2.74 lbs.) © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 105: Troubleshooting

    Wireless. d. Then click Obtain an IP address automatically and click OK. 5. Please see “Steps to improve wireless connectivity” on page 28 if you continue to have wireless connectivity problems. © Copyright 2023 TRENDnet. All Rights Reserved.

  • Page 106: Appendix

    2. In the Network Preference window, next to "Show:", select Network In MAC OS 10.4, from the Show drop-down list, select Built-in Status. You'll see your network status and your IP address settings displayed. Ethernet and select the TCP/IP tab. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 107 3. You may be prompted to enter a security key in order to connect to the network. 4. Enter in the security key corresponding to the wireless network, and click Connect. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 108 Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 109 Ce dispositive a ete concu pour fonctionner ave une antenna WiFi ayant un gain maximal de 5 dBi. Une antenne a gain plus eleve est strictement interdite par les reglemnets d’Industrie Canada. L’impedance d’antenne requise est de 50 ohms. © Copyright 2023 TRENDnet. All Rights Reserved.
  • Page 110 An RMA number is required in order to initiate warranty service support the event that the RMA unit needs to be replaced, TRENDnet may replace it with a for all TRENDnet products. Products that are sent to TRENDnet for RMA service must refurbished product of the same or comparable model.
  • Page 111 OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND evidence of the original purchaser's date of purchase. Replacement products may be OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY refurbished or contain refurbished materials. If TRENDnet, by its sole determination, is...
