1. Before You Start
Package Contents
•

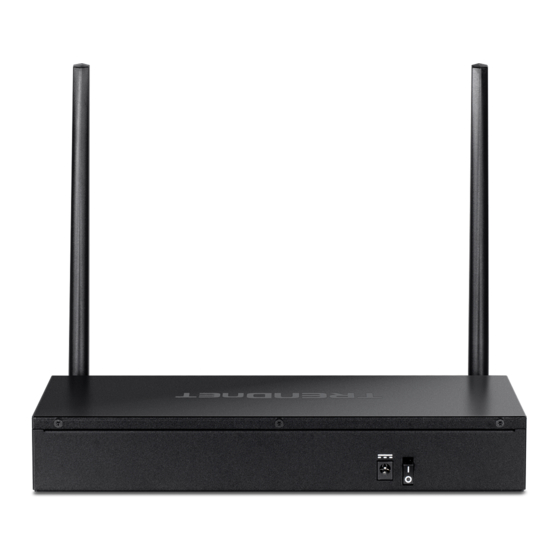

TEW-929DRU
•
Quick Installation Guide
•
2 x detachable high gain antennas
•
Network cable (1.5m / 5 ft.)
•
RJ-45 to RS-232 console cable (1.5m / 5 ft.)
•
Power adapter (12V DC, 2A)
•
Rackmount kit
Minimum Requirements
•
A computer with a wired or wireless network adapter and web browser
•
Broadband Internet
•
Installed modem
•
Network cable
Optional Equipment
•
EIA standard 19" rack
TEW-929DRU User Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRENDnet TEW-929DRU
Summary of Contents for TRENDnet TEW-929DRU
- Page 1 TEW-929DRU User Manual 1. Before You Start Package Contents • TEW-929DRU • Quick Installation Guide • 2 x detachable high gain antennas • Network cable (1.5m / 5 ft.) • RJ-45 to RS-232 console cable (1.5m / 5 ft.) •...
- Page 2 By default, the router web management configuration page can be accessed from LAN ports 1-3 using the URL http://tew-929dru or using the default LAN IP address http://192.168.10.1...
- Page 3 3. Hardware Installation and Configuration Note: It is recommended that you configure the wireless router from a wired computer. 1. Attach the antennas to the front of the router and position them for the best WiFi coverage. It is recommended that you position all of the antennas vertically as shown.
- Page 4 7. Enter the default User Name and Password, then click Login. By default, the pre-configured user name and password are located on the included preset wireless settings sticker or device label located on the bottom of the router.
- Page 5 8. To change the administrator password for the router configuration, click Management and click Administration. Note: By default the administrator password has been pre-configured for your convenience and can be located on the included wireless settings sticker or on the device label located on the bottom of the router. If you are modifying the administrator password, you will need to login to the router configuration using the new password.
- Page 6 10. To change your router LAN IPv4 address settings, click on Network and click LAN. 11. Under Common Configuration and General Setup, enter the new LAN IPv4 address and subnet mask in the IPv4 address and IPv4 netmask fields. Click Apply at the bottom of the page to save and commit the changes. Please wait for the new address settings to be applied and log back into the router web configuration page using the new LAN IPv4 address.
- Page 7 12. To configure your WAN1 Internet connection settings, click Network and click WAN. 13. Under Common Configuration and General Setup, click the Protocol drop-down list and select the appropriate protocol (Static address, DHCP client, PPTP, PPPoE, L2TP) for your Internet connection. DHCP client is the typical protocol in which the connection settings are automatically obtained by your ISP (Internet Service Provider).
- Page 8 14. To configure your wireless network name/SSID and wireless encryption settings, click Wireless and click the wireless band you would like to configure. Wireless 2.4GHz or Wireless 5GHz Note: By default, the wireless network name/SSID and wireless encryption has been pre-configured for your convenience and can be located on the included wireless settings sticker or on the device label located on the bottom of the router.
- Page 9 The wireless encryption key is the key your WiFi clients will need to enter when connecting to your router wireless network. Note: To download the latest version of the user’s guide, please go to http://www.trendnet.com/support and select the TEW-929DRU within the Product Download drop-down list.
-
Page 10: Important Note
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 11 This radio transmitter [6337A-TEW929DRU] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
