BluStream MX44KVM Quick Reference Manual

1
4x4 USB KVM Matrix
Introduction
FEATURES:
• 4x4 USB KVM Matrix allowing up to 4x USB peripheral devices to be shared between 4x host devices
• USB 3.0 conectivity with data transfer rates up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Plug-and-play with no drivers, downloads, or software required
• USB-A connections provide 5V 900mA
• Features 4x configurable GPIO ports for integration with 3rd party products
• Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
• Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
• Web interface module for control and configuration of the MX44KVM
• Control via front panel, IR, RS-232, and TCP/IP
Contact:
support@blustream.com.au
MX44KVM
Quick Reference Guide
1
2 3 4
USB HOST
DEVICE 1
1 2 3 4

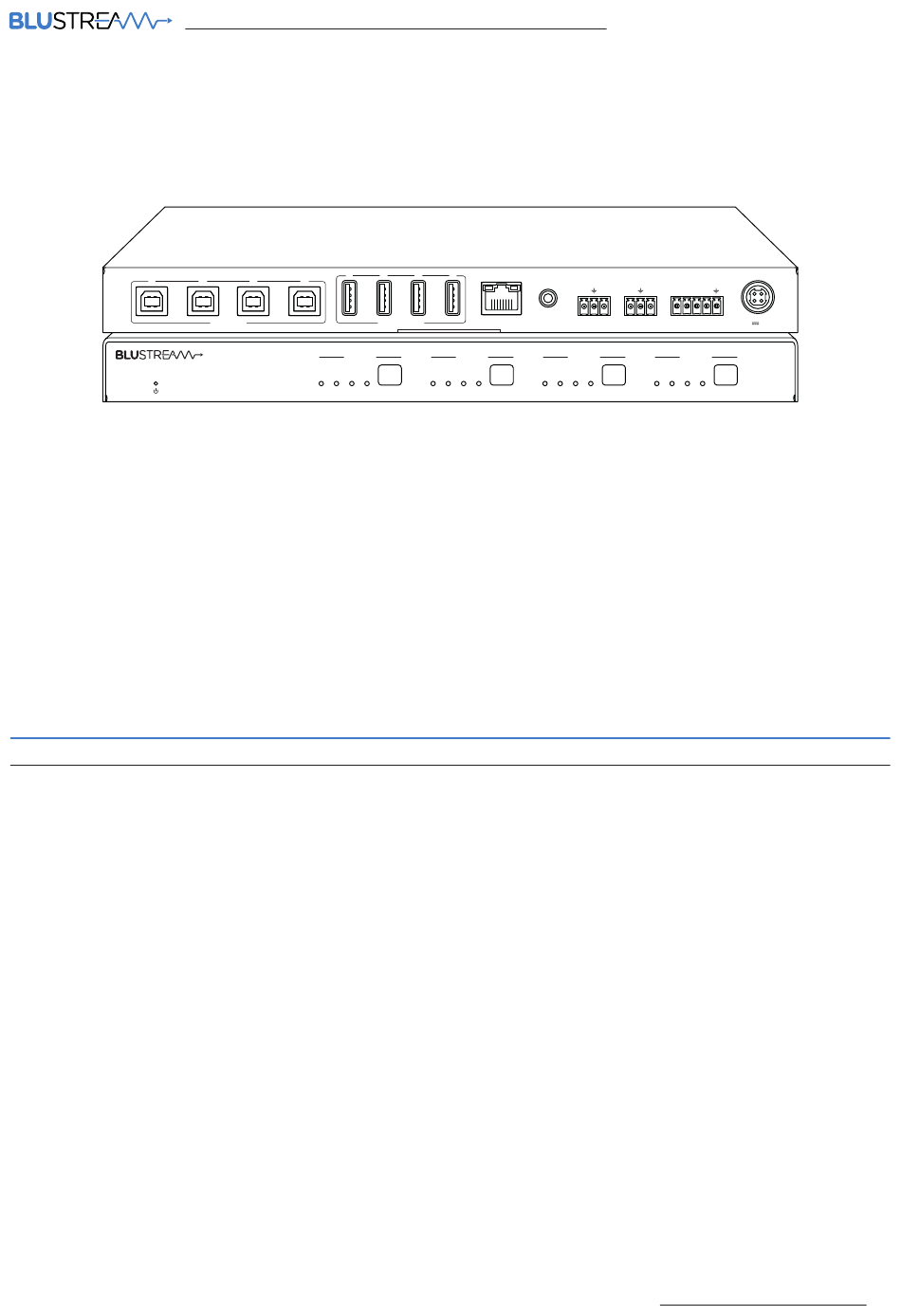

Our 4x4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom
and commercial installation market. The MX44KVM is a USB 3.0 Matrix package allowing 4x
USB peripheral devices to be shared between 4x host devices, supporting plug-and-play
capabliities, and USB data transfer rates up to 5Gbps.
The Matrix provides advanced features including cascading of multiple MX44KVM units,
GPIO functionality for 3rd party product triggers, an in-built web browser interface
module for control and configuration of the Matrix, along with RS-232 for seamless control
integration. An RS-232 loop-through connection allows for the MX44KVM to be intrinsically
linked to any Blustream video matrix product for the addition of KVM support to our
video-only switching products.
|
support@blustream-us.com
2 3 4
USB DEVICES TCP/IP IR CTRL
DEVICE 2
1 2 3 4 1
SELECT SELECT
|
support@blustream.co.uk
MX44KVM
QUICK REFERENCE GUIDE
TX RX TX RX 1 2 3 4
RS-232 1 RS-232 2 GPIO
DEVICE 3 DEVICE 4
2 3 4 1 2 3 4
SELECT SELECT
MX44KVM
24V 1.25A
01
