Coemar LEDko SHHH User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

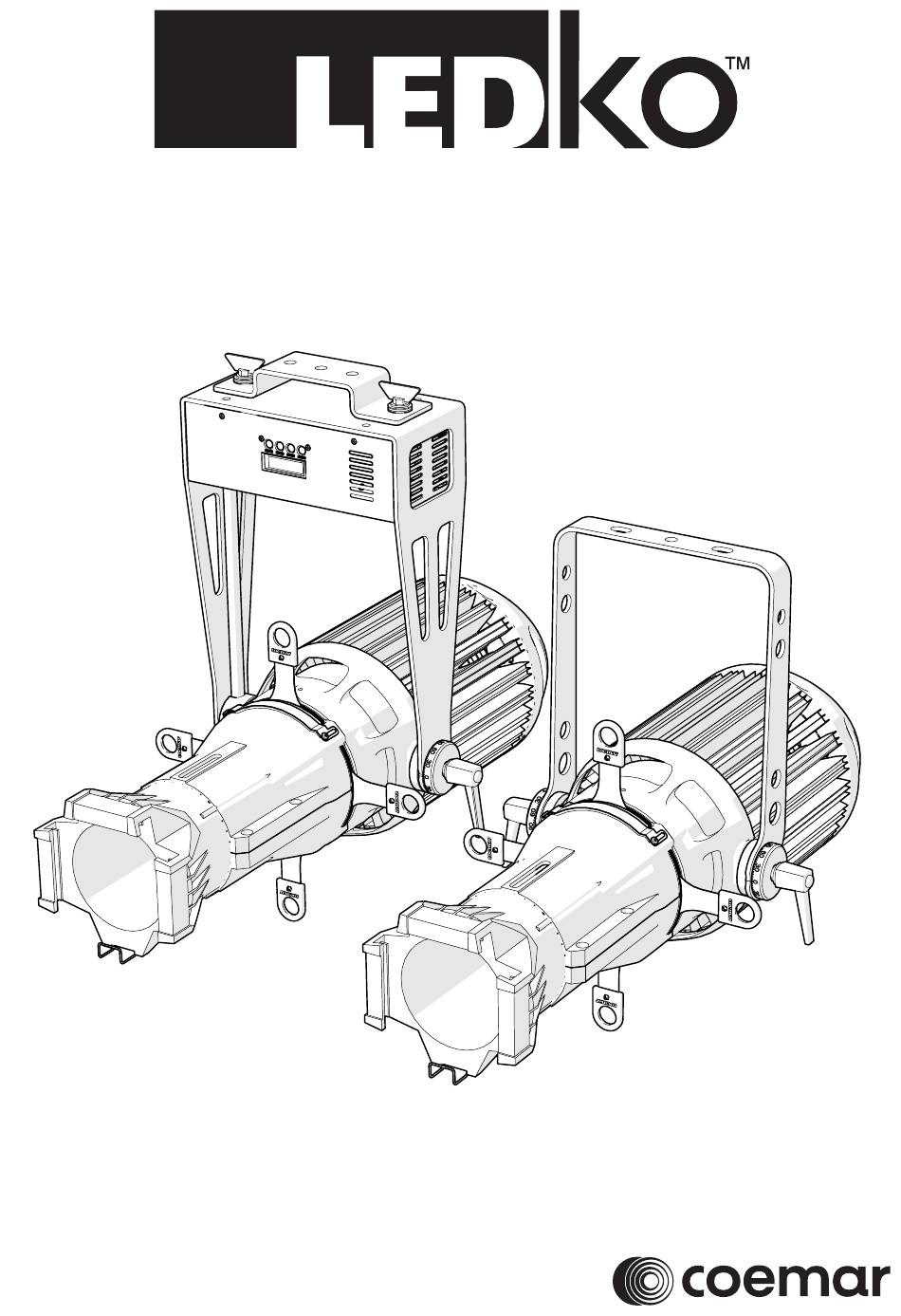

SHHH
Integrated Electronic
Remote Electronic
USER MANUAL
vrs. 1.1 - 26.08.2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDko SHHH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar LEDko SHHH

Summary of Contents for Coemar LEDko SHHH

  • Page 1 SHHH Integrated Electronic Remote Electronic USER MANUAL vrs. 1.1 - 26.08.2024...
  • Page 2 The Coemar logo, the Coemar name and all other trade-marks in this document pertaining to services or products by Coemar or its affiliates and subsidiaries are trademarks or licensed by Coemar or its affiliates or subsidiaries.

  • Page 3: Table Of Contents

    4.2 Integrated Electronic Mechanical installation............... Pag. 13 4.3 Safety chain..........................Pag. 14 4.4 Adjusting unit’s tilt........................Pag. 14 4.5 How to secure your optics on the LEDko SHHH..............Pag. 15 4.6 Where to make the hole......................Pag. 16 5. Powering up............................ Pag. 17 5.1 Operating voltage and frequency ..................
  • Page 4 15. Accessories and Spare parts ....................Pag. 72 16. Maintenance ..........................Pag. 74 16.1 Firmware update........................Pag. 74 16.2 Periodic cleaning........................Pag. 74 16.3 Periodic controls........................Pag. 74 16.4 Fuses............................Pag. 74 17. F.A.Q. and answers........................Pag. 75 User Manual 2024 coemar.com...

  • Page 5: Packaging And Transportation

    1 - Gobo holder 1 - 1.5 m power cable with PowerCON TRUE1 Top and bare ends Transportation The LEDko SHHH should be transported in either its original packaging or in an appropriate flight case. 2. General information Safety informations...

  • Page 6: Warranty Conditions

    1. The fixture satisfies the essential requirements of the directive 2004/108/EC, 2006/95/EC, 2011/65/EC, 2002/96/EC & 2003/108/EC. 2. The fixture is in accordance with the standard EN 50419 (RoHS) and satisfies the require- ments of the directive 2002/96/EC (WEEE). User Manual 2024 coemar.com...

  • Page 7: Product Specifications

    Fixed White: CRI 80 or 90 (T/D), CRI > 95 (Studio) Color Rendering Index (CRI) VariWhite: CRI > 95 FullSpectrum: CRI > 95 Weight (without optic) 12 Kg (26.45 lbs) (approximate) Max ambient temperature 0°C - +40°C / 32°F - 104°F IP rating User Manual 2024 coemar.com...

  • Page 8: Dimensions With Integrated Electronic

    Dimensions with Integrated Electronic 278 mm 135 mm 10.95 in 5.32 in 739 mm 29.09 in User Manual 2024 coemar.com...

  • Page 9: Dimensions With Remote Electronic

    Dimensions with Remote Electronic 260 mm 10.24 in 37 mm 1.46 in 739 mm 29.09 in Dimensions Power Supply Box 110 mm 190 mm 4.33 in 7.48 in User Manual 2024 coemar.com...

  • Page 10: Integrated Electronic Connection Panel Description

    Storage temp: -40°/50° C, -40°/176° F PowerCon DMX Out TRUE1 Top In PowerCon DMX In TRUE1 Top Out Integrated Electronic Display panel description Intensity / Display Selector Knob Menu button Plus button menu enter Enter button Minus button User Manual 2024 coemar.com...

  • Page 11: Remote Electronic Connection Panel Description

    DRY LOCATIONS 0.5 m IMPROPRE A L ’USAGE DOMESTIQUE EMPLACEMENTS SEC S MENU ENTER serial number Protection type automatic fuse: shut down o/p voltage re-power on to recover Menu button Enter button Plus button Minus button User Manual 2024 coemar.com...

  • Page 12: Installation

    . Installation Remote Electronic Mechanical installation LEDko SHHH may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram.

  • Page 13: Integrated Electronic Mechanical Installation

    Integrated Electronic Mechanical installation LEDko SHHH with Integrated Electronic may be hung from an appropriate structure in any posi- tion. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “B”, as shown in the following diagram.

  • Page 14: Safety Chain

    In order to adjust the tilt of the unit simply loose the side handle “C” adjust the tilt and lock the yoke by tightening the handle again. It is possible, if you need, to lock the projector in a specific degrees inclination “D”. User Manual 2024 coemar.com...

  • Page 15: How To Secure Your Optics On The Ledko Shhh

    How to secure your optics on the LEDko SHHH In order to secure all your optics on the LEDko SHHH, in addition to the standard knob “E” and screw “F”, you need to drill “G” the metal carter and thread it (view the next page so you can see exactly where to make the hole).

  • Page 16: Where To Make The Hole

    Where to make the hole See the diagram below in order to make the hole in the right place. User Manual 2024 coemar.com...

  • Page 17: Powering Up

    -40°C + 180°C, Coemar cod. CV5311). Connection to mains power LEDko SHHH is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures.
  • Page 18 The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regula- • tory norms is strongly recommended. LEDko SHHH should not be powered through a dimmer as this may damage the internal • switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are •...

  • Page 19: Control Signal Connections

    The digital control signal is transmitted to the projector via a two pole cable screened in accord- ing to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko SHHH labelled DMX512 IN e OUT.

  • Page 20: Turning On The Projector

    FullSpectrum: 16 / 7 / 1, Studio mode, RGB mode, fine RGB mode or Sunrise mode DMX addressing For example if you have a LEDko SHHH FullSpectrum, when powered up initially, each projector will show A001, which indicates DMX address 001; for example, when set at 16 channels a projec- tor thus addressed will respond to commands of channel 1 to 16 from your DMX 512 controller.
  • Page 21 The keys are locked Warning!! If you alter the DMX address with no DMX signal connected, the digits on the display panel will continue to flash even after you have pressed ENTER button to confirm the address. User Manual 2024 coemar.com...

  • Page 22: Dmx Chart - Fixed White

    DMX chart - Fixed White DMX modes channels ↓ channels channels Master Dimmer Master Dimmer Spare Channel Dimmer Fine Strobe Special Function User Manual 2024 coemar.com...

  • Page 23: Dmx Chart 5 And 1 Channels

    206 - 211 81% - 83% LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% User Manual 2024 coemar.com...

  • Page 24: Dmx Chart - Variwhite

    Tone Fine Led Fine Tone Fine White Proportional Cold White Tone White Tone White Led Tone White Strobe Step White Cold White Temperature Effect Tone Led Fine Fine Special Special Strobe Function Function Effect Special Function User Manual 2024 coemar.com...

  • Page 25: Dmx Chart 5 Channels

    4% - 52% special enables the automatic display blackout 134 - 185 53% - 73% functions disables the automatic display blackout 186 - 199 73% - 78% step no effect 200 - 255 78% - 100% User Manual 2024 coemar.com...

  • Page 26: Dmx Chart 2, 1 Channels

    0 - 255 - 100% from 0 to 100% white tone proportional proportional value from 2.700 K to 6.500 K 0 - 255 - 100% User Manual 2024 coemar.com...

  • Page 27: Dmx Chart Sunrise Mode

    0 - 255 - 100% from 0 to 100% cold white led proportional cold white led fine control 16 bit 0 - 255 - 100% fine User Manual 2024 coemar.com...

  • Page 28: Dmx Chart 2 Channels (Mk1)

    221 - 226 87% - 89% 6300 K 227 - 232 89% - 91% 6400 K 233 - 238 91% - 93% 6500 K 239 - 244 94% - 96% 5600 K 245 - 255 96% - 100% User Manual 2024 coemar.com...

  • Page 29: Dmx Chart 6 Channels

    221 - 226 87% - 89% 6300 K 227 - 232 89% - 6400 K 233 - 238 91% - 93% 6500 K 239 - 244 94% - 96% 5600 K 245 - 255 96% - 100% User Manual 2024 coemar.com...
  • Page 30 134 - 185 53% - functions disables the automatic display blackout 186 - 199 73% - no effect 200 - 255 78% - 100% Note 1: SPECIAL FUNCTIONS channel is not compatible with MK1 VERSION User Manual 2024 coemar.com...

  • Page 31: Dmx Chart - Fullspectrum

    Function Special Amber Amber Saturation Blue Function Strobe Strobe Blue Effect Effect Fine Special White Dimmer Fine Function Tone Special Saturation Function Strobe Tone Effect Green Special Tone Function Blue Tone White Tone Green Saturation Saturation User Manual 2024 coemar.com...

  • Page 32: Dmx Chart 16, 7, 1 Channels

    4% - 52% special 10 - step enables the automatic display blackout 134 - 185 53% - 73% functions disables the automatic display blackout 186 - 199 73% - 78% no effect 200 - 255 78% - 100% User Manual 2024 coemar.com...
  • Page 33 196 - 210 77% - 82% step 9.000 K 211 - 225 83% - 88% proportional proportional value from 9.000 K to 10.000 K 226 - 240 89% - 94% step 10.000 K 241 - 255 95% - 100% User Manual 2024 coemar.com...
  • Page 34 Increasing the DMX value augments the presence of magenta. Note 4: increasing the value of the saturation DMX channel the white tone (channel 14) will fade to the color selected by the channel 2 - 3 - 4 - 5 - 6 - 7. User Manual 2024 coemar.com...

  • Page 35: Dmx Chart Studio Mode

    Increasing the DMX value augments the presence of magenta. Note 2: increasing the value of the saturation DMX channel (channel 4) the white light will fade to the color selected with the HUE channel (channel 5) User Manual 2024 coemar.com...

  • Page 36: Dmx Chart Rgb Mode

    162 - 207 64% - 81% from slow to fast step stop strobe 208 - 209 82% - 82% random strobe effect with variable speed proportional 210 - 255 82% - 100% from slow to fast User Manual 2024 coemar.com...
  • Page 37 200 - 255 78% - 100% Note 1: increasing the value of the saturation DMX channel the white tone (channel 6) will fade to the color selected by the channel 3, 4 or 5 User Manual 2024 coemar.com...

  • Page 38: Dmx Chart Fine Rgb Mode

    162 - 207 64% - 81% from slow to fast step stop strobe 208 - 209 82% - 82% random strobe effect with variable speed proportional 210 - 255 82% - 100% from slow to fast User Manual 2024 coemar.com...
  • Page 39 200 - 255 78% - 100% Note 1: increasing the value of the saturation DMX channel the white tone (channel 6) will fade to the color selected by the channel 3, 4 or 5 User Manual 2024 coemar.com...

  • Page 40: Dmx Chart Sunrise Mode

    134 - 185 53% - 73% special functions step disables the automatic display blackout 186 - 199 73% - 78% no effect 200 - 255 78% - 100% Note 1: If channels 3 and 4 are used simultaneously, channel 4 prevails. User Manual 2024 coemar.com...

  • Page 41: Setup Via Rdm

    11.1 Quick guide to menu The LEDko SHHH required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually. RDM lets you set the DMX addresses of all the fixtures on the link, carry out fixture configuration and retrieve fixture data including details of any error that has been logged.

  • Page 42: Rdm Error Chart

    RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR DMX Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Check Wiring NTC Led Disconnected...

  • Page 43: Display Panel Functions

    ENTER button to access to any other function. By suitably using all the functions of LEDko SHHH, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 44: Fixed White Version

    (section SETTINGS). MEASURES: measures Check all the measures and product status (section MEASURES). FACTORY RESET: factory reset sure? Allows to return to the factory settings: Light Intensity: 80 DMX Channels: 5 Strobe: 0 User Manual 2024 coemar.com...

  • Page 45: Settings

    FAST (standard), SLOW, VERY very slow SLOW. FREQUENCY: frequency 600 Hz Shows the operating 600 Hz frequency of the LED 1500 hz (600 Hz as default). 2000 hz 5000 hz 20000 hz User Manual 2024 coemar.com...
  • Page 46 (this function allows to keep the settings in case of STARTUP) and “blackout” (in case of STARTUP, the projector will go into blackout). Display DISPLAY: Display settings (section DISPLAY) wifi WIFI: Wi-Fi settings (section WIFI - OPTIONAL) User Manual 2024 coemar.com...

  • Page 47: Display

    OFF HOLD: Press any key for 3 seconds to unlock. PIN: Use your personal lock pin to unlock. lock pin 0000 LOCK PIN: Allows to set your 0000 personal lock pin (from 9999 0000 to 9999). User Manual 2024 coemar.com...

  • Page 48: Auto Power Off

    BRIGHTNESS DISPLAY: brightness display Allows to change the brightness of the display (from 0 to 10). BRIGHTNESS KEY: brightness key Allows to change the brightness of the key (from 0 to 10). User Manual 2024 coemar.com...

  • Page 49: Measures

    (from 1 to 5) that the fixture occupies on the line. DMX REFRESH RATE: dmx refresh rate Shows the refresh rate 0 hz of the DMX signal sent by the console. User Manual 2024 coemar.com...
  • Page 50 (section ERROR MESSAGES). FIRMWARE VERSION: fw version Shows the firmware 0 bl-0 v0.053-0113 version currently installed in the fixture (as you can see in the example). User Manual 2024 coemar.com...

  • Page 51: Variwhite Version

    2.700 K 2900 k and up to 6.500 K, manually selectable 3000 k without the need of a DMX 3100 k console. 3200 k 3300 k 3400 k 3500 k 3600 k 6500 k User Manual 2024 coemar.com...

  • Page 52: Factory Reset

    (section SETTINGS). MEASURES: measures Check all the measures and product status (section MEASURES). FACTORY RESET: factory reset sure? Allows to return to the factory settings: Light Intensity: 80 CCT: 4.400 K DMX Channels: 5 Strobe: 0 User Manual 2024 coemar.com...

  • Page 53: Settings

    5 CH It is possible to choose 5 CH between 5, SUNRISE, SUNRISE RAW, 1 or 2 modalities, in which the projector will operate. N.B. This configuration 1 CH represents the Manual Zoom version 2 CH User Manual 2024 coemar.com...
  • Page 54 It is possible to choose maintain between “maintain” (this BLACKOUT function allows to keep the settings in case of STARTUP) and “blackout” (in case of STARTUP, the projector will go into blackout). Display DISPLAY: Display settings (section DISPLAY) User Manual 2024 coemar.com...

  • Page 55: Display

    OFF HOLD: Press any key for 3 seconds to unlock. PIN: Use your personal lock pin to unlock. LOCK PIN: lock pin 0000 Allows to set your 0000 personal lock pin (from 9999 0000 to 9999). User Manual 2024 coemar.com...
  • Page 56 BRIGHTNESS DISPLAY: brightness display Allows to change the brightness of the display (from 0 to 10). BRIGHTNESS KEY: brightness key Allows to change the brightness of the key (from 0 to 10). User Manual 2024 coemar.com...

  • Page 57: Measures

    (from 1 to 5) that the fixture occupies on the line. DMX REFRESH RATE: dmx refresh rate Shows the refresh rate of 0 hz the DMX signal sent by the console. User Manual 2024 coemar.com...
  • Page 58 This menu eventually shows the alarm statuses if there is any (section ERROR MESSAGES). FIRMWARE VERSION: fw version Shows the firmware 1 bl9-0 v0.052-0c08 version currently installed in the fixture (as you can see in the example). User Manual 2024 coemar.com...

  • Page 59: Fullspectrum Version

    2.700 K and 3200 k up to 20.000 K, manually selectable without 3500 k need of a DMX console. 4000 k 4500 k 5000 k 5600 k 6000 k 6500 k 20000 k User Manual 2024 coemar.com...

  • Page 60: Color Gels

    This settings allows you to create your own custom gel by mixing the six color at your will. Every color is adjustable from 0 to 255. STROBE: strobe Manually sets the strobe DMX channel. EFFECTS: effect Effects settings (section EFFECTS). User Manual 2024 coemar.com...
  • Page 61 Manually sets various settings of the projector (section SETTINGS). MEASURES: measures Check all the measures and product status (section MEASURES). FACTORY RESET: factory reset sure? Allows to return to the factory settings: Light Intensity: 80 DMX Channels: 16 User Manual 2024 coemar.com...

  • Page 62: Settings

    It works for all the CCTs. SMOOTH: smooth smooth fast Allows to change the slow fast speed of every dimming slow curve between FAST (standard), SLOW, VERY very slow SLOW. (Firmware version: 0.76 or following) User Manual 2024 coemar.com...
  • Page 63 BLACKOUT function allows to keep the settings in case of STARTUP) and “blackout” (in case of STARTUP, the projector will go into blackout). DISPLAY: Display Display settings (section DISPLAY). WIFI (OPTIONAL): wifi WiFi settings (section WIFI). User Manual 2024 coemar.com...

  • Page 64: Display

    OFF HOLD: Press any key for 3 seconds to unlock. PIN: Use your personal lock pin to unlock. LOCK PIN: lock pin 0000 Allows to set your 0000 personal lock pin (from 0000 to 9999). 9999 User Manual 2024 coemar.com...
  • Page 65 BRIGHTNESS DISPLAY: brightness display Allows to change the brightness of the display (from 0 to 10). BRIGHTNESS KEY: brightness key Allows to change the brightness of the key (from 0 to 10). User Manual 2024 coemar.com...

  • Page 66: Effects

    (type RBW); POLICE Y: replicates the yellow police flashing lights; FIRE: replicates the effect of fire from minimum (candle type) to maximum (blaze type); PAPARAZZI: replicates the Pa- parazzi effect, a random flash- ing white light. User Manual 2024 coemar.com...
  • Page 67 PARAMETER Speed Power EFFECT ∙ Color Wheel ∙ ∙ RGB Random ∙ Color ∙ Color Random Police B Police RB1 Police RB2 Police RBW Police Y ∙ ∙ Fire ∙ Paparazzi User Manual 2024 coemar.com...

  • Page 68: Measures

    (from 1 to 5) that the fixture occupies on the line. DMX REFRESH RATE: dmx refresh rate Shows the refresh rate of 0 hz the DMX signal sent by the console. User Manual 2024 coemar.com...
  • Page 69 (section ERROR MESSAGES). FIRMWARE VERSION: fw version Shows the firmware 0 bl-0 v0.053-0113 version currently installed in the fixture (as you can see in the example). User Manual 2024 coemar.com...

  • Page 70: Wi-Fi Menu (Optional)

    WIFI TO CABLE: Replicate the DMX signal received via Wireless with the cable (Off / On) ATTENTION: do not connect other sources, such as consoles, DMX when the function is active. User Manual 2024 coemar.com...

  • Page 71: Special Function And Error Messages

    14.2 Error messages If a malfunction occurs, LEDko SHHH has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 72: Accessories And Spare Parts

    . Accessories and Spare parts LEDko SHHH is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished blades BC10011A200 Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube...
  • Page 73 BC10011A044 max. load 20 Kg. All the components of LEDko SHHH are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.

  • Page 74: Maintenance

    Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 16.4 Fuses LEDko SHHH has an automatic fuse that in most cases does not need to be replaced. User Manual 2024 coemar.com...

  • Page 75: And Answers

    • Check DMX address of the unit; Help from Coemar Technical Services If you are having difficulties and your problem is not addressed by this document, contact Coemar Technical Services directly at one of this email address: info@coemar.com / service@coemar.com...

  • Page 76: User Notes

    User notes ............................................................................................................................................................................................................................................................................................................................................................................................User Manual 2024 coemar.com...
  • Page 77 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 78 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
