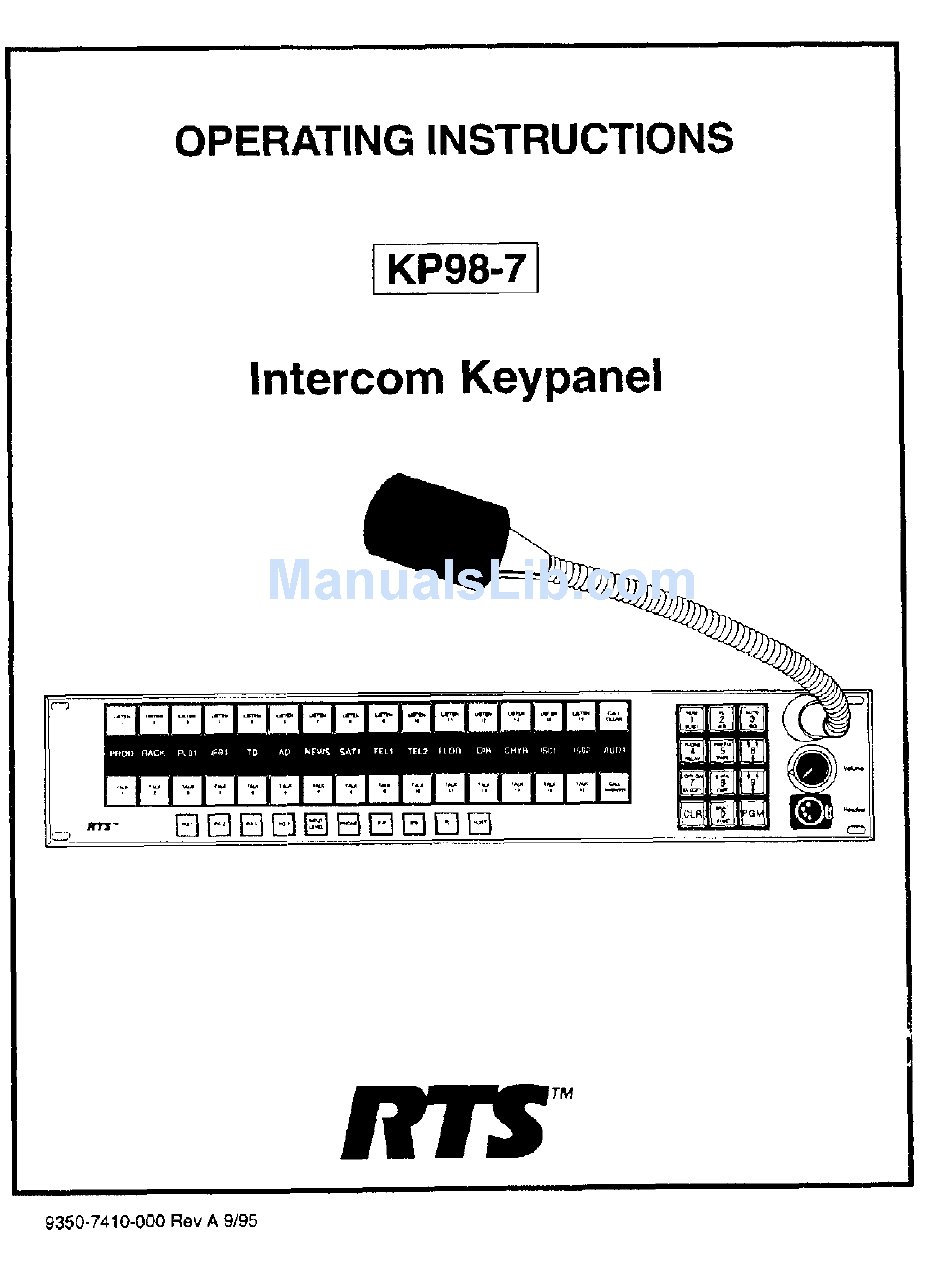

OPERATING INSTRUCTIONS
Intercom Keypanel
9350-7410-000 Rev A
9/95

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-98-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTS KP-98-7

Summary of Contents for RTS KP-98-7

  • Page 1 OPERATING INSTRUCTIONS Intercom Keypanel 9350-7410-000 Rev A 9/95...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION 1: KP98-7 EKP98-0 OPERATION ........... USING A HEADSET .

  • Page 3: Ekp98-0 Operation

    SECTION 1: KP98-7 EKP98-0 OPERATION Listen Keys Display Window Talk Keys Function Keys 5. Programming Keypad and LoudsDeaker 6. Headset Connector Dual Volume Conlrol Gooseneck Microphone Call Waiting Keys and Display USING A HEADSET Plug in the headset. HDST Tap the button to turn the headset on or off.

  • Page 4: Iscoming Intercom Call Indications

    If you cannot hear the person to whom you are talking, tap the listen key directly above the talk key. When a talk key is pressed, the corresponding alpha-numeric display may alternate between the NOTE: normal display and a double asterisk There are two occasi~~ns when this happens.
  • Page 5 3. Press the down or up arrow on the programming keypad to change the level. The range of adjustment is +6 dB to -99 dB. 4. After setting the level as desired, tap the PHONE Key You use the PHONE key to place the keypanel in dialing mode. 1.

  • Page 6: Prograhiming The Keypanel

    SECTION 2 PROGRAMMING THE KEYPANEL GENERAL CSedit is the primary tool for creating and saving intercom system configurations. However, a keypanel's setup may also be modified using the programming keypad on the keypanel, provided restrictions have not been imposed using CSedit. If you try to program a restricted key or function, the programming will be ignored.

  • Page 7: Display Requests

    DISPLAY REQUESTS DISPLAY REQUESTS USIN(> KEYPAD SEQUENCES There are a number of keypad key sequences which may be used to request information about the keypanel and its current setup. All display request sequences start with F U N C D I S P L A Y Keypanel Identification FUNC-DISPLAY-1 This sequence displays the panel number of the keypanel in the call waiting window for about 2 seconds.
  • Page 8 Keypanel And Expansion Panel Setup Page Numbers Each keypanel has four setup pa;ges. Each setup page defines a complete set of talk and listen key assignments for one panel. One setup page is required for the main keypanel, and one is required for each expansion panel connected to the main keypanel.

  • Page 9: Display Requests Using Scrolling

    DISPLAY REQUESTS USING SCROLLING The display requests described previously can also be accessed using scrolling. Scrolling also offers several additional features. To use scrolling, enter: FUNC-DISPLAY to !scroll up or down in the list of display requests. 2. The display request names will appear in the Incoming Messages window as listed below. When the desired display request name is selected, tap the PGhl key to view the requested information.

  • Page 10: Assigning Setup Pa,Ges

    ASSIGNING SETUP PA,GES Note: Although the programming keypad can be used to change setup page assignments, it is easier to use the PG function buttons to do this. See page 1-2. To assign a setup page using th~z programming keypad: On the main keypanel, tap the E-PNL key.

  • Page 11: Programming Talk And Listen Keys

    PROGRAMMING TALK AND LISTEN KEYS GENERAL Use of the PP, IFB, PL function buttons to program key assignments was described on page 1-3. There are three additional ways to program talk and listen keys: Using Keypad Numeric En~try: Using this method, you enter the panel number, party line number etc that you wish to assign to a key.
  • Page 12 2. I l the keypanel, belt pack etc. that you want to assign to a key is located in a remote intercom system, enter the intercom system number (7 for example). Otherwise, skip to step 3. Note: Intercom system numbers are the numbers that appear in the "Iem" column in CStrunk when you select "Names"...
  • Page 13 Assigning a Party Line to a Key party l ~ n c is a group of intercom stations that can always talk andlor listen to each other. Party lines in CSedit. Once a pm:y line has been set up, it can be assigned to a key as follows: Tap the PL key.
  • Page 14 Assigning a Special Function to a Special Functions are additional key assignments that can be programmed to talk and listen keys. There are five special functions availa'ble. Each special function has a default two-character name for display purposes (the default names can be changed in CSedit): Name Description Auto Follow (for listen keys only): Auto follow causes a listen key's assignment to...
  • Page 15 tap 5 for All Call After selecting a special function, tap the Press a listen key (for all features except All Call) or a talk key (All Call only) talk key is pressed for All Call, "AC" will appear in the alpha-numeric display above the key (on If a keypanels so equipped).
  • Page 16 Assigning a Special List to a Key Intercom stations, party lines etc. are always assigned to a special list using CSedit. Once a special list bccr~ set up, you may access all personnel on the list using a talk and/or listen key on your keypanel Special lists are typically used for paging or monitoring selected groups of people.
  • Page 17 Assigning an IFB to a Key A n IFR (fntermpt Foldback) bus is an output whlch normally hears a program source. When a keypanel c,~ll\ the IFB output, the program is interrupted and the caller can talk to the person at the IFB output. IFB outputs are defined using CSedit.
  • Page 18 Assigning an to a Key AII I S 0 channel allows a keypanel user, by pressing a talk key, to completely isolate, or cut off. corn~nunications at a camera or other device (including another keypanel) and establish a private conversation with that camera Cnrneras and other devices are assigned to ISO's using CSedit.
  • Page 19 a Relay a Key Assigning If your intercom system is equipped with relay frames, you can assign a relay to a keypanel key and then prcis the key to activate the relay. To assign a relay to a key: FUNC Tap the key.
  • Page 20 Programming a Stacked Talk Key A stacked talk key activates two types of communication at once. For example, a stacked talk key could simultaneously activate audio o ~ ~ t p u t to a transmitter and key the transmitter using a relay. The audio output is called a level 1 assignment and the relay is called a level programmed as a normal talk key assignment may be stacked (except that all-call cannot be assigned to level 2).
  • Page 21 PROGRAMMING KEY ASSIIGNMENTS USING COPY There are two ways to copy key assignments: 1) you can copy a call from the call waiting window to a or 2) you can copy one key assignment to another key. Copying a Call from the Call1 Waiting Window to a Key \Vhile the caller's name is displayed in the call waiting window, tap the 2.
  • Page 22 PROGRAMMING KEY ASSIGNMENTS USING ALPHA SCROLLING Alpha scrolling lets you scroll t:hrough a list of names of panels, party lines etc in the call waiting window. Once the desired name is displayed in the window, you can copy it to a key. There are four scrolling modes: intercom, type, prefix and single-step.
  • Page 23 should display immediately. By default. CSedit restricts all names, except point-to-point names, from appearing in scroll lists at keypanels on remote intercom systems. This is accomplished by placing a check mark in the "Universal Scroll Restrict" field for each party line, IFB, I S 0 etc. You must run CSedit and turn off this restrict flag for every party line, IFB etc that you want to make available to remote intercom systems.

  • Page 24: Clearing Or Canceling A Key Assignment

    CLEARING OR CANCELING A KEY ASSIGNMENT There are two ways to clear a key assignment: 1. Copy the key assignment of an unused key to the key that you want to clear or... 2. Clear the call waiting window (press the CALL CLEAR key). Then, copy the call waiting window to the key that you want to clear.
