T1RM3F4(D): Configuration of Mercury Boards:
1. Fasten spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access
controller (Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury/LenelS2 Access Controller
LP1502, MR52, MR16IN, MR16OUT
LP2500, MUX8
LP1501, MR62e
MR50

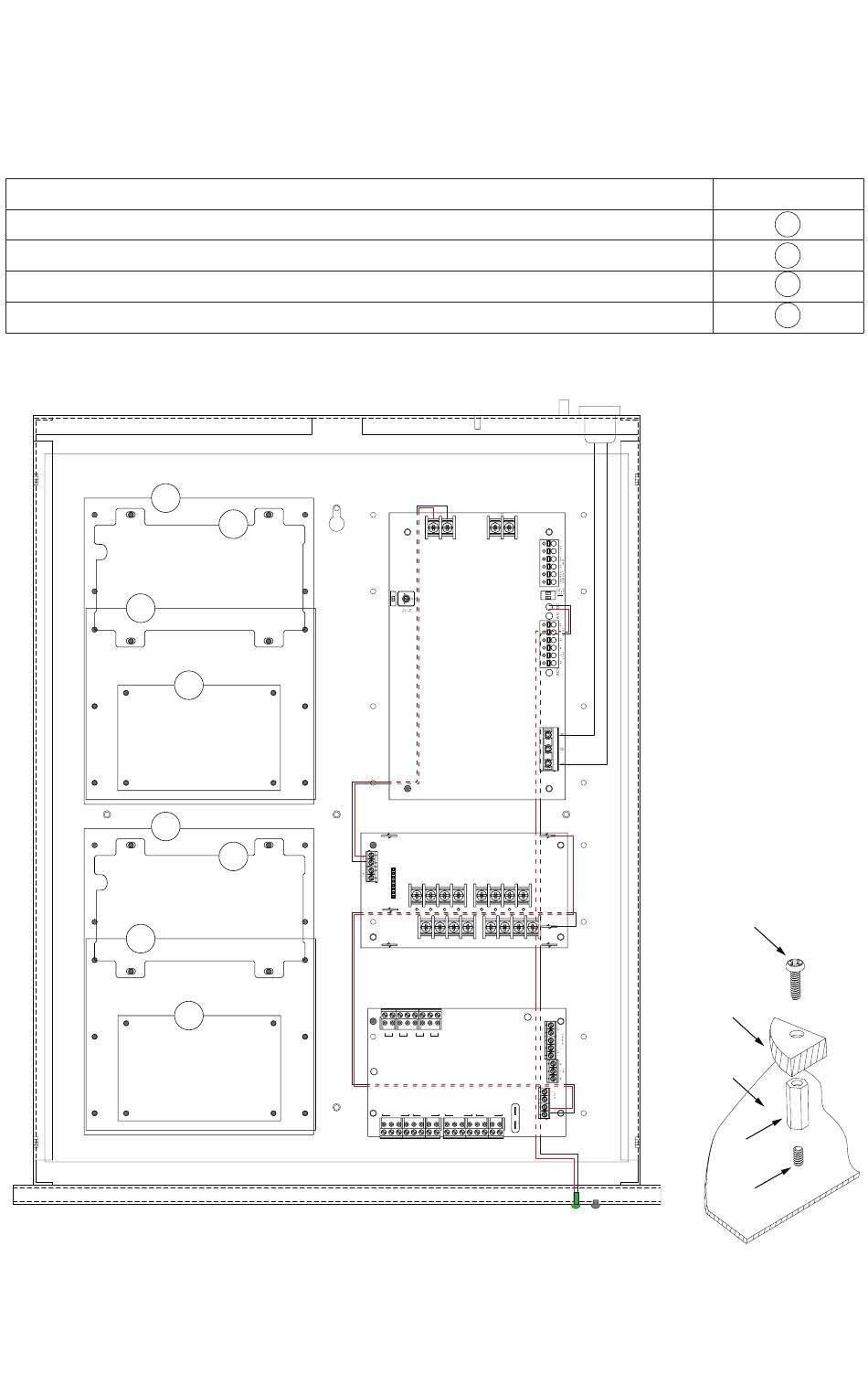

Fig. 5
A
B
A
B
T1RM3F4(D) Installation Guide
C
D
C
D
To IEC connector
ON
Altronix
eFlow6NB
PWR1+
Altronix PDS8(CB)/VR6
P P
COM(-)
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
N
PWR1+ 1 2 3 4 5 6 7 8
Common Power Outputs (NEG)
VR6 is mounted
under PDS8(CB)
TRIGGER
INPUT
TRG
IN GND IN GND IN GND IN GND
1 2 3 4
Altronix ACM4(CB)
MAIN
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
To LED lense
PWR1+
Pan Head Screw
N
COM(-)
PWR2+
Mercury Board
RoHS
Backplane
ACM4
ACCESS POWER
CONTROLLER
Pem Mounting
A
B
C
D
Fig. 5a
Spacer
Pem
