Summary of Contents for Briteq BT-THEATRE 100MZ
-
Page 3: Before Use
• Manual or DMX-controlled: 4 different channel modes (8bit & 16bit dimming) for maximum flexibility. • Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® code: 4645) • Flicker free TV-recordings thanks to 1.2kHz LED refresh rate! •... -
Page 4: Safety Instructions
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/11 BT-THEATRE 100MZ ®... - Page 5 No extra settings to be made in the setup menu, just follow the procedure in the user ® manual supplied with the WTR-DMX DONGLE from BRITEQ . The separate WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: 4645) 7.
-
Page 6: Overhead Rigging
• Press the ▲/▼buttons until the desired function is showing on the display and confirm with [ENTER]. • Use ▲/▼ buttons to select the desired mode: • Press the [ENTER] button to save the setting. BRITEQ 4/11 BT-THEATRE 100MZ ®... - Page 7 • Use ▲/▼ buttons to select the desired mode: • [LED] The projector follows the instructions instantly, no delay. • [HALOGEN] The projector imitates the behavior of a halogen lamp (slower reaction time). • Press the [ENTER] button to save the setting. BRITEQ 5/11 BT-THEATRE 100MZ ®...
- Page 8 • [USER Def.] was selected: the display shows “LOAD” • Use ▲/▼ buttons to select LOAD / SAVE • Press the [ENTER] button and use ▲/▼ buttons to confirm YES / NO • Press the [ENTER] button to confirm. BRITEQ 6/11 BT-THEATRE 100MZ ®...
-
Page 9: Electrical Installation
• Press the [ENTER] button: the display shows the firmware version. Note: The firmware of this unit can be upgraded using our special “Firmware Updater 2” (separately available from Briteq). More information about this can be found in the user manual of the firmware updater or our website: https://briteq-lighting.com/firmware-updater-2... - Page 10 The DMX-controller send a WIRELESS DMX-signal to all units. • Mixed W-DMX: the first projector is equipped with an optional WTR-DMX DONGLE ! (Briteq code: 4645). The wireless DMX-signal sent to the first projector is also available on its DMX-output. All other DMX- equipment can be connected to the first projector using a standard DMX-cable.
-
Page 11: Maintenance
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 9/11 BT-THEATRE 100MZ ®... -
Page 12: Specifications

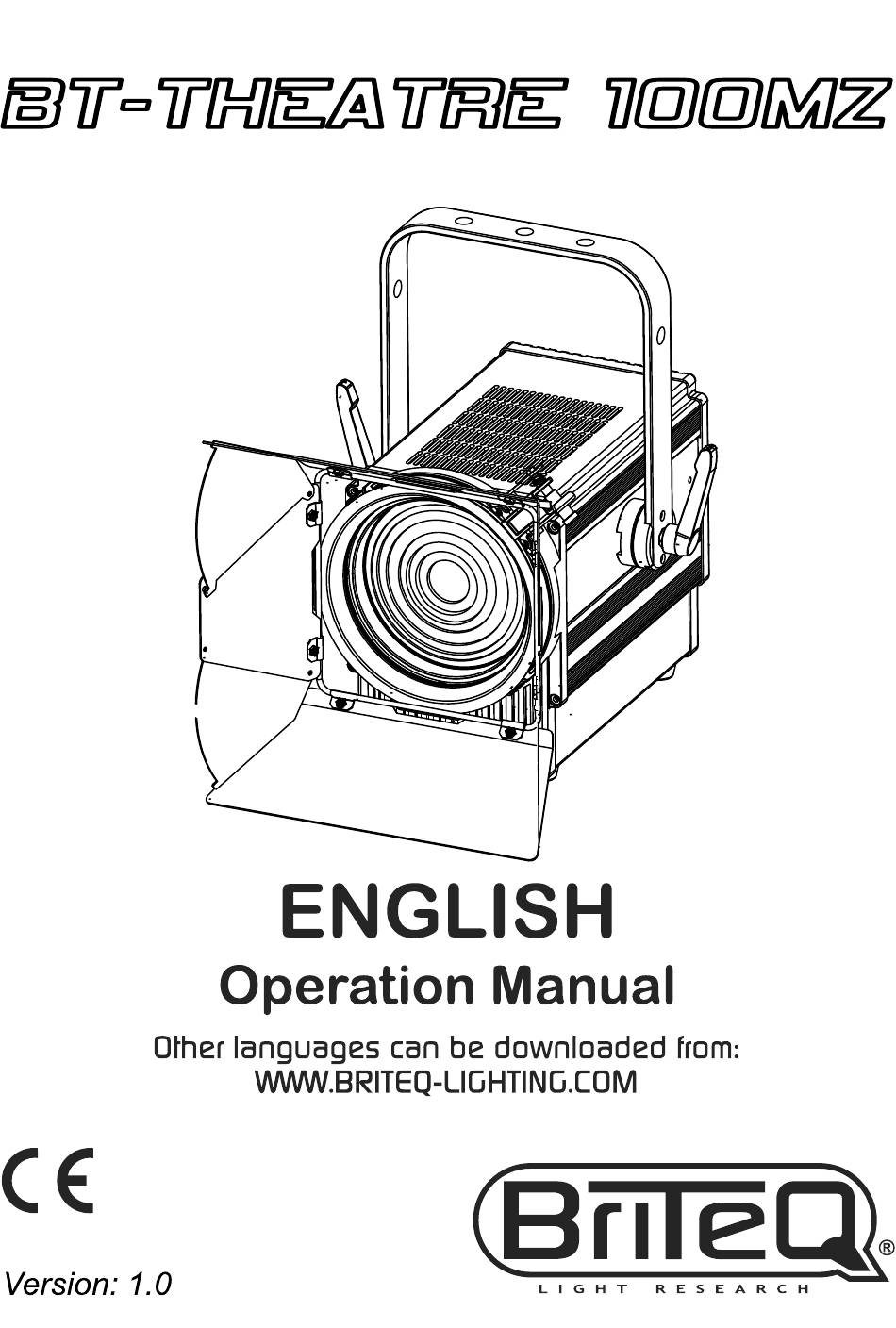

3&5 pin-XLR male / female inputs + outputs Lamp: LED, 100W Warm white CCT 3000K (+/-100K) CRI: >95 Beam Angle: manual zoom 12° ~ 45° Field Angle: manual zoom 22° ~ 60° IP-Rating: IP30 Size: See drawing Weight: 7,25 kg (including barndoor) BRITEQ 10/11 BT-THEATRE 100MZ ®... - Page 13 ENGLISH OPERATION MANUAL DIMENSIONS: The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 11/11 BT-THEATRE 100MZ ®...
