- Page 1 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Worlde ORCA PAD16 MIDI Controller User’s Manual - 1 -...
-
Page 2: Table Of Contents
4.7 Note Repeat Configuration button ............................8 4.8 Note Repeat button ................................... 8 4.9 Full Sized USB connector ................................ 9 5. USING THE ORCA PAD16 WITH YOUR DAW ........................9 6. APPENDICES ..................................9 APPENDIX A- ASSIGNABLE CONTROLLER LIST ........................9 Appendix B- Toxic or Hazardous Substances and Elements .................... -
Page 3: Introduction
Drive free and hot-plug supported. Integrated perfectly with DAWs (such as Ableton Live, Bitwig and so on) for both production and performance. Edited by the ORCA PAD16 Software Editor which could be downloaded from www.worlde.com.cn. - 3 -... -
Page 4: Getting Started

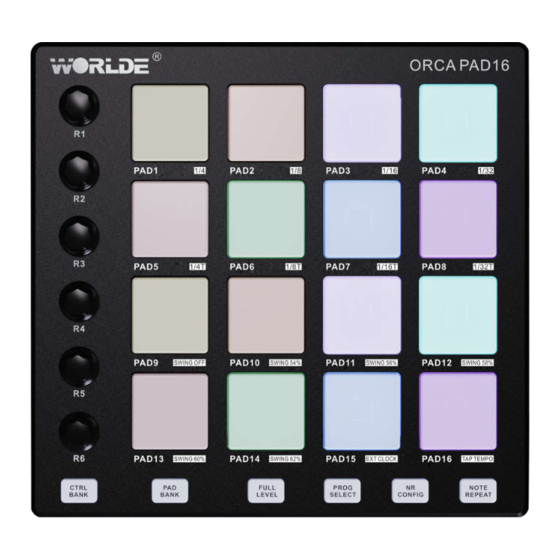

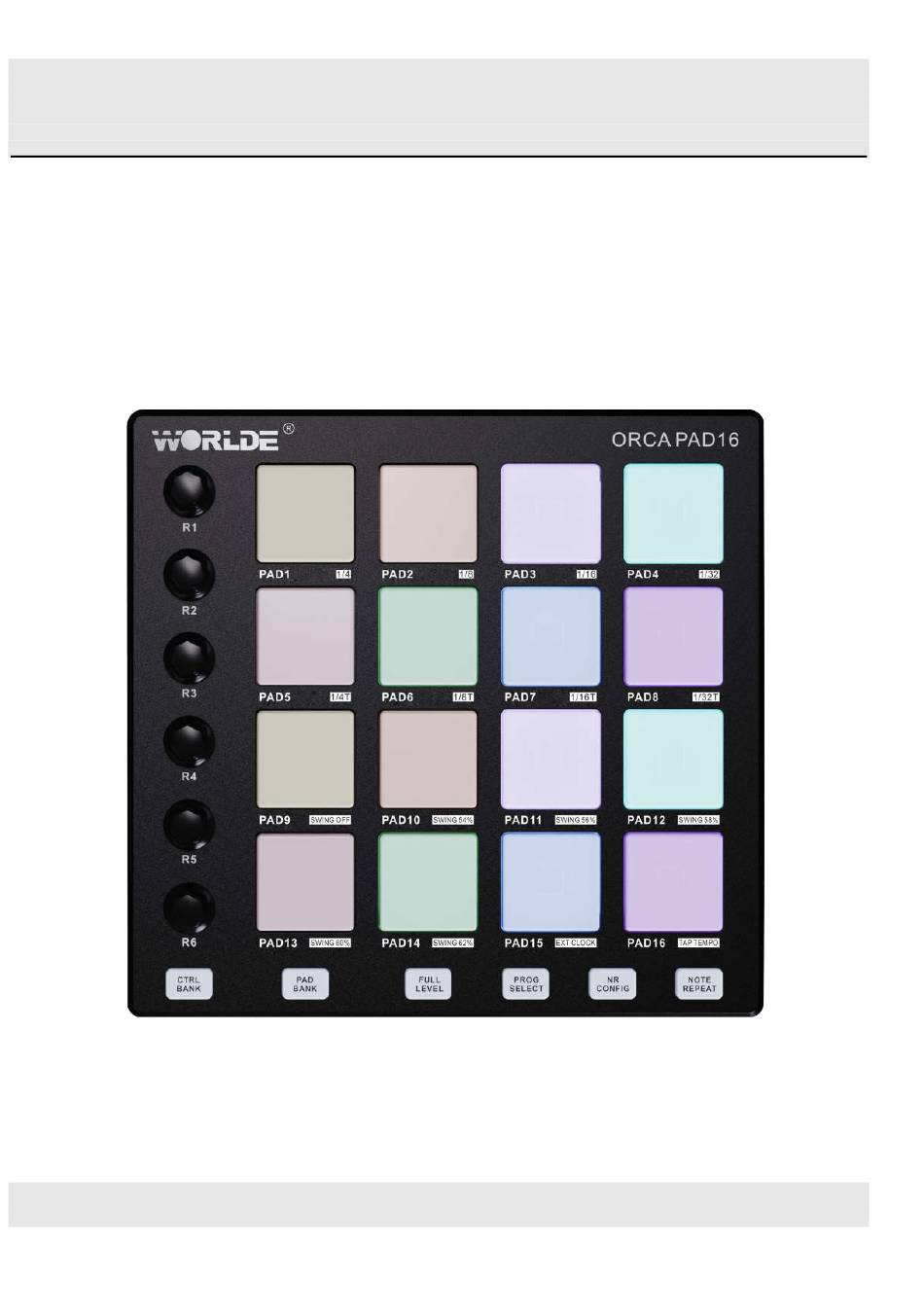

HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 3. Getting Started 3.1 ORCA PAD 16 Overview 3.1.1 Top Panel Overview - 4 -... -
Page 5: Setup
3.2.2 Using The ORCA PAD16 With Your Software When installed, the ORCA PAD16 appears as a simple MIDI device with one input port and one output port. You should select the listed USB MIDI Controller input port as the MIDI input device in your software. Once this is set, your software should be able to receive notes and controller data from the ORCA PAD16. -
Page 6: Connecting To A Computer
3.4 Connecting to Mobile Devices 3.4.1 iOS To operate your ORCA PAD16 with an iOS device, use Apple’s Lightning to USB 3 Camera Adapter with a separate 2.4A Lightning charger. 3.4.2 Android To operate the ORCA PAD16 with an Android device we’d like to recommend a USB OTG to USB adapter. -
Page 7: Parts And Their Functions
The 6 assignable knobs on your ORCA PAD16 is able to send any of the 128 standard MIDI controller messages to control such parameters. Please note that in order for these effects to work, the device you are sending to must be able to receive these messages. A full list of these control messages is given in Appendix A. -
Page 8: Control Bank Button/Reset Button
• Pad 16 (Tap Tempo): Press this pad at the desired rate to enter a new tempo. ORCA PAD16 will detect the new tempo after 3 taps. The pad will flash at the current tempo if you hold NR Config and if ORCA PAD16 is using its internal clock. -
Page 9: Full Sized Usb Connector
4.9 Full Sized USB connector Connect the ORCA PAD 16 to your computer with a USB cable via this port. The computer’s USB port provides power to your ORCA PAD16. This connection is also used to send and receive MIDI data to and from your computer. - Page 10 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Balance LSB 0-127 Controller 0-127 Panpot LSB 0-127 Expression LSB 0-127 44-63 Controller 0-127 Sustain 0-127 Portamento 0-127 Sostenuto 0-127 Soft Pedal...
- Page 11 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 OMNI On 0-127 Mono 0-127 Poly 0-127 Pitch Bend Sensitivity（RPN） 0-127 Channel Fine Tuning（RPN） 0-127 Channel Coarse Tuning（RPN） 0-127 Modulation Depth Range（RPN） 64 0-127 Vibrato Rate（NRPN）...
-
Page 12: Appendix B- Toxic Or Hazardous Substances And Elements
HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix B- Toxic or Hazardous Substances and Elements Toxic or Hazardous Substances and Elements Part Number, Name and Description Cr(VI)) (PBB) (PBDE) ○... -
Page 13: Appendix C-Note Value And The Corresponding Numerical Number
HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix C-Note Value and The Corresponding Numerical Number Note Note Note Note Note Note Note Note Bb 1 Eb 3 C#-1 Bb 4... -
Page 14: Appendix D- General Midi Instruments-Program Change Numbers
HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix D- General MIDI Instruments-Program Change Numbers Piano Bass Reed Synth Effects 0 Acoustic Grand Piano 32 Acoustic Bass 64 Soprano Sax... -
Page 15: Appendix E - General Midi Drums-Note Assignments
HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix E - General MIDI Drums-Note assignments MIDI Note Drum Sound MIDI Note Drum Sound MIDI Note Drum Sound Acoustic Bass Drum...
