HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD
HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD
WEBSITE: WWW.WORLDE.COM.CN
EMAIL:SALES@WORLDE.COM.CN
TEL:86 571 88730848

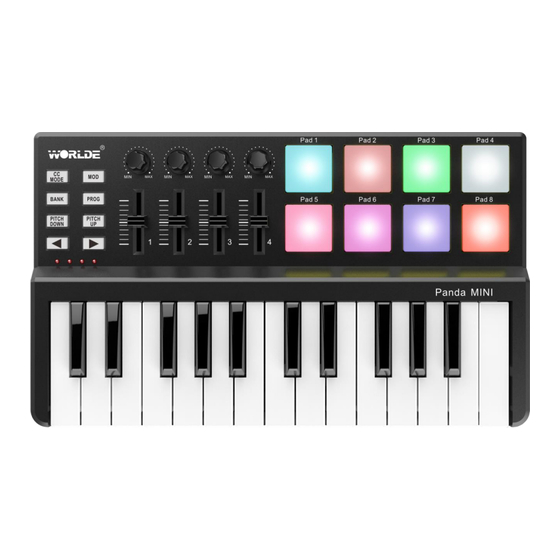

Worlde Panda MINIc
MIDI Controller User's Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panda MINIc and is the answer not in the manual?

Questions and answers

Summary of Contents for Worlde Panda MINIc

  • Page 1 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Worlde Panda MINIc MIDI Controller User’s Manual - 1 -...
  • Page 2: Table Of Contents

    Note: There’s no difference between the models Panda MINI and Panda MINIc except the RGB backlights for the 8 trigger pads as Panda MINI is only with red led back lights for the 8 pads, so here all the instructions are based on Panda MINIc.
  • Page 3: Introduction

    Your Panda MINIc midi controller will not make any sound unless it is connected to a computer or other external MIDI gear. This is because the Panda MINIc sends MIDI data when you play it and does not produce sound on its own. Instead, it is used to control a virtual instrument on your computer or a MIDI sound module to generate sounds.
  • Page 4: Getting Started

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 3. Getting Started 3.1 Panda MINIc Overview 3.1.1 Top Panel Overview 3.1.2 Side Panel Overview - 4 -...
  • Page 5: Setup

    3.2.2 Using The Panda MINIc With Your Software When installed, the Panda MINIc appears as a simple MIDI device with one input port and one output port. You should select the listed USB MIDI Controller input port as the MIDI input device in your software. Once this is set, your software should be able to receive notes and controller data from the Panda MINIc .
  • Page 6: Connecting With Mobile Devices

    4.1 Trigger pads Panda MINIc has four banks of 8 high quality velocity & pressure sensitive performance pads with RGB backlit, for 32 total, which can be assigned easily as MIDI notes or control change buttons. The pads can be used to trigger drum hits to our software or hardware module.
  • Page 7: Knobs/Sliders

    4. 5 Bank button The Panda MINIc has four banks. When bank button is on, you can use the [◄] button and the [►] button to switch the four banks. A“bank” is a set of parameter assignments for the controllers (pads and knobs, etc.). You can use Worlde Panda MINIc Editor to change the assignment of each controller.
  • Page 8: Cc Mode Button

    4.11 USB connector Connect the Panda MINIc to your computer with a USB cable via this port. The computer’s USB port provides power to your Panda MINIc . This connection is also used to send and receive MIDI data to and from your computer.
  • Page 9 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Breath LSB 0-127 Controller 0-127 Foot Controller LSB 0-127 Portamento time LSB 0-127 Data Entry LSB 0-127 Channel Volume LSB 0-127 Balance LSB...
  • Page 10 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 102-119 Controller 0-127 All Sound Off 0-127 Reset All Controllers 0-127 Local Control 0-127 All Notes Off 0-127 OMNI Off 0-127 OMNI On...
  • Page 11: Appendix B- Toxic Or Hazardous Substances And Elements

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix B- Toxic or Hazardous Substances and Elements Toxic or Hazardous Substances and Elements Part Number, Name and Description Cr(VI)) (PBB) (PBDE) ○...
  • Page 12: Appendix C-Note Value And The Corresponding Numerical Number

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix C-Note Value and The Corresponding Numerical Number Note Note Note Note Note Note Note Note Bb 1 Eb 3 C#-1 Bb 4...
  • Page 13: Appendix D- General Midi Instruments-Program Change Numbers

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix D- General MIDI Instruments-Program Change Numbers Piano Bass Reed Synth Effects 0 Acoustic Grand Piano 32 Acoustic Bass 64 Soprano Sax...
  • Page 14: Appendix E - General Midi Drums-Note Assignments

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix E - General MIDI Drums-Note assignments MIDI Note Drum Sound MIDI Note Drum Sound MIDI Note Drum Sound Acoustic Bass Drum...
