  • Page 1 Worlde Orca mini 25 MIDI Controller User’s Manual...

  • Page 2: Table Of Contents

    4.16 Sustain Pedal Jack ..................................6 4.17 3.5mm TRS MIDI Out port ................................6 5. Basic MIDI Control From Your Orca mini 25 ............................6 5.1 MIDI Control Messages ..................................6 5.2 Programming the Controls on Your Orca mini 25 ..........................7 5.3 Control assignment ....................................

  • Page 3: Introduction

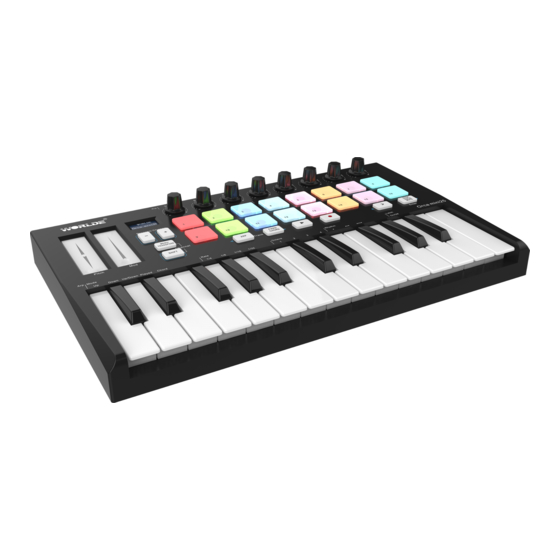

    Your Orca mini 25 midi controller will not make any sound unless it is connected to a computer or other external MIDI gear. This is because the Orca mini 25 sends MIDI data when you play it and does not produce sound on its own. Instead, it is used to control a virtual instrument on your computer or a MIDI sound module to generate sounds.

  • Page 4: Getting Started

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 3. Getting Started 3.1 WORLDE Orca mini 25 Keyboard Overview 3.1.1 Top Panel Overview 3.1.2 Rear Panel Overview Control Definitions： 1. Keyboard 10. Fixed Chord button ▶...

  • Page 5: Setup

    3.2 Setup If you intend to connect your Orca mini 25 keyboard to a computer, please read sections 3.2 to 3.4 first. If you only intend to use your Orca mini 25 keyboard to control a sound module or synthesizer using the external MIDI OUT you should skip to section 3.5.

  • Page 6: Using As A Standalone Midi Controller

    3.5mm TRS MIDI Out to MIDI IN adaptor is not included. If you want to use the 3.5mm TRS MIDI output on the Orca mini 25 without a computer, you can power the unit with a standard USB power supply (5V DC, minimum 500mA).

  • Page 7: Arp Button

    The 8 assignable knobs and 16 assignable pads on your Orca mini 25 keyboard is able to send any of the 128 standard MIDI controller messages to control such parameters. Please note that in order for these effects to work, the MIDI device you are sending to must be able to receive these messages.

  • Page 8: Programming The Controls On Your Orca Mini 25

    There are many different types of virtual instruments available and most of these respond to MIDI controller messages, allowing you to control a variety of parameters from your Orca mini 25 keyboard. Please review the manual that came with your software or external gear to see what these controller numbers are.

  • Page 9: Assignable Pads

    Every time you press a key, a MIDI note message is sent with a velocity value between 0 and the maximum; this value specifies how hard you pressed the key. Since different people have different playing styles, your Orca mini 25 offers 3 different velocity curves and 1 one constant velocity as shown below.
  • Page 10 5.6.3 Pad Pressure Control Using the pressure control, the pads give you a different type of performance option on your Orca mini 25. You can control parameters on your software in a way that would not be possible on a standard dial or slider. The pressure pads can be used to make some very interesting effects.
  • Page 11 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 5.6.5 Transpose Press the MENU button repeatedly until the OLED dispays “Transpose” to start the function of Transpose. This function allows the keyboard to change the Pitch up/down by semi-tone.

  • Page 12: Other Controls

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 (5) Press the MENU button repeatedly until the OLED dispays “Pad color G”. (6) Press “+” or “-” button until the OLED displays 0.

  • Page 13: Using The Orca Mini 25 With Your Daw

    With Ableton Live installed, get your Orca mini 25 connected to Mac or PC ‘s USB port with USB cable and it will be automatically detected and enter Session mode. If you press the Shift button on your Orca mini 25 the pads will be lighting as shown in the picture below. The first 3 pads are used to select pad behavior and the next 5 pads to the right are for selecting knob behaviour.
  • Page 14 6.1.1 Session Mode Hold the Shift button and press the Session pad(the top left pad) to enter session mode on your Orca mini 25. Session mode is used to control Ableton Live’s Session view. Session View is a grid that consists of clips, tracks and scenes.
  • Page 15 (red) extending from the left-most track to the Master track: Any changes you make to clip position or colour within Ableton Live will be represented in the Session mode of Orca mini 25. Unlit (dark) pads indicate empty clip slots.
  • Page 16 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 You can navigate around Session View by holding Shift and pressing the 4 buttons with arrows as their secondary functions: >, Stop Solo Mute, Arp, and Fixed Chord.
  • Page 17 Hold Shift and press the Drum pad (2nd from the top left) to enter this mode. If a Drum Rack (an Ableton MIDI instrument) is loaded onto the selected Live track, and the Orca mini 25 is in Drum mode, the pads light...
  • Page 18 In this mode, knobs control the first 8 parameters of the selected device. This is especially useful for controlling Live’s 8 ‘macro’ knobs, available on Instrument and Effect Racks. The above picture shows an Impulse preset called ‘Percussion 1’. Here, the Orca mini 25 knobs control sample volumes, sample start and ‘stretch’, as well as delay and reverb amounts.
  • Page 19 TEL:86 571 88730848 6.1.8 Using Ableton Live’s Mixer The Orca mini 25 8 knobs give you hands-on control of Live’s mixer. Hold Shift, then press either the Volume, Pan or Sends pads to control those respective parameters with the knobs.
  • Page 20 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 length. Arp Modes After turning on Arp you’ll be in 1 of 5 Arpeggiator Modes, each resulting in arpeggios of different note orders. To change the Arp Mode, press and hold the Arp button, and then press the key corresponding to your desired mode.
  • Page 21 Arp Pads The pads of the Orca mini 25 help to visually confirm the current Arp state. When the Arp button is held the pads will light up in different colours, indicating these Arp settings: red (Arp Modes), green (Arp Rates), blue (Arp Octaves), light blue (Arp Rhythms), and light pink/pink (Latch).

  • Page 22: Orca Mini 25 Working With Other Sequencer

    In order to use your Orca mini 25 with your sequencer, you need to set up the sequencer software so that your Orca mini 25 can be recognized as your DAW’s MIDI input device. You need to choose a MIDI output device that is capable of making sound when MIDI data is sent to it.
  • Page 23 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Sustain 0-127 Portamento 0-127 Sostenuto 0-127 Soft Pedal 0-127 Legato FootSwitch 0-127 Hold 2 0-127 Sound Controller 0-127 Resonance 0-127 Release Time...

  • Page 24: Appendix B- Toxic Or Hazardous Substances And Elements

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Modulation Depth Range（RPN） 64 0-127 Vibrato Rate（NRPN） 0-127 Vibrato Depth（NRPN） 0-127 Vibrato Delay（NRPN） 0-127 Filter Cutoff Frequency（NRPN） 64 0-127 Filter Resonance（NRPN） 0-127 EQ Low Gain（NRPN）...

  • Page 25: Appendix C-Note Value And The Corresponding Numerical Number

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 ○：Indicates that this toxic or hazardous substance contained in all the homogeneous materials for this part, according to EIP-A, EIP-B, EIP-C is below the limit requirement in SJ/T 11364.

  • Page 26: Appendix D- General Midi Instruments-Program Change Numbers

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Bb 2 Eb 4 Bb 5 Eb 7 Eb 0 Bb 8 Appendix D- General MIDI Instruments-Program Change Numbers Piano Bass Reed...

  • Page 27: Appendix E - General Midi Drums-Note Assignments

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 24 Nylon Acoustic 56 Trumpet 88 New Age Syn Pad 120 Guitar Fret Noise 25 Steel Acoustic 57 Trombone 89 Warm Syn Pad...
