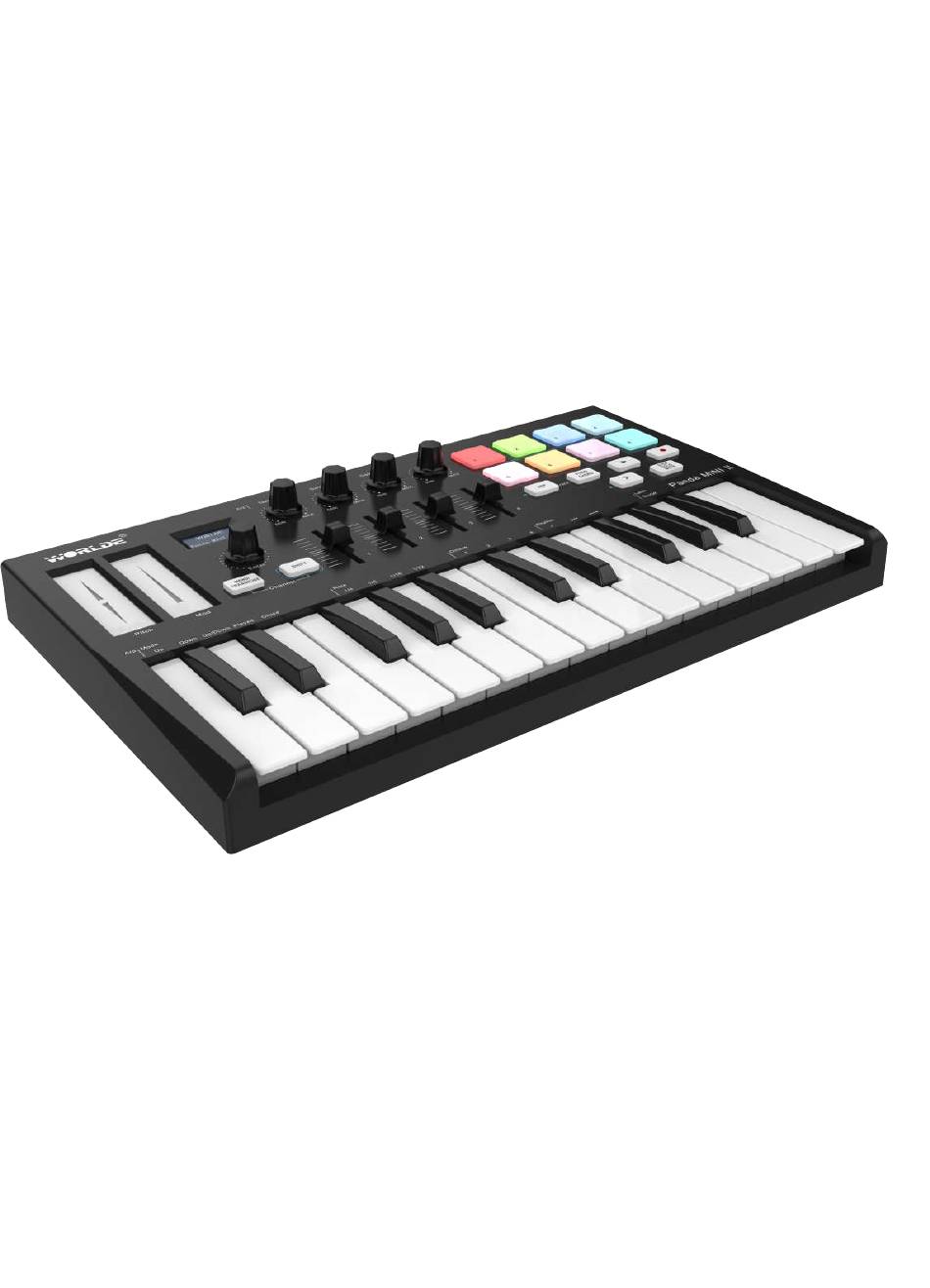

Worlde PANDAMINI II
MIDI Controller User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANDAMINI II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worlde PANDAMINI II

Summary of Contents for Worlde PANDAMINI II

  • Page 1 Worlde PANDAMINI II MIDI Controller User’s Manual...

  • Page 2: Table Of Contents

    4.17 Sustain Pedal Jack ..................................6 4.18 3.5mm TRS MIDI Out port ................................6 5. Basic MIDI Control From Your PANDAMINI II ........................... 6 5.1 MIDI Control Messages ..................................6 5.2 Programming the Controls on Your PANDAMINI II ........................7 5.3 Control assignment ...................................

  • Page 3: Introduction

    Your PANDAMINI II midi controller will not make any sound unless it is connected to a computer or other external MIDI gear. This is because the PANDAMINI II sends MIDI data when you play it and does not produce sound on its own. Instead, it is used to control a virtual instrument on your computer or a MIDI sound module to generate sounds.

  • Page 4: Getting Started

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 3. Getting Started 3.1 WORLDE PANDAMINI II Keyboard Overview 3.1.1 Top Panel Overview 3.1.2 Rear Panel Overview Control Definitions： 1. Keyboard 4. Value Dial(Enter button:Push to enter) 2.

  • Page 5: Setup

    3.2 Setup If you intend to connect your PANDAMINI II keyboard to a computer or mobile devices, please read sections 3.2 to 3.4 first. If you only intend to use your PANDAMINI II keyboard to control a sound module or synthesizer using the external MIDI OUT you should skip to section 3.5.

  • Page 6: Using As A Standalone Midi Controller

    3.5mm TRS MIDI Out to MIDI DIN adaptor is included. If you want to use the 3.5mm TRS MIDI output on the PANDAMINI II without a computer, you can power the unit with a standard USB power supply (5V DC, minimum 500mA).

  • Page 7: Menu Button

    4.18 3.5mm TRS MIDI Out port The 3.5mm TRS MIDI Out port can be used to connect the PANDAMINI II to a hardware sequencer, an external synthesizer or sound module. 3.5mm TRS MIDI Out to MIDI DIN adaptor is included.

  • Page 8: Programming The Controls On Your Pandamini Ii

    There are many different types of virtual instruments available and most of these respond to MIDI controller messages, allowing you to control a variety of parameters from your PANDAMINI II keyboard. Please review the manual that came with your software or external gear to see what these controller numbers are.

  • Page 9: Assignable Sliders

    Every time you press a key, a MIDI note message is sent with a velocity value between 0 and the maximum; this value specifies how hard you pressed the key. Since different people have different playing styles, your PANDAMINI II offers 3 different velocity curves and 1 one...
  • Page 10 The Pad Curve setting is used to set the response curve of all 8 pads. It is not possible to set the response curve of the pads independently. Your PANDAMINI II offers 3 different pad velocity curves and 1 one constant velocity as shown below. The 3 one is the constant velocity with the value 127.
  • Page 11 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 5.7.3 OCTAVE+/ OCTAVE- Press the MENU button repeatedly until the OLED dispays “Octave” to start the function of Octave. This function allows the keyboard to change the Pitch up/down by octave.
  • Page 12 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 5.7.6 MIDI channel Press the MENU button repeatedly until the OLED dispays “MIDI channel” to start the function of Channel selection. Channel selection is for adjusting the Current MIDI channel.

  • Page 13: Other Controls

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Reference RGB No. for some colors: COLOR WHITE BLACK GREEN BLUE CYAN MAGENTA YELLOW ORANGE 5.8 Other controls 5.8.1 Store all parameters Press the MENU button repeatedly until the OLED dispays “Store all parameters”...

  • Page 14: Using The Pandamini Ii With Your Daw

    With Ableton Live installed, get your PANDAMINI II connected to Mac or PC ‘s USB port with USB cable and it will be automatically detected and enter Session mode. If you press the Shift button on your PANDAMINI II the pads will be lighting as shown in the picture below. The first 2 pads of the top row are used to select pad behavior and the last pad is for selecting knob behaviour.
  • Page 15 6.1.1 Session Mode Hold the Shift button and press the Session pad(the top left pad) to enter session mode on your PANDAMINI II. Session mode is used to control Ableton Live’s Session view. Session View is a grid that consists of clips, tracks and scenes.
  • Page 16 (red) extending from the left-most track to the Master track: Any changes you make to clip position or colour within Ableton Live will be represented in the Session mode of PANDAMINI II. Unlit (dark) pads indicate empty clip slots.
  • Page 17 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Shift + Scene Launch (>) – This moves the grid of clips up one row. Shift + Stop, Solo, Mute – This moves the grid of clips down one row.
  • Page 18 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 playing. Solo (Yellow green) - In this state, pressing the pads will solo the corresponding tracks, meaning only tracks with Solo on will be heard.
  • Page 19 Hold Shift and press the Drum pad (2nd from the top left) to enter this mode. If a Drum Rack (an Ableton MIDI instrument) is loaded onto the selected Live track, and the PANDAMINI II is in Drum mode, the pads light up the colour of the track.
  • Page 20 6.1.8 Arp Pressing the Arp button on PANDAMINI II enables the Arpeggiator. After engaging Arp the PANDAMINI II takes your chords and creates an arpeggio – ie it plays each note of the chord one after another. The Arpeggiator will run as long as keys are held, at the rhythmic value specified by the Arp Rate.
  • Page 21 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Arp Rates These options specify the speed of the arpeggiated notes. Since each note is played immediately after the end of the previous one, a shorter rate (eg 1/32) will play an arpeggio faster than longer one (eg 1/4).

  • Page 22: Pandamini Ii Working With Other Sequencer

    In order to use your PANDAMINI II with your sequencer, you need to set up the sequencer software so that your PANDAMINI II can be recognized as your DAW’s MIDI input device. You need to choose a MIDI output device that is capable of making sound when MIDI data is sent to it.
  • Page 23 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 14-31 Controller 0-127 Bank Select LSB 0-127 Modulation LSB 0-127 Breath LSB 0-127 Controller 0-127 Foot Controller LSB 0-127 Portamento time LSB...
  • Page 24 HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 RPN LSB 0-127 RPN MSB 0-127 102-119 Controller 0-127 All Sound Off 0-127 Reset All Controllers 0-127 Local Control 0-127 All Notes Off...

  • Page 25: Appendix B- Toxic Or Hazardous Substances And Elements

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix B- Toxic or Hazardous Substances and Elements Toxic or Hazardous Substances and Elements Part Number, Name and Description Cr(VI)) (PBB) (PBDE) ○...

  • Page 26: Appendix D- General Midi Instruments-Program Change Numbers

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix D- General MIDI Instruments-Program Change Numbers Piano Bass Reed Synth Effects 0 Acoustic Grand Piano 32 Acoustic Bass 64 Soprano Sax...

  • Page 27: Appendix E - General Midi Drums-Note Assignments

    HANGZHOU BLUE WHALE MUSIC TECHNOLOGY CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Appendix E - General MIDI Drums-Note assignments MIDI Note Drum Sound MIDI Note Drum Sound MIDI Note Drum Sound Acoustic Bass Drum...
