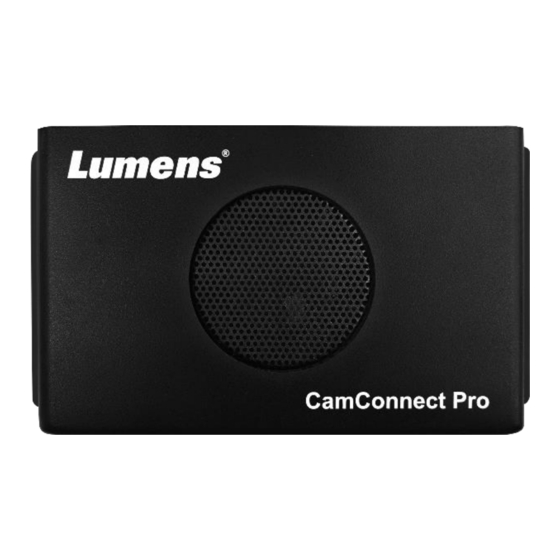

Lumens AI-BOX1 User Manual
Hide thumbs
Also See for AI-BOX1:
- User manual (31 pages) ,
- Quick installation manual (2 pages) ,
- User manual (19 pages)
Subscribe to Our Youtube Channel
Related Manuals for Lumens AI-BOX1
Summary of Contents for Lumens AI-BOX1
- Page 1 AI-BOX1 User Manual-English Version: 1.2.3 To download the latest versions of the Quick Start Guide, multilingual user manual, software, driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
4.5 About ......................13 Chapter 5 Connect to a conference video software ......14 5.1 Set the output mode of AI-BOX1 to UVC and click the start streaming option ......................14 5.2 Launch a video software like Skype, Zoom, Microsoft Teams, or other similar software ..................... -
Page 3: Chapter 1 System Connection And Application
System Connection and Application 1.1 System Connection 1.2 AI-BOX1 IO Interface... -
Page 4: Chapter 2 Support Devices
Chapter 2 Support Devices 2.1 Shure Shure MXA310 Table Array Microphone Shure MXA910 Ceiling Array Microphone Shure MXA920 Ceiling Array Microphone 2.2 Sennheiser Sennheiser TeamConnect Ceiling 2 (TCC2) Ceiling Microphone <Note> When using TCC2 with CamConnect, please set and configure the channels on the Sennheiser Control Cockpit software first. -
Page 5: Chapter 3 Operation Interface Description
Chapter 3 Operation Interface Description ➐ ➊ ➌ ➋ ➍ ➎ ➏ 3.1 Microphone Setting Item Function Descriptions Device Number Select the desired number of microphones to connect Device List Display the devices according to the Device Numbers Devices Select Microphone Device Device IP Enter the IP address of the microphone Display based on the connected devices... -
Page 6: Camera Control & Status
IP, and click [Add] to add it Refresh/ Add ※ Please ensure that the camera and AI-BOX1 are on the same network segment. Click [Connect]to establish a connection with the camera or /... - Page 7 3.2.1 PTZ Control ○ ○ ○ ○ ○ ○ ○ ○ Item Function Descriptions Preview window Display the screen currently captured by the camera L/R Direction L/R Direction / Normal Mirror / Flip Set image mirroring/ flip Adjust the Pan/Tilt position of the camera screen Pan/Tilt/Home Click [Home] button to return to its central position Click the number keys directly to call the preset...
-
Page 8: Microphone Orientation And Camera Preset Relationship Setting
3.3 Microphone orientation and camera preset relationship setting After the microphone device is connected, the camera can be controlled to turn to the corresponding preset position according to the microphone detection position. Item Function Descriptions This indicator shows the status of microphone signal reception. (A green Indicator light indicates successful reception) ... -
Page 9: Video Output Setting
Camera: Camera Video Output: Automatic image output Auto Save Set automatic save interval in seconds Reset/ Apply Reset/Apply your settings Network Ethernet Setting. When it is set to Static IP, the setting can be modified. Once the settings are completed, click Apply. 3.5 Video Output Setting Item Function Descriptions... -
Page 10: Start Video Output
<Note> Choose only either HDMI/UVC output. For setting the Output Mode, please refer to 3.5 Video Output Setting 3.7 Information Function Descriptions This window displays the software version information of AI-BOX1. Click on to confirm the latest version and updates For technical support, please scan the QRcode on the right. -
Page 11: Chapter 4 Web Page Function
Chapter 4 Web Page Function 4.1 Device Setting Item Function Descriptions Select the desired number of microphones to connect Devices: Select Microphone Device Device IP: Enter the IP address of the microphone Port: Display based on the connected devices ... -
Page 12: Network
Refresh: Perform a device search again Add: Manually enter the specified ip address and click on to add <Remark> Please ensure that the camera and AI-BOX1 are on the same network segment. Connect/Disconnect: Click [Connect]to establish a connection with the... -
Page 13: Video Output Setting
3.5.1 Video Output Layout Cross: 4-split screen Video Output Layout PBP: Picture by Picture screen Crop: Screen cropping function <Remark> Choose either Cross/PBP only 4.4 Maintenance Function Descriptions Users can Export/Import AI-BOX1 configuration parameters... -
Page 14: About
4.5 About Function Descriptions This window displays the software version information of AI-BOX1. Click on to confirm the latest version and updates For technical support, please scan the QRcode at the bottom right... -
Page 15: Chapter 5 Connect To A Conference Video Software
Chapter 5 Connect to a conference video software 5.1 Set the output mode of AI-BOX1 to UVC and click the start streaming option 5.2 Launch a video software like Skype, Zoom, Microsoft Teams, or other similar software 5.3 Choose the video source, to output camera images... -
Page 16: Chapter 6 Troubleshooting
Chapter 6 Troubleshooting This chapter describes problems you may encounter while using AI-BOX1. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center. -
Page 17: Copyright Information
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
