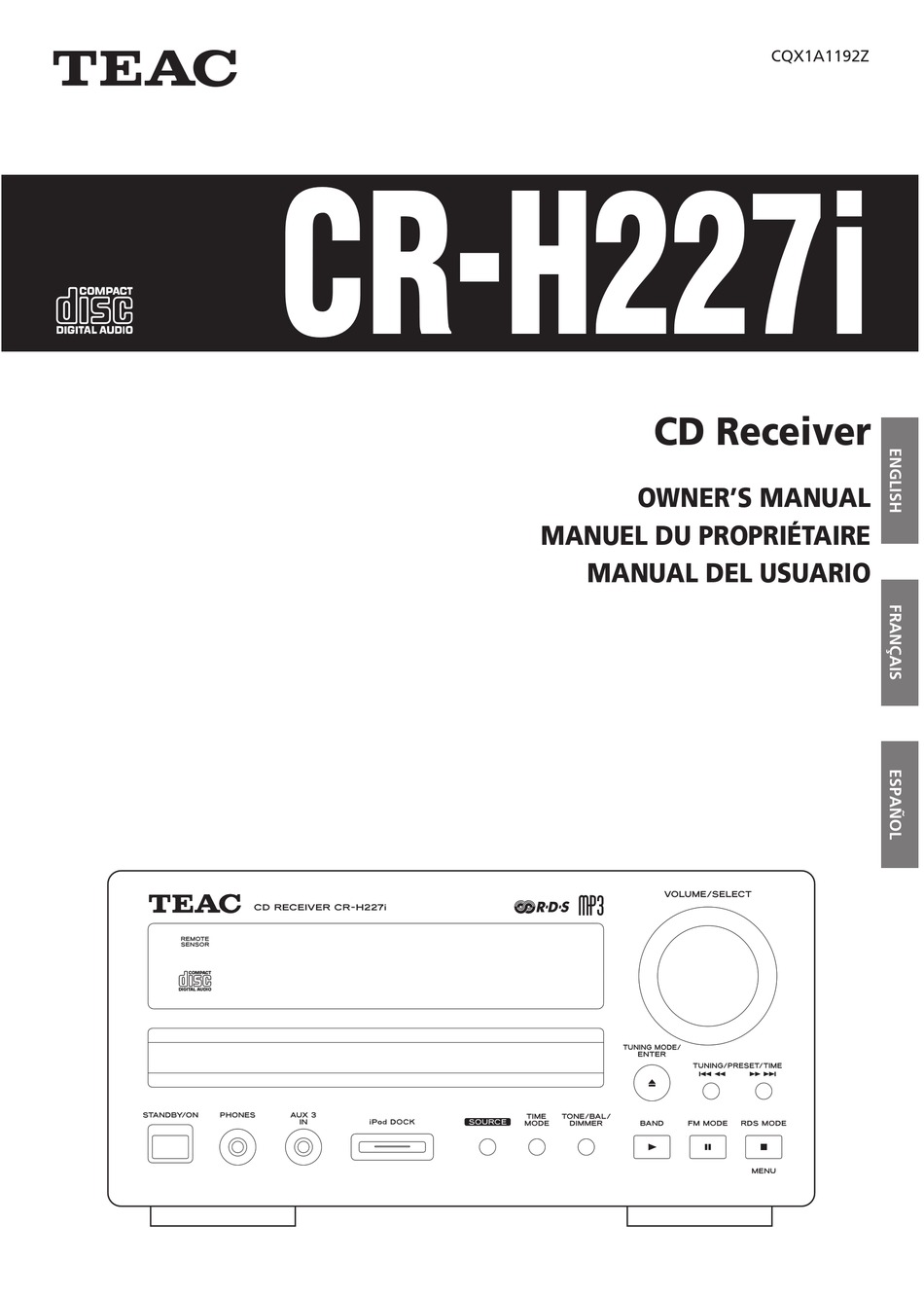

- Page 1 CQX1A1192Z CR - H227i CD Receiver OWNER’S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL USUARIO...
-
Page 2: Important Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN! < IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED. < USE OF CONTROLS OR ADJUSTMENTS OR...
-
Page 4: Table Of Contents
Contents Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit. Important Safety Instructions....2 Before Use . -
Page 5: Restoring Factory Settings
Maintenance If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit. -
Page 6: Discs
CD standard may not play back correctly in this player. If you use such discs in this unit, TEAC Corporation and its subsidiaries cannot be responsible for any consequences or guarantee the quality of reproduction. If you experience problems with such non-standard discs, you should contact the producers of the disc. -
Page 7: Audio Files
< CD-R and CD-RW discs are more sensitive to the effects of heat and ultraviolet rays than ordinary CDs. It is important that they are not stored in a location where direct sunlight will fall on them, and which is away from sources of heat such as radiators or heat-generating electrical devices. -
Page 8: Connection 1
CAUTION: < Switch off the power to all equipment before making connection. < Read the instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal interconnection cables together with the AC power cord or speaker cables. -
Page 9: Speaker Terminals
Speaker Terminals < Use commercially available speaker cables. < The black speaker terminals are – (negative). Generally, the + side of the speaker cable is marked to make it distinguishable from the – side of the cable. Connect this marked side to the + terminal and the unmarked side to the black –... - Page 10 Connection 2 TV or Monitor VIDEO S-VIDEO Dock...
- Page 11 < When using the PHONES jack of your mini player, you must adjust the volume of the mini-player or you may hear no sound from your CR-H227i. Headphones label side For private listening, insert the headphones plug into this jack, and adjust the volume by turning the VOLUME knob.
-
Page 12: Connecting Antennas
AM Indoor Loop Antenna The high-performance AM loop antenna provided with this unit is sufficient for good reception in most areas. To stand the loop antenna on a surface, fix the claw to the slot in the antenna base. Connect the loop antenna’s wires to the AM antenna terminals. -
Page 13: Fm Indoor Antenna
FM Indoor Antenna Connect the lead-type FM antenna to the FM 75Ω socket, extend the lead and tune the tuner to your favorite station (see page 33). Adjust the antenna in a suitable location like a window frame or wall until the reception is best and then affix the antenna in that position using thumb tacks, push pins or any other suitable means. -
Page 14: Identifying The Parts 1
Identifying the Parts 1... - Page 15 STANDBY/ON Press this button to turn the unit on or standby. The standby indicator surrounding the STANBY/ON button lights when the unit is in the standby mode. When the unit is turned on, it goes off. Remote Sensor When operating the remote control unit, point it towards the remote sensor.
- Page 16 Associated controls on the remote control will also operate similarly. < Following buttons don’t work on the CR-H227i. FUNCTION, AUTO TUNE, ENTER, INFO Identifying the Parts 2 STANDBY/ON ( Press this button to turn the unit on or standby.
- Page 17 To use the numeric buttons in CD mode or in TUNER mode, you have to press the CD button or the TUNER button beforehand to switch the function of the remote control unit from TUNER to CD (or from CD to TUNER). If the remote control unit doesn’t work, press the CD button or the TUNER button and try again.
-
Page 18: Remote Control Unit
The provided Remote Control Unit allows the unit to be operated from a distance. When operating the remote control unit, point it towards the REMOTE SENSOR on the front panel of the unit. < Even if the remote control unit is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control. -
Page 19: Basic Operation 1
Press the STANDBY/ON button to turn the unit Select a source by pressing the SOURCE button. Each time the SOURCE button is pressed, the source changes as follows: TUNER iPod AUX3 AUX2 < To listen to an external source connected to the AUX IN jack, select AUX (1, 2 or 3). -
Page 20: Sleep Timer
Headphones For private listening, first reduce the volume level to minimum. Then insert the plug from your headphones into the PHONES jack, and adjust the volume using the VOLUME buttons. The sound from the speakers is cut off while the headphone jack is inserted. - Page 21 How to adjust bass, treble, balance of speakers and dimmer Repeatedly press the TONE/BAL/DIMMER button to select the menu item to be changed. BASS TREBLE BALANCE (normal display) Within 3 seconds, turn the VOLUME/SELECT knob to change the setting. Leave the unit idle for 3 seconds to exit the setup mode.
-
Page 22: Getting Started With Ipod
Dock to prevent dust from settling on the Dock. Compatible iPod Software In case your iPod will not work with the CR-H227i or with the remote control unit, software update may solve the problem. Visit the Apple website and download the latest iPod Software. -
Page 23: Listening To Ipod 1
If no iPod is docked, “Unplugged” appears on the display. If an iPod is already docked, playback will start. Insert the iPod into the Dock of the CR-H227i. “The iPod is connected” briefly appears on the display. The iPod automatically turns on and starts playback from the iPod’s music list. - Page 24 3 seconds to select which display to be used. Extended mode (default) Select this to use the display of the CR-H227i. Information on the audio files is displayed on the display of the CR-H227i. The screen of the iPod shows TEAC logo.
- Page 25 To go back to the previous menu Press the MENU button to go back to the previous menu. This button is equivalent to the MENU button on your iPod. Select the menu item Press the scroll button (° or ‡) of the remote control unit (or the SKIP button of the main unit) to scroll to the menu item you want, and then press the ENTER button.
-
Page 26: Listening To Cd/Mp3/Wma 1
Listening to CD/MP3/WMA 1 Press the CD button of the remote control unit (or repeatedly press the SOURCE button) to select “CD”. “No Disc” will be displayed if no disc is set. Press the OPEN/CLOSE button (L). Place a disc on a tray with the printed surface Press the OPEN/CLOSE button (L) to close the tray. -
Page 27: To Stop Playback
IMPORTANT Buttons for CD and iPod To use the following buttons on the remote control unit in CD mode or in iPod mode, you have to press the CD button or the iPod button beforehand to switch the function of the remote control unit from iPod to CD (or from CD to iPod): PLAY, PAUSE, SHUFFLE, SKIP, SEARCH, REPEAT 1/ALL... -
Page 28: Direct Playback
Listening to CD/MP3/WMA 2 Search for a part of a track During playback, hold down the SEARCH button ( m or , ) of the remote control unit (or the SKIP button of the main unit) for more than 2 seconds and release it when the part you want to listen to is found. -
Page 29: Repeat Playback
Repeat Playback (CD/MP3/WMA) Repeat Playback Each time the REPEAT 1/ALL button is pressed, the mode is changed as follows: When a CD is loaded: Repeat 1 Repeat All Play (off) When an MP3/WMA disc is loaded. Repeat 1 RPT Folder Play (off) <... -
Page 30: Programmed Playback
Programmed Playback (CD/MP3/WMA) Up to 32 tracks can be programmed in the desired order. Press the PROGRAM button in the stop mode. Select a track using the numeric buttons. < If the numeric buttons don’t work, first press the CD button, and then press the number. <... - Page 31 To check the programmed order In the stop mode, press the PROGRAM button repeatedly. The track number and program number will be shown on the display. To add a track to the program In the stop mode, press the PROGRAM button repeatedly until the program number you want to insert a track appears on the display.
-
Page 32: Shuffle Playback
Shuffle Playback (CD/MP3/WMA) Press the SHUFFLE button in the stop or play mode. “Random play” appears on the display, and the tracks will be played randomly. < If you press the / button during shuffle playback, next track will be randomly selected and played. -
Page 33: Listening To The Radio
Press the TUNER button of the remote control unit (or repeatedly press the SOURCE button) to select “TUNER”. < You can also use the BAND button or the remote control unit to select “TUNER”. Select AM or FM by pressing the BAND button. Press the TUNING MODE button to select the tuning mode. -
Page 34: Preset Tuning
You can store up to 30 FM and 30 AM stations. Preset Automatically Select AM or FM by pressing the BAND button. Press the MEMORY button for more than 3 seconds. Up to 30 of the best received stations in your area will be stored automatically. -
Page 35: How To Select Preset Stations
< You can also use the numeric buttons. For instance, to select preset number 25, first press the TUNER button, and then press “2” and “5”. To select numbers less than 10, press “0” and then the number. As an example, to select number 2, press “0”... -
Page 36: Rds
The Radio Data System (RDS) is a broadcasting service which allows stations to send additional information along with the regular radio programme signal. RDS works on the FM waveband in Europe only. Tune in an FM RDS station (see page 33). Press the RDS MODE button (or the INFO/RDS button of the remote control unit). -
Page 37: Rds (Pty Search)
A station can be searched by this function. Select FM by pressing the BAND button. Press the RDS MODE button for more than 3 seconds. “RDS PROGRAM TYPE” appears on the display. Select the desired programme type using the TUNING button. You can select from 31 kinds. -
Page 38: Rds (Pty)
News: brief announcements, events, public opinion, reports, actual situations. Current Affairs: a kind of suggestion including practical announcements other than news, documents, discussion, analysis and so on. Information: daily information or reference such as weather forecast, consumer guide, medical assistance and so Sport: sports related programs. -
Page 39: Setting The Clock
Press the TIME MODE button once. Each time the TIME MODE button is pressed, the mode is changed as follows: Current time On time Off time Source select < When no action is taken for 1 minute, the time adjust mode will be cancelled. <... -
Page 40: Setting The Timer
Setting the Timer < The unit can be programmed to turn on and off at a specified time. < Adjust the clock before setting the timer. < When no action is taken for 1 minute, the timer setting mode will be cancelled. Press the TIME MODE button twice. - Page 41 To turn on the timer After setting the timer, press the TIMER button to turn the timer on. The timer indicator “ ” lights on the display. Prepare the source and adjust the volume. When the source is set to “iPod”, insert an iPod. When the source is set to “CD”, set a disc.
-
Page 42: Troubleshooting
Cannot insert the iPod. e Check the dock adapter. e Remove dust or obstacles from the Dock connector of the CR-H227i and the iPod, and insert the iPod again. Will not play. e Remove the iPod from the dock, wait a few seconds, and insert it again. -
Page 43: Specifications
AMPLIFIER Section Output Power ..25 W/ch (6 ohms, 0.5 %,1 kHz) Input Sensitivity ... . . 400 mV/47 kohms Frequency Response 20 Hz to 60,000 Hz (+1/–3 dB) TUNER Section FM Section Tuning Range .
