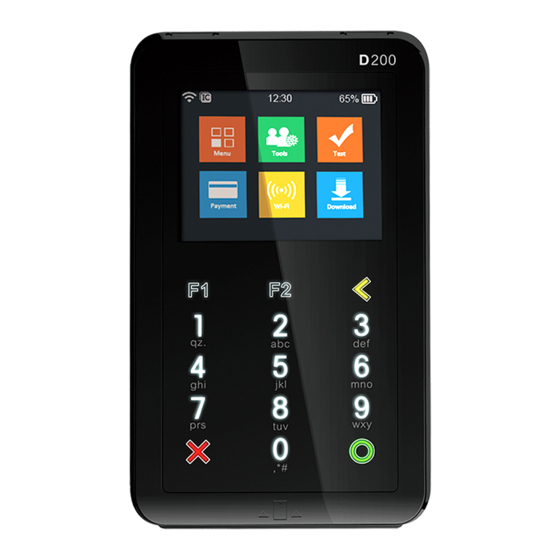

D200 Mobile Payment Terminal
1. Installation
SAM/SIM Card：
a)
Remove the battery cover (At the bottom of the terminal).
b)
Remove the battery.
c)
Insert the SAM/SIM card to the corresponding card slot.
Battery:
Alignment battery tip side to battery tip in terminal and insert.
2. Instructions
1)
Power ON/OFF
Power on: Plug in power adapter or insert the battery, Press
until 'Di' is heard, and then PAX LOGO will display on LCD.
Power off: Press
terminal is being turned off.
2)
IC Card
Put IC card chip side upward, push-in IC card slot and to bottom.
3)
Contactless Card
The card read area is above the LCD, Put the card above the LCD.
4)
Battery Charge display
Connecting USB port with external adapter can charger battery. And there are charging
display.
5) Battery Charge style
Please use the original adapter instead of pc usb port if you need to charge.
3. Installation and Usage Tips
1）Avoid putting the terminal in direct sunlight, high temperature, moist, or dusty environment.
2）Forbid non-professional to repair the terminal.
3）Before insert the card, please check internal and around of IC card slot. When you found some
suspicious objects, must report to related administrator.
button for 3 seconds until Shutting down... can be seen. POS
button for 3 seconds
