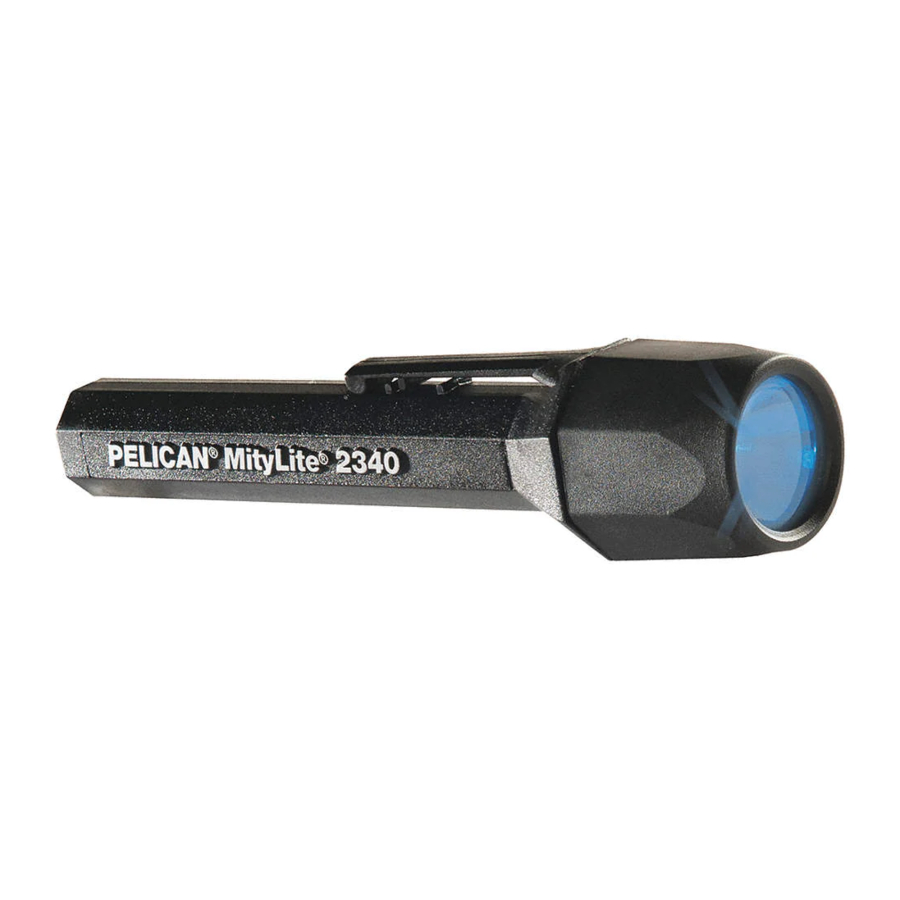

Pelican MityLite 2340 - Flashlight Manual

BATTERY INSTALLATION

DO NOT MIX BATTERY BRANDS OR USE NICAD OR ZINC CARBON BATTERIES OR OLD/NEW BATTERIES

1. Remove lens cover by turning counter-clockwise.
2. Remove the lamp module.
3. Remove used batteries and replace with fresh batteries + ends up.
4. Replace the lamp module.
5. Replace lens housing squarely on threads and turn clockwise while pressing on the lens cover slightly.

ON/OFF

1. For MOMENTARY operation, gently press down on the rubber switch cover at the rear of the flashlight and the MityLite™ 2340 will operate until pressure is released.
2. For CONTINUAL operation, press firmly down on the rubber switch cover until a "click" is heard and release - the MityLite™ 2340 will operate.
   To turn off, press down on the switch cover again until a "click" is heard and release.

HYDROGEN GAS ABSORBER

Internal catalyst pellets, located on the lamp, are there to help absorb hydrogen gas that could possibly be emitted by defective, leaking, reversed polarity or heavily discharged batteries. If the pellets become lost or damaged, replace lamp immediately. If pellets become wet, let them air dry or replace. Pelican Products assumes no liability for any brand batteries which are defective or cause injury to anyone when used in any Pelican flashlight.

If light is not to be used for some time, remove batteries to prevent possible leakage and corrosion.

Explosion Hazard - Batteries must only be changed in non-hazardous locations

Explosion Hazard - Substitution of components may impair suitability for use in hazardous locations

STATIC HAZARD - clean only with a damp cloth

LAMP REPLACEMENT

To replace the lamp module follow steps in the battery installation section as listed below:
To remove lamp module follow steps #1 and #2.
To replace lamp module follow steps #4 and #5.

O-RING MAINTENANCE

Check closely for cuts, scratches, or otherwise damaged O-ring or mating lens lip surface. Remove any dirt or foreign matter from O-ring sealing surfaces. Keep threads, O-ring groove and inside lip of lens lubricated with silicone grease.

PRODUCT SPECIFICATIONS

Lamp Type: Xenon
Lamp Life: 20 hours
Battery Type: E91 1.5V Alkaline AA-cell (2)
Battery Brand: Eveready^® Energizer^®

REPLACEMENT PARTS
CAT. # 2304
DESCRIPTION Xenon Lamp

23215 Early Ave.
Torrance, CA 90505 USA
Tel (310) 326-4700 • FAX (310) 326-3311
www.pelican.com
PELICAN^TM CANADA
10221-184 St. • Edmonton, Alberta T5S 2J4
Tel (780) 481-6076 • FAX (780) 481-9586
PELI^TM PRODUCTS, S.L.U.
c/ Casp, 33-B Pral. • 08010 • Barcelona, Spain
Tel (+34) 93.467.4999 • FAX (+34) 93.487.7393
www.peli.com

All trademarks and logos displayed herein are registered and unregistered trademarks of Pelican Products, Inc. and others.
Energizer is a registered trademark of Eveready Battery Company, Inc.
