Introduction

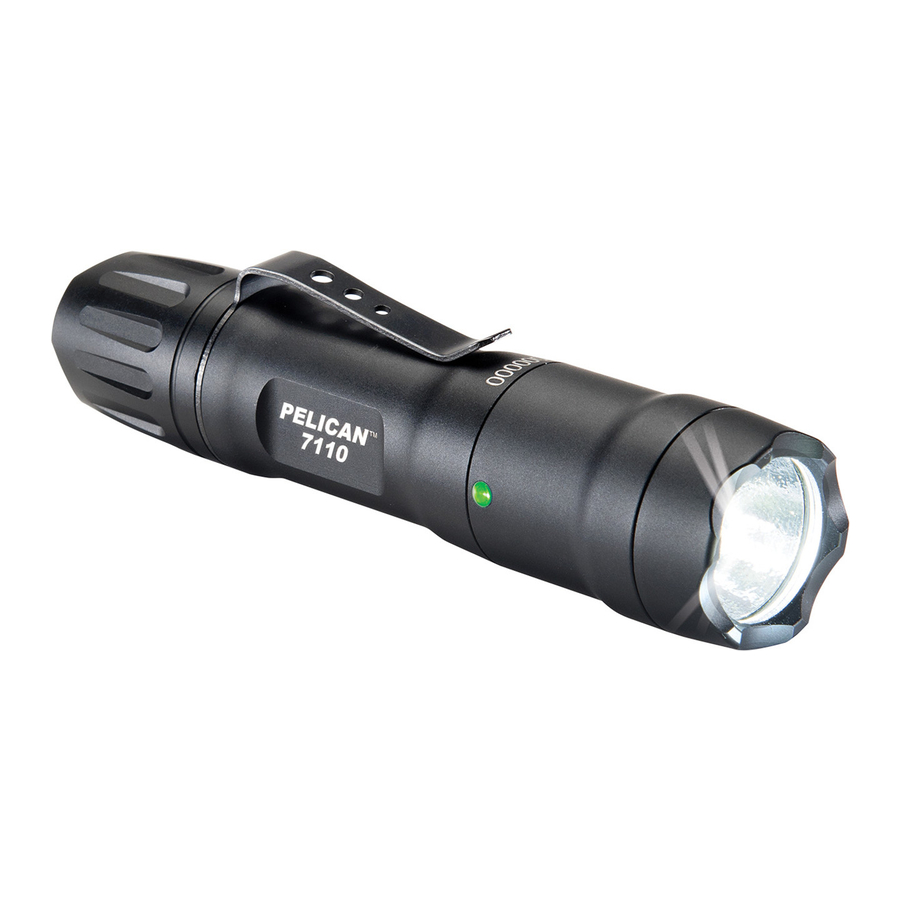

This compact flashlight produces an ultra bright pre-focused light beam by using a high-efficiency LED powered by either (1) AA alkaline, (1) CR123 lithium or (1) AA NiMH rechargeable battery. The 7110 flashlight is designed for easy use with one hand operation and has a dual-switch mode for constant-on or momentary-on activation. The 7110 body is made by high precision CNC machines from aerospace-grade aluminum alloy and is hard anodized for the most durable construction. The lens is constructed with anti-reflective (AR) glass for added durability and increased light output. The 7110 carries an ingress protection level of IPX8, which allows for use in the most inclement weather conditions.

TO INSERT BATTERIES

Remove the tail cap by turning counter-clockwise.
Install battery with + terminal facing to the head assembly.
Replace the tail cap onto the flashlight by turning clockwise until sealed.

OPERATION

To select a program, partially depress the button (momentary press, do not click) as indicated in the table below and hold until the 7110 flashes in acknowledgment.
The light will flash to let you know that a new program has successfully been selected. The number of flashes indicates the program number.

		Momentary presses	Confirmation flashes
Program 1 (default)	High > Strobe > Medium > Low	8	*
Program 2	High Only	10	**
Program 3	High > Medium > Low	12	***
Program 4	Low > Medium > High	14	****
Program 5	High > Low	16	*****

To change the mode within a program, depress the button (momentary, do not click) once for each step in the program. Presses need to be within.5 second.
Fully depress the switch to lock on the desired mode. To turn off, fully depress the switch once more.

The 7110 has a full-time battery status indicator built in.
The small LED between the collar and the head indicates the battery status when the light is turned on:

Green = Full
Amber = Mid
Red = Low

Note: The battery status indicator is calibrated for one AA alkaline or one CR123 Lithium battery. It will not show accurate battery status with any other usable battery types.

TO CHANGE BATTERIES

Remove the tail cap by turning counter-clockwise until it comes off the rear of the 7110 flashlight.
Remove the used battery from the 7110 flashlight.
Install the new battery with + terminal facing to the head assembly.
Replace the tail cap by turning clockwise until sealed.

GENERAL CARE AND MAINTENANCE

Clean o-rings with a soft clean cloth to insure that sealing area is free of dirt that could destroy the o-ring seal.
Apply a light coat of clear silicone grease on the o-rings occasionally if turning action becomes too difficult.
Remove the tail cap and wipe the rear threads of the 7110 flashlight body and inside of the tail cap with a soft clean cloth occasionally to avoid intermittent flashlight operation.

To prevent the 7110 flashlight coming on accidentally when the flashlight is stored, remove the battery. If the 7110 flashlight is turned on while it is in a container, the flashlight can overheat and damage the flashlight or the material of the surrounding area.

SPECIFICATIONS

BULB: LED
BATTERY: (1) one AA alkaline, NiMH or CR123 battery

O-RING MAINTENANCE

Check closely for cuts, scratches, or otherwise damaged o-ring or mating lens lip surface. Remove any dirt or foreign matter from o-ring sealing surfaces. Keep threads, o-ring groove and inside lip of lens lubricated with silicone grease. See Warranty information for replacement of o-ring.

Battery Safety Bulletin Alkaline Batteries

Hazardous location safety approvals for explosive environments are only valid for the specified cell type manufacturer and, where applicable, brand names that are displayed on the flashlight and/or instructions sheets that are supplied with the light.
The use of other battery technologies may reduce the performance of the the flashlight. Always read the battery manufacturers recommendations for the appropriate use of the battery technology/brand prior to using them in the flashlight.
When replacing the batteries:
1. Replace all the batteries at the same time.
2. Do not mix battery brands and old and new batteries.
3. Always insert batteries correctly with regard to polarity (+ and -) marked on the battery and equipment.
Do not change batteries in a hazardous location.
Remove batteries from equipment if it is not to be used for an extended period of time.
