Pelican 2490 - LED Flashlight Manual

BATTERY INSTALLATION

1. Remove lens housing by turning counter-clockwise.
2. Remove the lamp and contact module.
3. Remove used batteries and replace with fresh batteries as shown on the outside of the engraved body.
4. Replace the contact module and lamp.
5. Replace lens housing squarely on threads and turn clockwise while pressing on the lens housing slightly.

ON/OFF

Swing the switch lever to the right (light facing away from you) until light activates. To turn light off, swing the switch lever to the left (light facing away from you) until light goes off.

If light is not to be used for some time, remove batteries to prevent possible leakage and corrosion.

PRODUCT SPECIFICATIONS

Lamp Type: Recoil^TM LED

Battery Type: 1.5V Alkaline AA-cell (4)

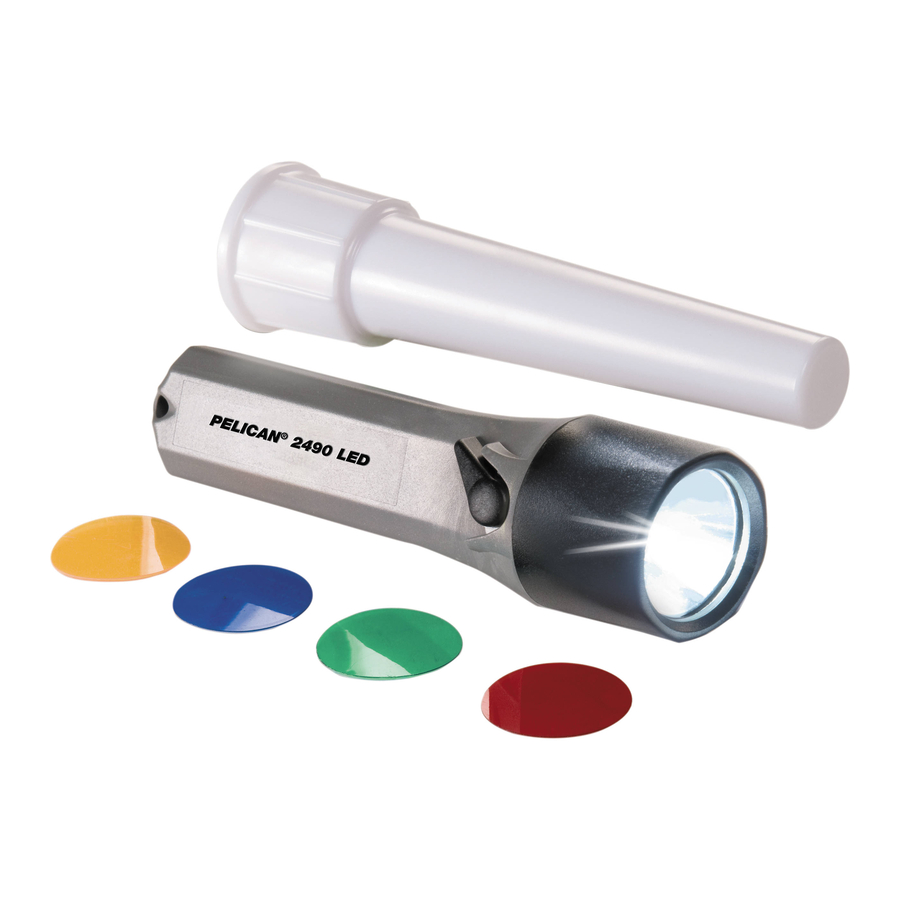

To use Traffic Wand:

1. Remove lens housing by turning counter clockwise.
2. Place colored disc (if desired) into wand, taking care to keep the disc flat and not bend or crease it.
3. Place wand onto light body and turn clockwise to tighten.

REPLACEMENT PARTS
