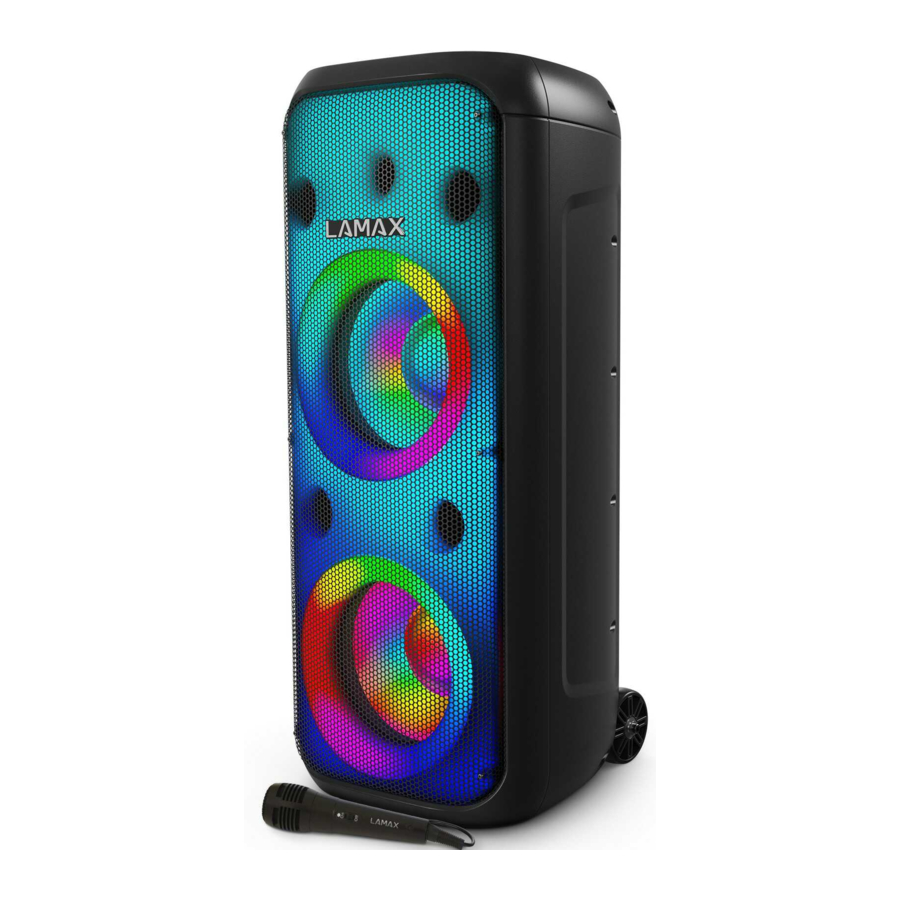

LAMAX PARTYBOOMBOX700 - Bluetooth Speaker User Guide

Controls

1. Volume level
2. Treble level
3. Bass level
4. Microphone treble level
5. Microphone echo effect level control
6. Microphone bass level
7. Microphone echo control
8. Microphone input 1
9. Microphone input 2
10. Microphone switch
11. Power
12. 12V input
13. Power cable input
14. AUX input
15. AUX output

Charging and LED Indicators

Fully charge the speaker battery before using it for the first time.

Indicators:

• LED glows red – the speaker battery is charging
• LED glows green – the speaker battery is fully charged

Note: A low battery may result in a gradual decrease in performance and possible audio or lighting outages. In this case, immediately plug the speaker into the mains or turn it off.

Power

Switch the speaker on/off by pressing the POWER button. The display will light up.

Bluetooth pairing

1. Switch on the speaker and make sure Bluetooth mode is selected on the display. If it is not, select it by repeatedly pressing the MODE button on the rear panel near the display. The speaker is then ready for pairing.
2. Activate Bluetooth connectivity on your smartphone or another device. Select „LAMAX PartyBoomBox700" from the list of available devices. The speaker beeps when pairing is successful.
3. Playback can be controlled either with a paired device, directly on the speaker or by remote control.

Note: Bluetooth connection works best within 10 metres and in an open area.

TWS

To pair two speakers with each other, turn on both speakers and make sure they are not paired with a multimedia device. Use the MODE button to put both devices into Bluetooth mode, „no B" will appear on the LCD screens. Hold down the PLAY/PAUSE button for 5 seconds on one of them and it will become the main speaker. A beep will sound and the main speaker will act as the right channel. The other speaker will audibly announce the left channel.

To unpair the speakers, press the REPEAT button on the main speaker or turn it off.

Player Controls

Using an external AUX source

1. Use the MODE button on the rear panel of the device to select AUX mode.
2. Connect your audio device to the external AUX IN jacks on the rear panel, and then control playback on the external audio device or the speaker itself.

Using the microphone

1. Connect the supplied microphone to the MIC IN input on the rear panel of the unit and turn it on with the switch on the microphone.
2. Turn the MIC VOL dial on the rear panel of the unit to increase or decrease the microphone volume.
3. Turn the MIC TREBLE dial on the rear panel of the unit to increase or decrease the microphone treble level.
4. Turn the MIC BASS dial on the rear panel of the unit to increase or decrease the bass level of the microphone.
5. Turn the ECHO dial on the rear panel of the device to increase the echo effect on the microphone.
6. Press the MICROPHONE SWITCH button to automatically mute the track being played when speaking into the microphone.

Note: If you place the microphone next to the speaker, turn off the microphone. Otherwise, the speaker may make an unpleasant and loud sound.

Location

The speaker has been designed to be placed on the ground, on any solid and stable base.

Note: If you will not be using the speaker for a long time, make sure it is turned off and unplug it from the mains.

Remote control

1. Standby ON/OFF
2. Select input
3. Sound modes
4. Increase volume
5. Play/Pause
6. Music playback: Next track, Next FM channel (press) / Auto-tune to a higher frequency (hold)
7. Repeat mode
8. Select track from USB/SD card or select radio frequency/FM channel
9. Scan FM channels
10. Decrease volume
11. Music playback: Previous track, Previous FM channel (press) / Auto-tune to a lower frequency (hold)
12. Mute

Parameters
