LAMAX MusiCan1 Manual

Table of Contents

Contents

1 Overview
2 Button Functions
3 Switching the Speaker On/Off
4 Connecting a Device to the Speaker
5 Bluetooth and Handsfree Mode
6 Audio Mode
7 FM Radio Mode
8 Charging
9 Quick Functions
10 LED indicators
11 LAMAX MusiCan1 Speaker Main Features
12 Technical Specifications
13 Troubleshooting
14 Documents / Resources
- 14.1 Download manual

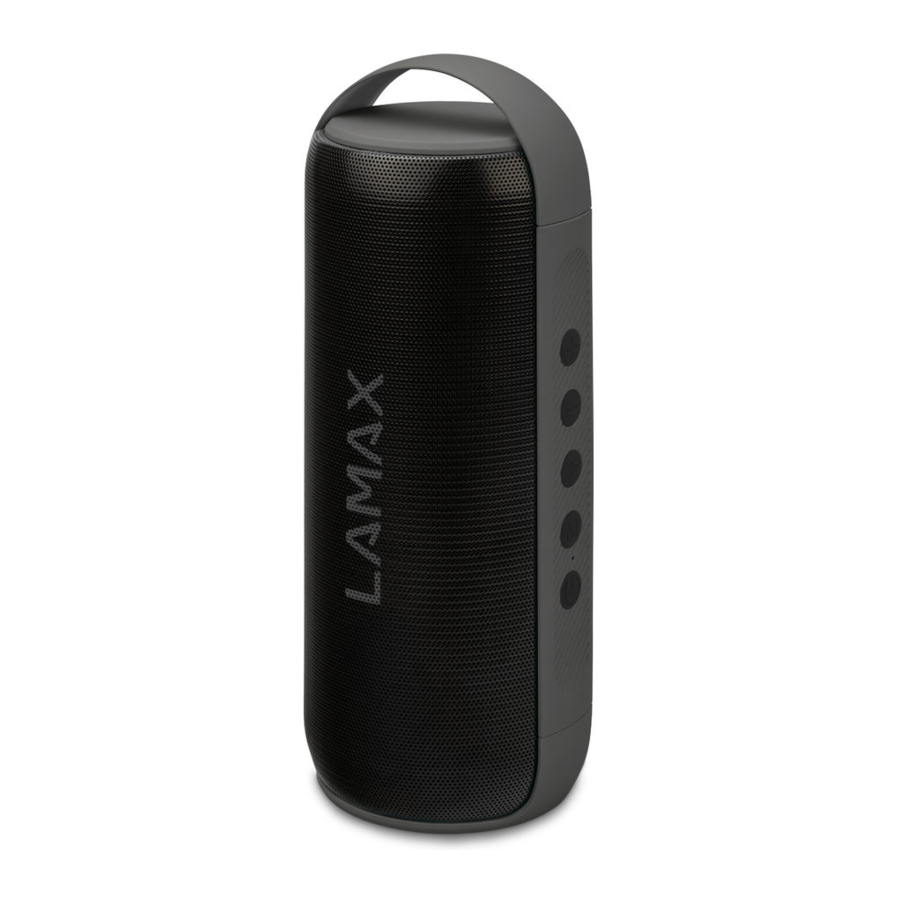

Overview

Button Functions

1		Next / Volume +
2		Previous / Volume -
3		Play / Pause / Handsfree calls
4		Mode button
5		On / Off
6		MIC

Switching the Speaker On/Off

Turn the speaker on by switching the power button to the position . You will hear an audible signal and the speaker is now ready to connect to a device.

Connecting a Device to the Speaker

The MusiCan1 speaker is a multifunctional device that plays music via USB, microSD, Bluetooth, the 3.5 mm jack or FM radio.

Bluetooth and Handsfree Mode

Connect your mobile phone via Bluetooth. In the list of active devices, the MusiCan1 is listed as "LAMAX MusiCan1". Switch between tracks . Can be controlled either using your mobile phone or directly on the speaker itself. The handsfree function is activated in this mode. Press to accept a call and hold down the button to reject the call.

Audio Mode

In this mode, the speaker plays audio from devices connected via USB, the microSD card or the 3.5 mm jack.
After connecting the device, the speaker automatically switches to that mode and plays music files in MP3 and WMA formats. Press to switch between individual modes.

FM Radio Mode

After switching to FM Radio mode, connect the Micro USB cable (as an antenna) and hold the button . The speaker scans all frequencies and stores the stations in its memory. Press or to switch between radio stations.

Charging

The speaker can be charged using the included USB Micro USB cable from a computer USB port or a regular charger with a 5V USB output. Caution: a USB charger with a higher output may damage the speaker!

Quick Functions

Long press the button for 4 seconds to lock the control buttons and unlock again for a long time.
Press and hold to disconnect.
Double tap to redial the last number called.

LED indicators

If the blue light is on, the unit is in operation.
The red light is on whilst charging.
At full charge, the diode turns green.

LAMAX MusiCan1 Speaker Main Features

Wireless Bluetooth 12W speaker
Built-in rechargeable lithium-ion battery with a capacity of 1200 mAh
Play up to 8 hours on a single charge
IPX4 waterproof casing – Protected against powerful jets of water
Supported functions: Bluetooth / MicroSD - max 32 GB / Aux / USB / FM radio
Powerbank function

Technical Specifications

Play time	Up to 12 h
Charging time	2 - 3 hours (5V, 2.1A)
Working distance	10 m
Function	Audio input 3.5 mm jack, microSD, Bluetooth 4.2, USB, FM radio, handsfree
Dimensions	70 x 68 x 197 mm
Weight	390 g
Battery capacity	1200 mAh
Operating and storage temperature	0°C - 45°C
Speaker parameters	Φ 50 mm, 2 x 6 W
Supported formats from SD card	MP3, WMA

Troubleshooting

Speaker cannot pair and doesn't play music.
Please check the specifications / user manual (mobile or computer) to see if Bluetooth is enabled on the device.
Speaker doesn't play music from the microSD card.
Ensure that the SD has been properly formatted and check if the audio files are in the format supported by the MusiCan1 (MP3/WMA). The problem may also be due to an incompatibility issue with the SD card. We recommend formatting the SD card in FAT 32.
Cannot tune into a station in FM radio mode.
Ensure the speaker is in a place where an FM signal can be received. Please attach the Micro USB cable as this works as an external antenna to boost the FM radio signal. Adjust the position and direction of the speaker to get better reception.

Printing errors reserved.
The current version of user guide can be here: https://beat.lamax-electronics.com/MusiCan1/manuals
