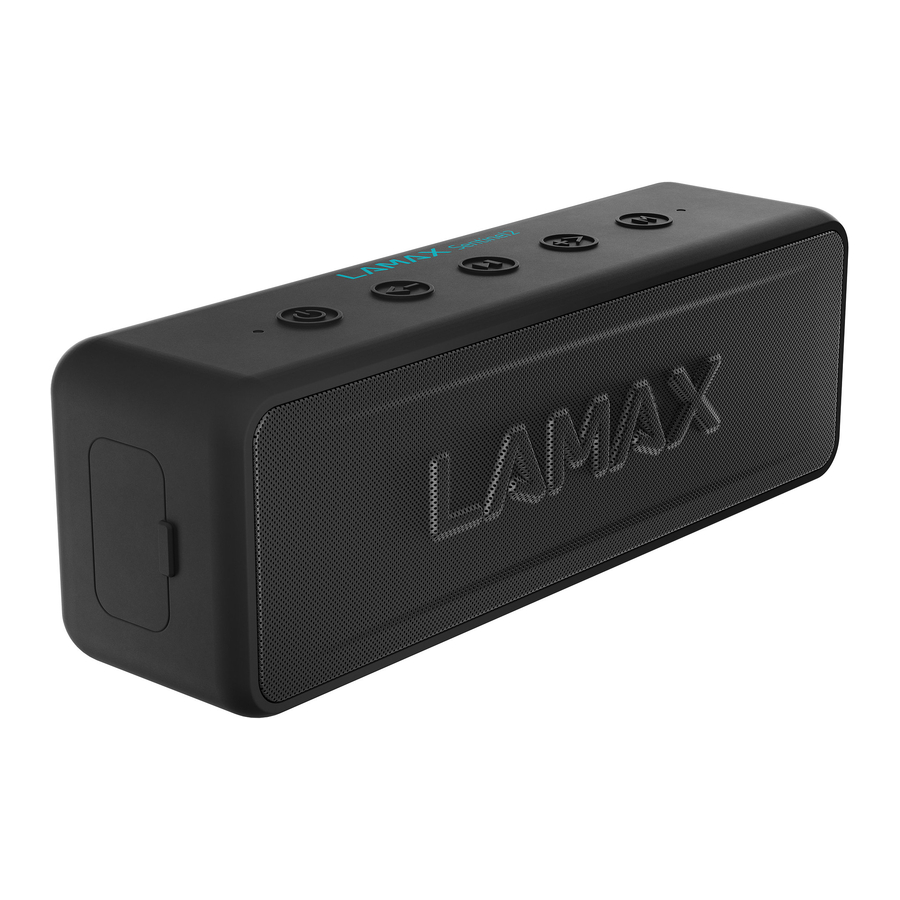

Overview
Controls
| 1 | POWER | Turn on / off (hold) |
| 2 | VOL - | Decrease volume (press), previous track (hold) |
| 3 | PLAY | Play / pause (press) Answer / end call (press), reject call (hold), redial last called number (double tap) |
| 4 | VOL + | Increase volume (press), next track (hold) |
| 5 | MODE | Switch between Bluetooth, audio cable and microSD card (press) Switch TWS pairing on / off (hold) |
Inputs:
| 6 | AUX | For connecting audio cable |
| 7 | USB-C | For charging |
| 8 | Micro SD | For connecting microSD card |
Others:
| 9 | Power on indicator |
| 10 | Status indicator |
| 11 | Microphone |
Main Features
- Total power output of 20 W
- IP67 waterproofing
- Built-in 3600 mAh rechargeable lithium battery that lasts 24 hours on a single charge
- TWS for pairing with a second identical speaker
LED Indicators
Power On Indicators
- Speaker on – white light
- Reaching minimum / maximum volume -–blinks white
- Charging – red light, goes out when fully charged.
- Low battery – flashing red
Status Indicators
- Flashes blue while waiting to be paired and flashes blue during playback.
- It lights blue when the multimedia device is connected in stand-by.
Power On / Off
Hold the POWER button to turn the speaker on. The LED lights up and a beep sounds. Hold down the same button to turn the speaker off.
Pairing
- Press and hold the POWER button to turn the speaker on. The LED flashes blue and the speaker is ready to pair.
- Activate Bluetooth connectivity on your phone or other device. Select „LAMAX Sentinel2" from the list of available devices. If a pairing code is required, enter „0000" and confirm. When pairing is successful, the speaker emits a beep and the LED lights up blue.
- Playback can be controlled either with the paired device or directly on the speaker itself. While playing, the LED flashes blue
TWS
To pair two speakers together, switch on both speakers and make sure they are not paired with any multimedia device. On one of them, which will act as the main one, press and hold the MODE button until you hear a beep. When pairing is successful, a second beep sounds and the main speaker acts as the left channel.
Unpair the speakers by holding down the same MODE button on the main speaker.
Audio Input
Connect to the AUX jack via the supplied audio cable to play music from any device. It is not possible to control songs directly on the speaker when playing back through the audio input.
Handsfree
The handsfree function is activated when you pair your phone via Bluetooth. Press PLAY to answer / end the call, hold down PLAY to reject the incoming call, and tap PLAY twice to redial the last number dialled.
Charging
The speaker can be charged using the included USB cable plugged into a suitable USB device – adapter, PC, power bank. Do not charge the speaker with a higher input voltage than 5V, the speaker may be damaged. When the battery is running low, a beep sounds. When charging the light is red, and when fully charged the red light goes out.
Parameters
| Speaker Parameters | 2 × 10 W, Φ 48 mm, 115 Hz – 15 KHz |
| Battery | Li-Ion 3600 mAh |
| Playback Time | Up to 24 hours |
| Charging Time | 3 hours |
| Playback Options | Bluetooth, 3.5mm audio, microSD card |
| Wireless Technology | Bluetooth 5.0 |
| Waterproofing | IP67 – can withstand immersion up to 1m in standing water for 30 min. |
| Dimensions | 186 × 62 × 50 mm |
| Weight | 525 g |
The current version of user guide can be here: https://beat.lamax-electronics.com/Sentinel2/manuals/
