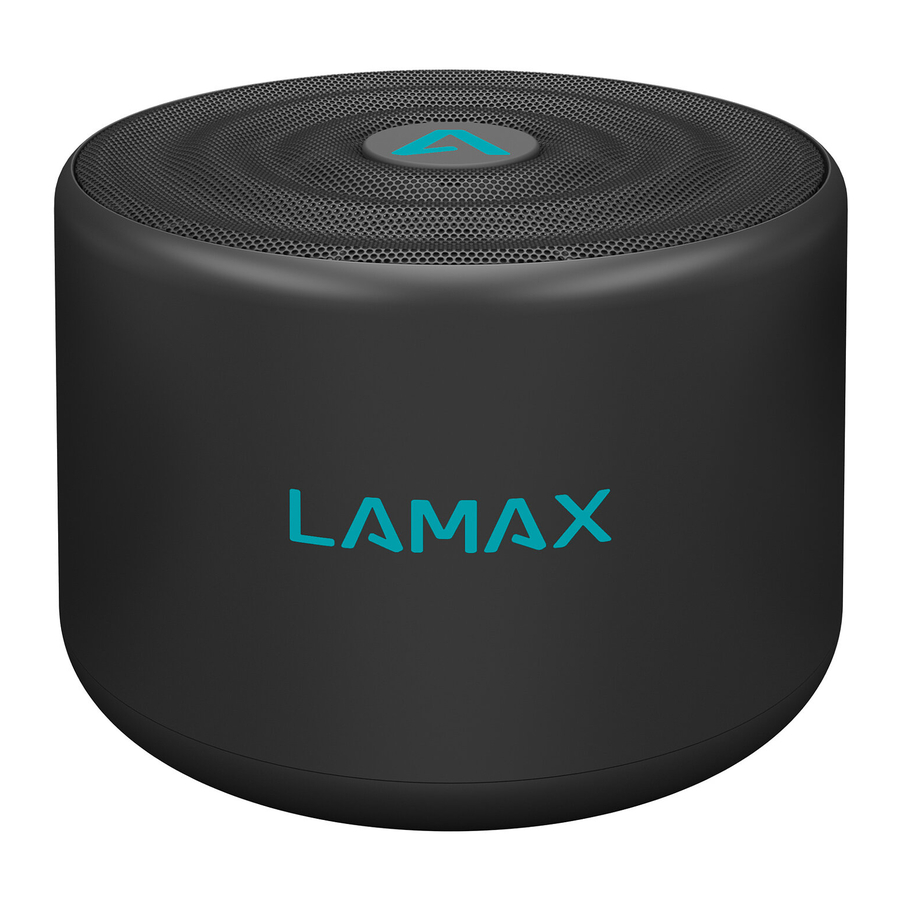

LAMAX Sphere 2 - Bluetooth Speaker Manual

Overview

Controls

1. POWER: On/off (hold), Switch music source (Bluetooth, USB flash disk, Micro SD card, FM) (press)
2. PLAY: Play/pause (press)
3. VOL +: Volume up (press), next track (hold)
4. VOL –: Volume down (press), previous track (hold)
5. HANDSFREE: Answer/end call (press), reject call (hold), redial last number called (double-press in quick succession)

Other

6. Microphone
7. Micro SD slot
8. USB flash disk
9. Micro USB

Charging indicator

Lights up red when charging, off when fully charged.

On/off

To turn on the speaker, hold down the POWER button. The LED lights up and an audio alert sounds. Hold down the same button to turn off the speaker.

Pairing

1. Press and hold the POWER button to turn on the speaker. The LED starts flashing blue and the speaker is ready to pair.
2. Activate Bluetooth connectivity on your phone or similar device. Select „LAMAX Sphere2" from the list of available devices. If a pairing code is required, enter „0000" and confirm. Upon successful pairing, the speaker will beep and the LED will turn blue.
3. Playback can be controlled either with a paired device or by directly using the speaker. During playback, the LED will flash blue.

TWS

To pair two speakers with each other, switch on the two speakers, and ensure that they are not paired with any other multimedia devices. On one of them, which will be the main one, press and hold the PLAY button until a beep sounds. After they are successfully paired, a second beep will sound and the main speaker will act as the left channel. To unpair the speakers, hold down the same PLAY button on the main speaker.

Handsfree

When the phone is paired via Bluetooth, the Handsfree function is activated. To answer / end a call, press HANDSFREE; reject an incoming call by holding down HANDSFREE; quickly press HANDSFREE twice to redial the last number dialed. If you want to switch an ongoing call back to your phone, press the POWER button.

FM radio

You can use any USB / Micro USB cable that serves as an antenna to amplify the signal. Use the POWER button to switch to FM radio. Hold down the PLAY button to start automatic station search. When the search is completed, hold VOL + and VOL - to switch between stations.

Charging

The speaker can be charged using the included USB cable from a suitable USB device – e.g., an adapter, PC, or power bank. Do not charge the speaker with an input voltage higher than 5V, as the speaker may be damaged. An audio alert will sound when the battery is running low. The LED lights up red during charging. When fully charged, the red LED switches off.

Printing errors reserved. The current version of the user manual can be downloaded here: https://www.lamax-electronics.com/downloads/
