LAMAX Sounder2 Play - Bluetooth Speaker Instructions

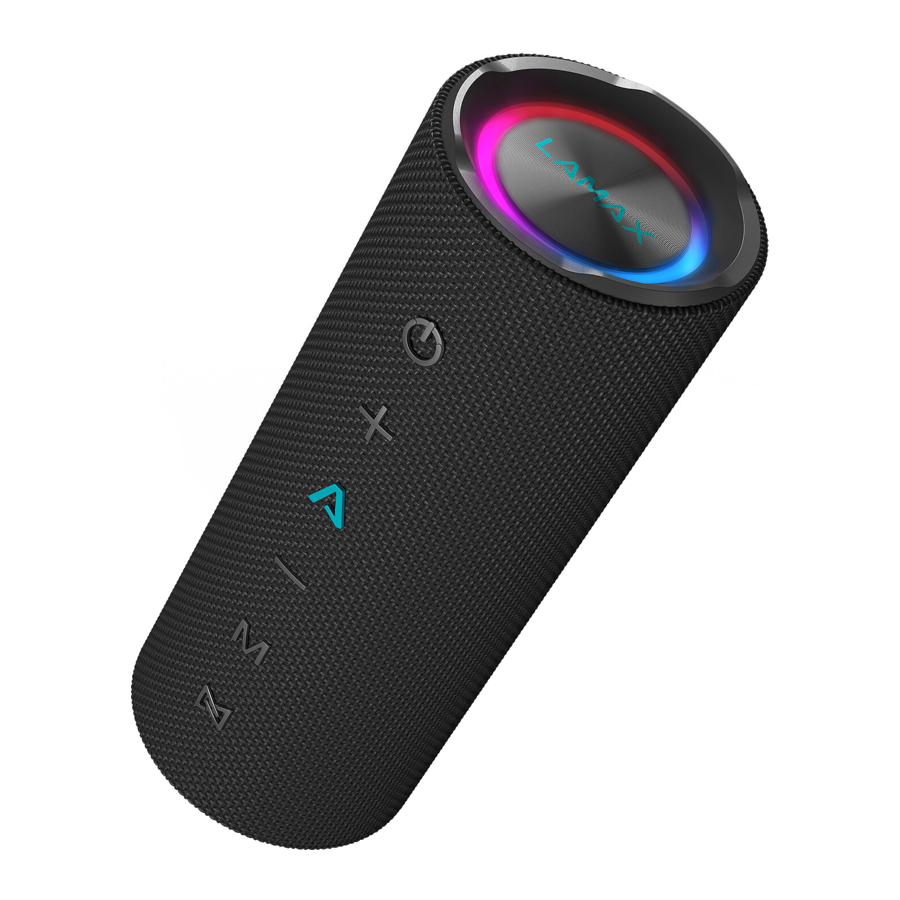

Parts and Features

Controls

1	POWER	Power on/o (hold) Switch backlight modes (press)
2	VOL +	Increase volume (press) Next track (hold)
3	LAMAX PLAY	Play / Stop (press) Activate virtual assistant (hold) Answer / End call (press) Reject call (hold) Power speaker o (long hold)
4	VOL -	Decrease volume (press) Previous track (hold)
5	MODE	Toggle music sources (Bluetooth, microSD card and AUX), (press) Factory settings (long hold)
6	TWS	TWS mode on/o (press) Disconnect from paired device (hold)

Others

LED
Microphone
AUX
Power supply input
MicroSD card slot

LED indicators when pairing

Flashing blue – speaker is ready for pairing

Glows blue – speaker is paired

Flashes blue-white – speaker is ready for TWS pairing

On/Off

To turn on the speaker, hold down the POWER button. The LED will light up and an audible signal will sound. Hold the same button to turn the speaker off.

Pairing

Turn on the speaker by holding down the POWER button. The LED will flash blue indicating the speaker is ready to pair.
Activate the Bluetooth connection on your phone or other device. Select „LAMAX Sounder2 Play" from the list of available devices. When pairing is successful, the speaker will beep and the LED will turn blue.

If there are pairing problems, reset the speaker by holding the MODE button for 6 seconds. Then proceed as described in step 1. of the Pairing section.

TWS

To pair two speakers with each other, turn on both speakers and make sure they are not paired with a multimedia device. Press the TWS button on the speaker you select as the main speaker. An audio signal will sound and the LED will flash blue and white. After a short time, the other speaker will beep, the LED will turn blue and automatically connect to the main speaker. Then pair the main speaker with your multimedia device as described in step 1 in the Pairing section. The main speaker will function as the left channel and is used to control the call functions.

To unpair the speakers, press the TWS button on the main speaker. Pairing this speaker with other LAMAX models using LAMAX BeatShare® is only possible if the Sounder2 Play is the main speaker.

Switching between music sources

Press the MODE button to switch between Bluetooth, microSD card and AUX sources. By connecting a microSD card or the included 3.5mm audio cable, the speaker automatically switches to the appropriate mode. When playing via the audio input, you cannot control the songs directly on the speaker.

Charging

Flashing red – speaker battery has almost run out
Glows red – speaker is charging
LED off – speaker is charged

The speaker can be charged using the included USB cable from a suitable USB device – adapter, PC, or power bank. Do not charge the speaker with an input voltage and current higher than 5 V/2 A as this may damage the speaker.

Specifications

Speaker parameters	2 × 12 W, Φ 48 mm, 115 Hz – 20 KHz
Batteries	Li-Ion 3600 mAh
Playback time	Volume 50% – 24 h (with backlight o ) Volume 80% – 15 h (with backlight o )
Charging time	4 hours
Wireless technology	Bluetooth 5.3, range up to 18 m
Supported codecs	SBC
Playback options	Bluetooth, AUX, microSD card
Memory card – supported formats	WAV/MP3/FLAC/APE
Memory card – supported capacity	up to 64 GB
Water resistance	IP67
Dimensions	186 × 74 × 74 mm
Weight	518 g
