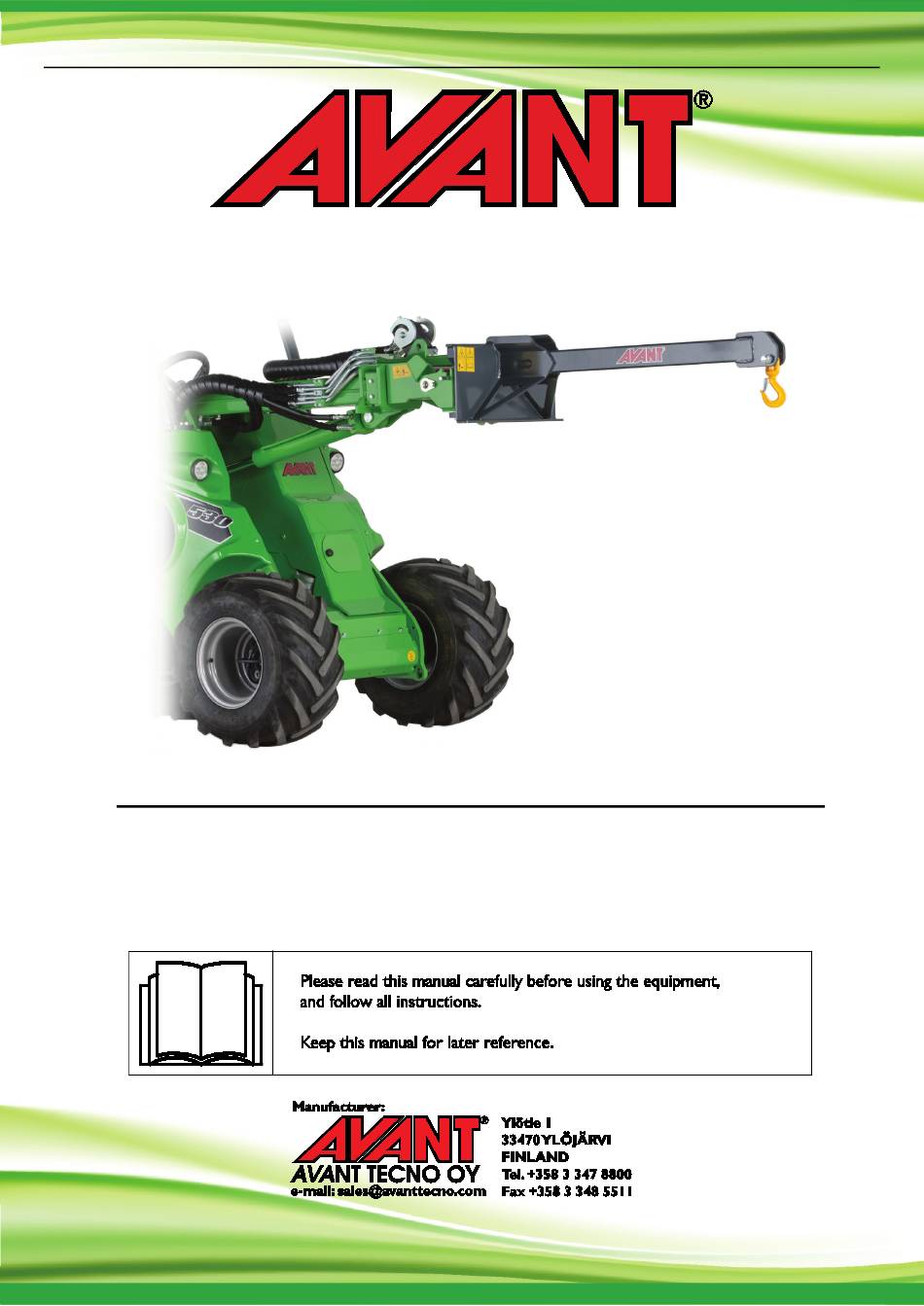

Jib boom 2023 1
Operator's Manual for Attachment
Jib boom
Product number
A428481
www.avanttecno.com
A433743 2023 1 EN 2019-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A428481 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A428481

Summary of Contents for AVANT A428481

  • Page 1 English Jib boom 2023 1 Operator's Manual for Attachment Jib boom Product number A428481 www.avanttecno.com A433743 2023 1 EN 2019-...
  • Page 2 Jib boom 2023 1...

  • Page 3: Table Of Contents

    Jib boom 2023 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ..........................9 Safe shutdown procedure ............................10 4.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (32) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

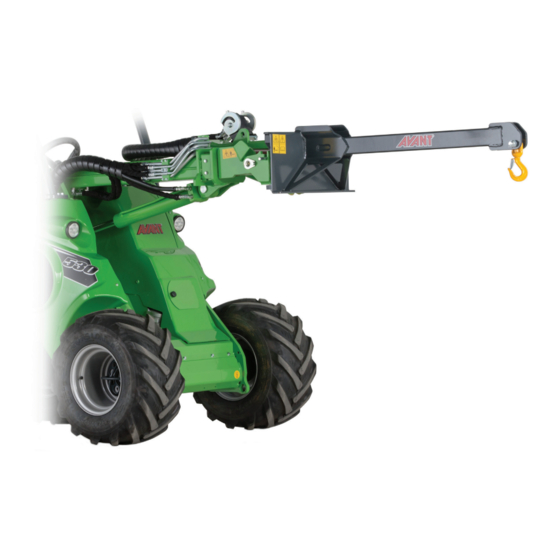

    2. Designed purpose of use The AVANT Jib boom is an attachment that is intended to be used with AVANT compact loaders that are listed in Table 1. The attachment is intended for moving and lifting of loads with the loader, and it offers good visibility to the load.

  • Page 7: Safety Instructions For Using The Attachment

    7 (32) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (32)  Sudden movements can cause the loader to tip over - Operate the controls of the loader in a slow and calm manner. Be careful when lifting load to high level or lifting load from high. Avoid sudden changes in speed or direction to maintain balance of the loader especially when handling heavy loads.

  • Page 9: Personal Protective Equipment

    9 (32) Risk of crushing - Going under the loader boom or an attachment can cause serious injury or death. Never go under the loader boom and prevent others from getting near DANGER lifted boom or attachment. Going under a raised attachment or loader boom is dangerous, as the boom may lower due to loss of stability, mechanical fault or when other person operates the controls of the loader.

  • Page 10: Safe Shutdown Procedure

    10 (32) 3.2 Safe shutdown procedure Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off.

  • Page 11: Technical Specifications

    Jib boom): Rated Operating Capacity: Depends on the loader model. See Rated operating capacity on page 18 Compatible AVANT loaders: See Table 1 on page 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment.

  • Page 12: Lifting

    3 A428519 Attachment identification plate Table 4 - Jib boom - Main components Frame with Avant quick coupling brackets Lifting boom Lifting hook, rotating Pin for lifting hook See page 28 for more information 4.2 Lifting...

  • Page 13: Attaching The Attachment

    Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1:  Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position.
  • Page 14 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.

  • Page 15: Operating The Attachment

    15 (32) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 16: Checks Before Use

    16 (32) 6.1 Checks before use Use only when all pins are locked and secured in place.  Check the general condition of the attachment and the loader.  Check that the lifting hook is intact and that its safety latch is in good condition. Do not use damaged ...

  • Page 17: Operation

    17 (32) 6.3 Operation The Safe Working Load limit for the attachment is 500 kg. Never handle loads that are heavier than 500 kg. The jib boom can get damaged as a result, and the load may fall. The maximum load that can be safely lifted with a loader depends on the load handling capacity of the loader. See Rated operating capacity on page 18 in this manual, and the operator's manual of the loader for more information.

  • Page 18: Rated Operating Capacity

    18 (32) Risk of tipping over - Avoid overload and keep heavy load close to the loader. Keep load close to the ground whenever driving, especially during turns and uneven terrain. Pay attention that a heavy load or long distance between the loader and the WARNING centre of gravity of the load will affect the balance and handling of the loader.
  • Page 19 19 (32) The load chart drawings are illustrations of approximate reach distances and reach height. The load charts provide an estimation of distances to help to determine rated operating capacities, they are not precision drawings of distances.  Risk of dropping of load - Never exceed the Safe Working Load of the attachment.

  • Page 20: Rated Operating Capacity - 400-600 Series

    20 (32) 6.4.1 Rated Operating Capacity - 400-600 series Table 5 - Jib boom A428481 - Rated Operating Capacity - Avant 423 Position of loader boom AVANT loader model 190 kg 160 kg 140 kg 120 kg 50% ROC 160 kg...
  • Page 21 280 kg 250 kg 50% ROC 310 kg 270 kg 240 kg 220 kg Table 7 - Jib boom A428481 - Rated Operating Capacity - Avant 528, 530 Position of loader boom AVANT 528, 530 loader model 320 kg 280 kg...
  • Page 22 22 (32) Table 8 - Jib boom A428481 - Rated Operating Capacity - Avant 635, 640 Position of loader boom AVANT 635, 640 loader model 330 kg 290 kg 250 kg 230 kg 50% ROC 280 kg 250 kg 220 kg...
  • Page 23 23 (32) Table 10 - Jib boom A428481 - Rated Operating Capacity - Avant 645i, 650i Position of loader boom AVANT 645i, 650i loader model 360 kg 310 kg 280 kg 250 kg 50% ROC 310 kg 270 kg 240 kg...

  • Page 24: Rated Operating Capacity - 700 Series

    24 (32) 6.4.2 Rated Operating Capacity - 700 series Table 11 - Jib boom A428481 - Rated Operating Capacity - Avant 735 Position of loader boom AVANT loader model 390 kg 340 kg 300 kg 270 kg 50% ROC 340 kg...
  • Page 25 25 (32) Table 12 - Jib boom A428481 - Rated Operating Capacity - Avant 745, 750 Position of loader boom AVANT 745, 750 loader model 450 kg 390 kg 350 kg 310 kg 50% ROC 390 kg 340 kg 300 kg...

  • Page 26: Rated Operating Capacity - 800 Series

    26 (32) 6.4.3 Rated Operating Capacity - 800 series Table 14 - Jib boom A428481 - Rated Operating Capacity - Avant 850, 860i Position of loader boom AVANT 850, 860i loader model 600 kg 520 kg 450 kg 390 kg...

  • Page 27: Working On Uneven Ground

    27 (32) 6.5 Working on uneven ground Extra caution is needed when using the equipment on inclined terrains and slopes. Drive slowly especially on inclined, uneven, or slippery surfaces, and avoid sudden changes in speed or direction. Operate the controls of the loader with careful and smooth movements.

  • Page 28: Maintenance And Service

    28 (32) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground.

  • Page 29: Maintenance Of The Hook

    If any of the points listed above is not satisfactory during inspection the damaged parts must be replaced, or the attachment must be taken to an authorized Avant service. If the hook or its pin need to be replaced it must meet the original strength and load specifications. Use only original parts to ensure that the hook mets the original specifications.

  • Page 30: Warranty Terms

    30 (32) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 31 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Nostopuomi; Avant-kuormaajan työlaite Lyftbom; arbetsredskap för Avant lastare A428481 Jib boom; attachment for Avant loaders 25.8.2023 Ylöjärvi, Finland Jani Käkelä, Toimitusjohtaja / Verkställande direktör /...
