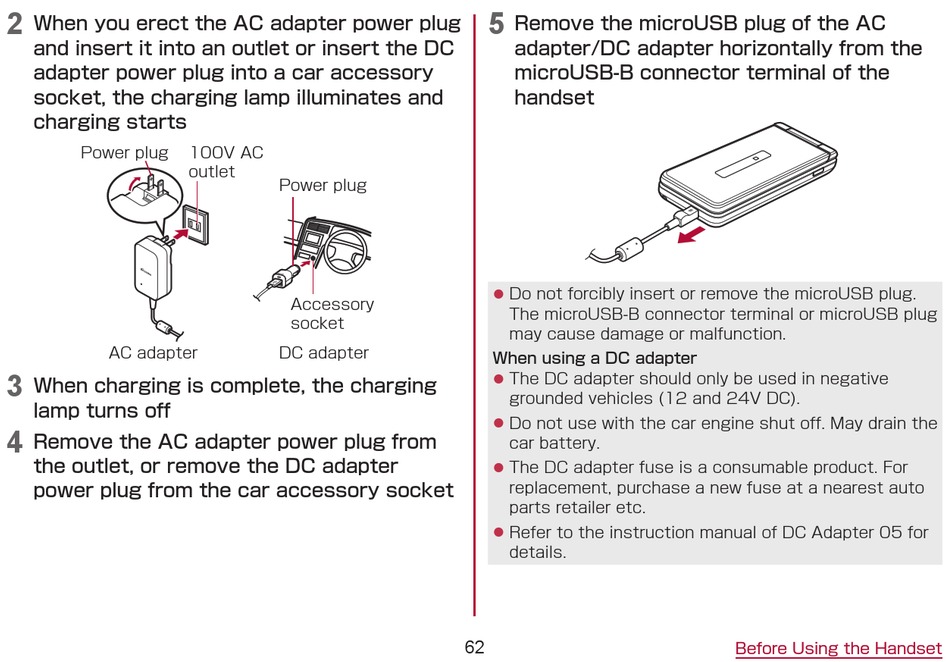

2
When you erect the AC adapter power plug
and insert it into an outlet or insert the DC
adapter power plug into a car accessory
socket, the charging lamp illuminates and
charging starts
Power plug
AC adapter
3
When charging is complete, the charging
lamp turns off
4
Remove the AC adapter power plug from
the outlet, or remove the DC adapter
power plug from the car accessory socket
100V AC
outlet
Power plug
Accessory
socket
DC adapter
5
Remove the microUSB plug of the AC
adapter/DC adapter horizontally from the
microUSB-B connector terminal of the
handset
Do not forcibly insert or remove the microUSB plug.
z
The microUSB-B connector terminal or microUSB plug
may cause damage or malfunction.
When using a DC adapter
The DC adapter should only be used in negative
z
grounded vehicles (12 and 24V DC).
Do not use with the car engine shut off. May drain the
z
car battery.
The DC adapter fuse is a consumable product. For
z
replacement, purchase a new fuse at a nearest auto
parts retailer etc.
Refer to the instruction manual of DC Adapter 05 for
z
details.
62 Before Using the Handset
