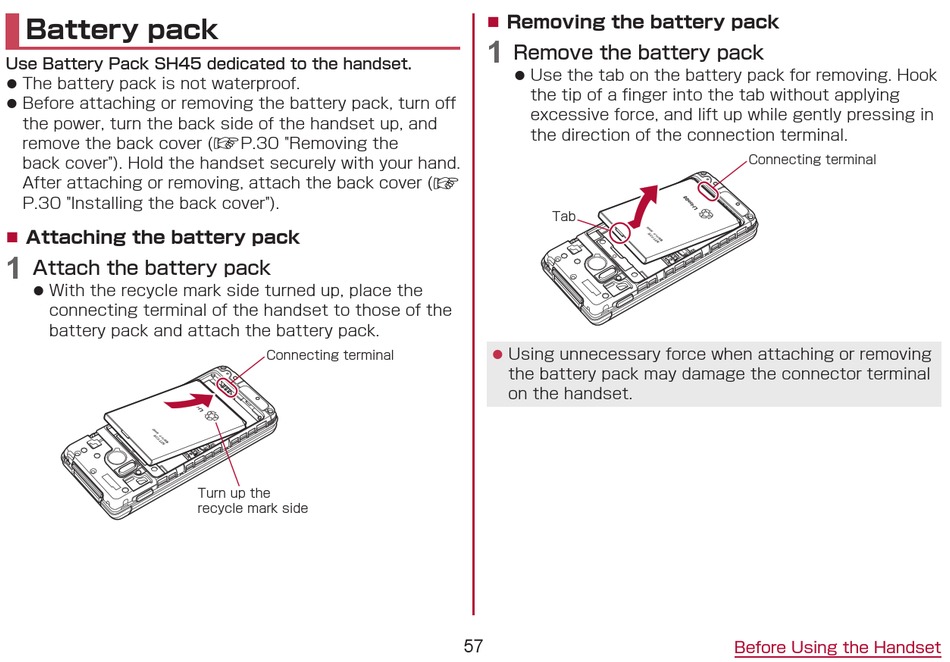

Battery pack

Use Battery Pack SH45 dedicated to the handset.
z The battery pack is not waterproof.
z Before attaching or removing the battery pack, turn off
the power, turn the back side of the handset up, and
remove the back cover (
back cover"). Hold the handset securely with your hand.
After attaching or removing, attach the back cover (
P. 30 "Installing the back cover").
Attaching the battery pack
„
1
Attach the battery pack
z With the recycle mark side turned up, place the
connecting terminal of the handset to those of the
battery pack and attach the battery pack.
☞
P. 30 "Removing the
Connecting terminal
Turn up the
recycle mark side
Removing the battery pack
„
1
Remove the battery pack
z Use the tab on the battery pack for removing. Hook
the tip of a finger into the tab without applying
excessive force, and lift up while gently pressing in
the direction of the connection terminal.
☞
Tab
Using unnecessary force when attaching or removing
z
the battery pack may damage the connector terminal
on the handset.
57
Connecting terminal
Before Using the Handset
