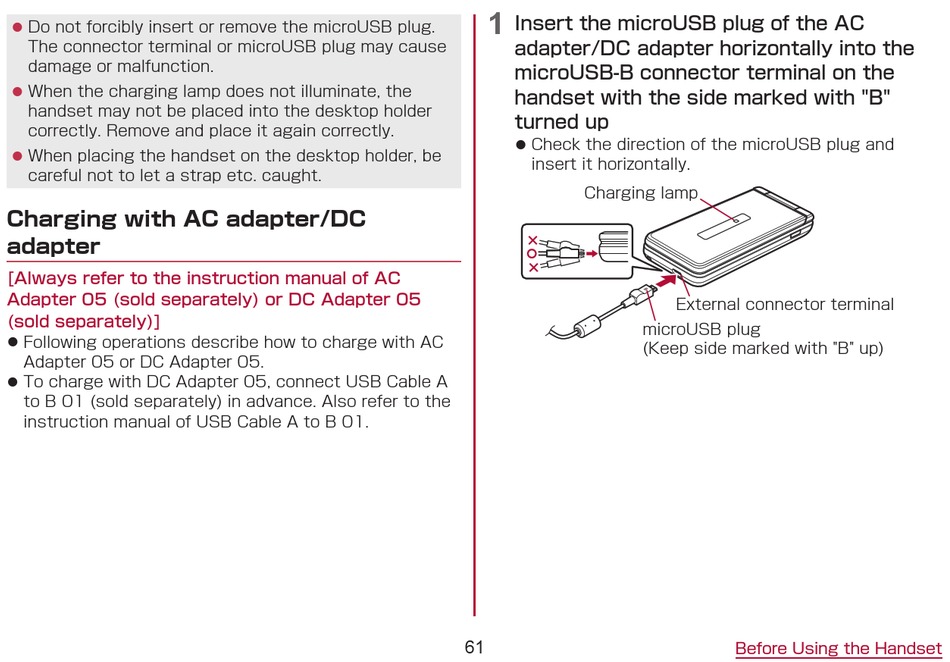

Docomo SH-03L Instruction Manual page 63

Do not forcibly insert or remove the microUSB plug.
z
The connector terminal or microUSB plug may cause
damage or malfunction.
When the charging lamp does not illuminate, the
z
handset may not be placed into the desktop holder
correctly. Remove and place it again correctly.
When placing the handset on the desktop holder, be
z
careful not to let a strap etc. caught.
Charging with AC adapter/DC
adapter
[Always refer to the instruction manual of AC
Adapter 05 (sold separately) or DC Adapter 05
(sold separately)]
z Following operations describe how to charge with AC
Adapter 05 or DC Adapter 05.
z To charge with DC Adapter 05, connect USB Cable A
to B 01 (sold separately) in advance. Also refer to the
instruction manual of USB Cable A to B 01.
1
Insert the microUSB plug of the AC
adapter/DC adapter horizontally into the
microUSB-B connector terminal on the
handset with the side marked with "B"
turned up
z Check the direction of the microUSB plug and
insert it horizontally.
Charging lamp
microUSB plug
(Keep side marked with "B" up)
61
External connector terminal
Before Using the Handset
